Артикул: 2CDE281001R0040
· Производитель: ABB
· EAN: 4016779645683

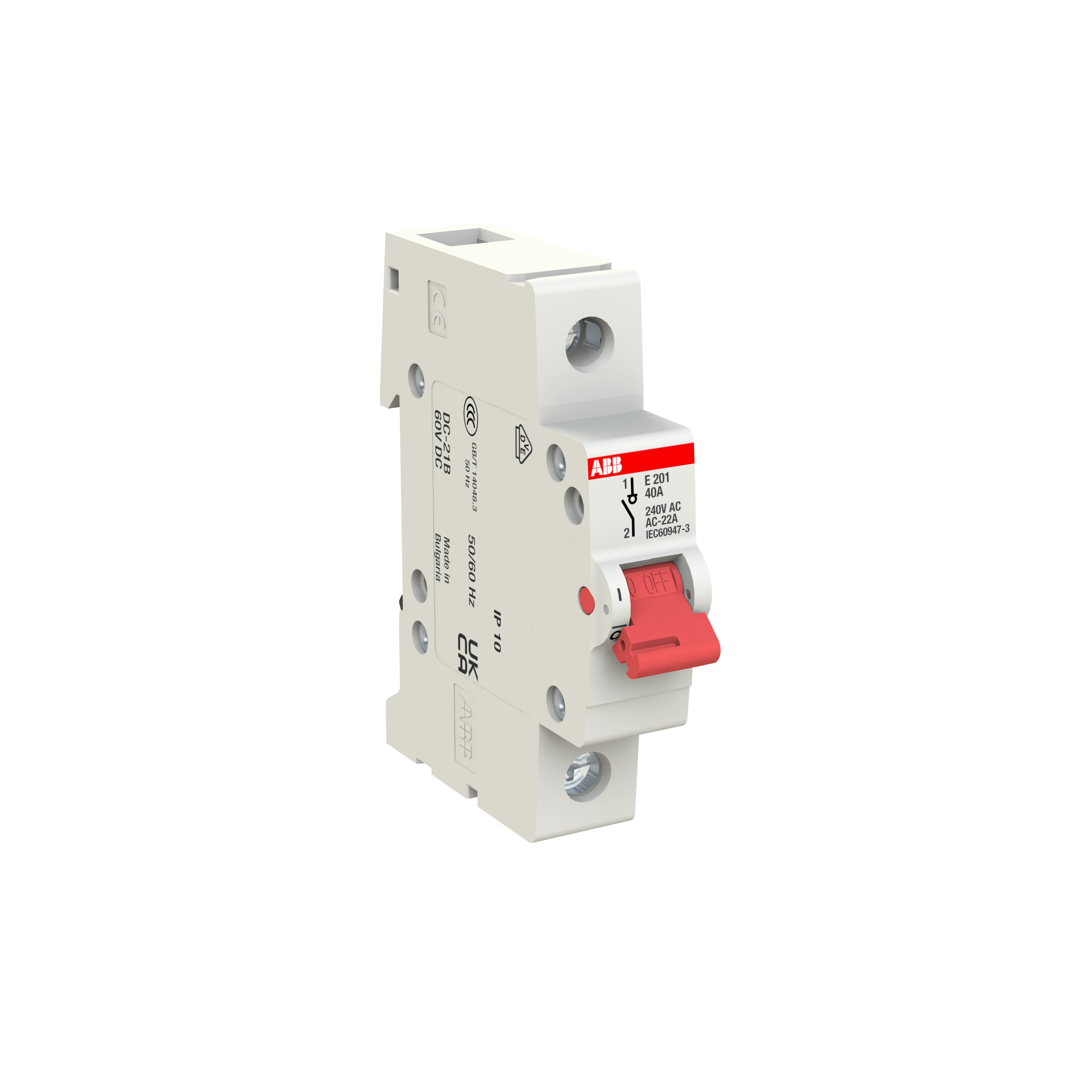

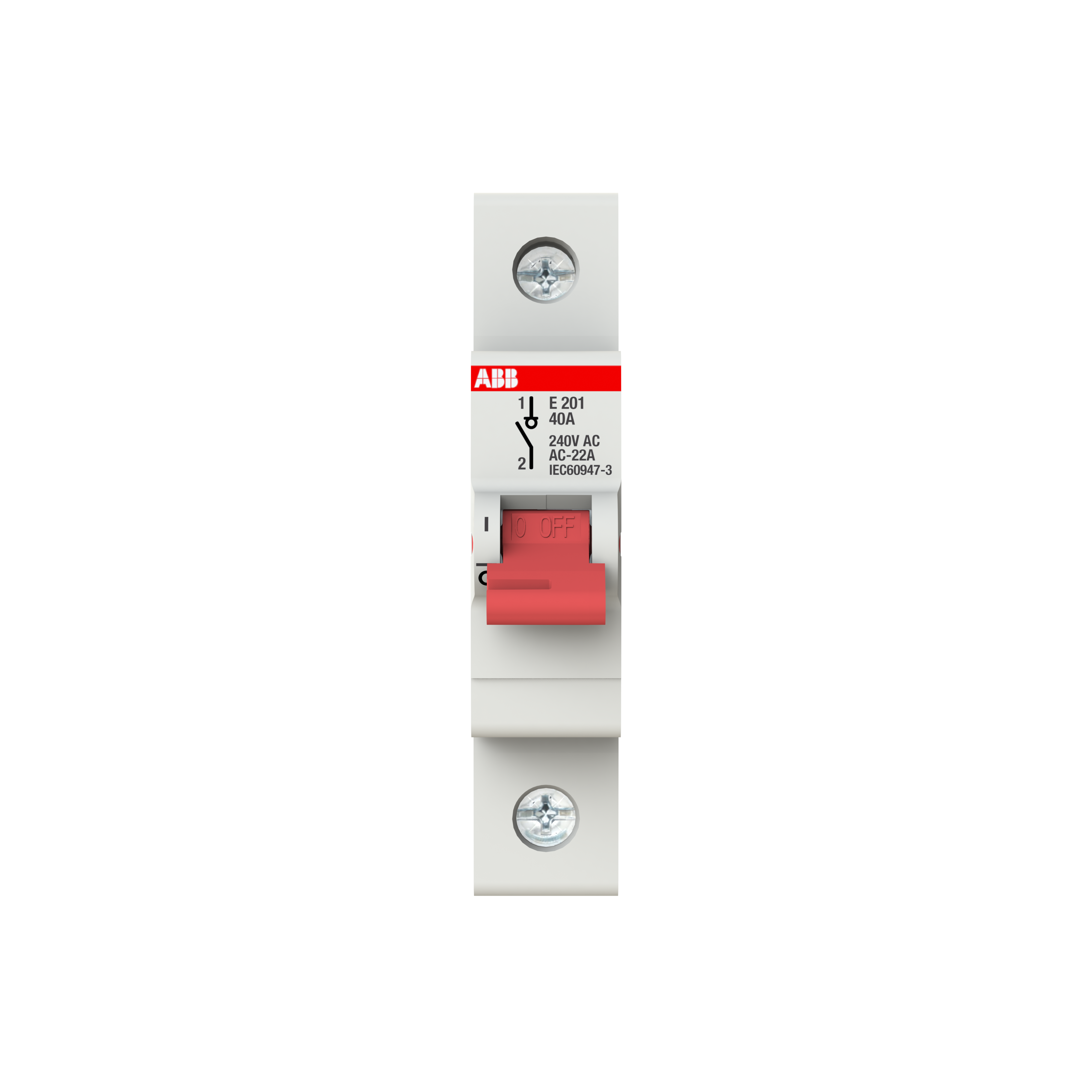

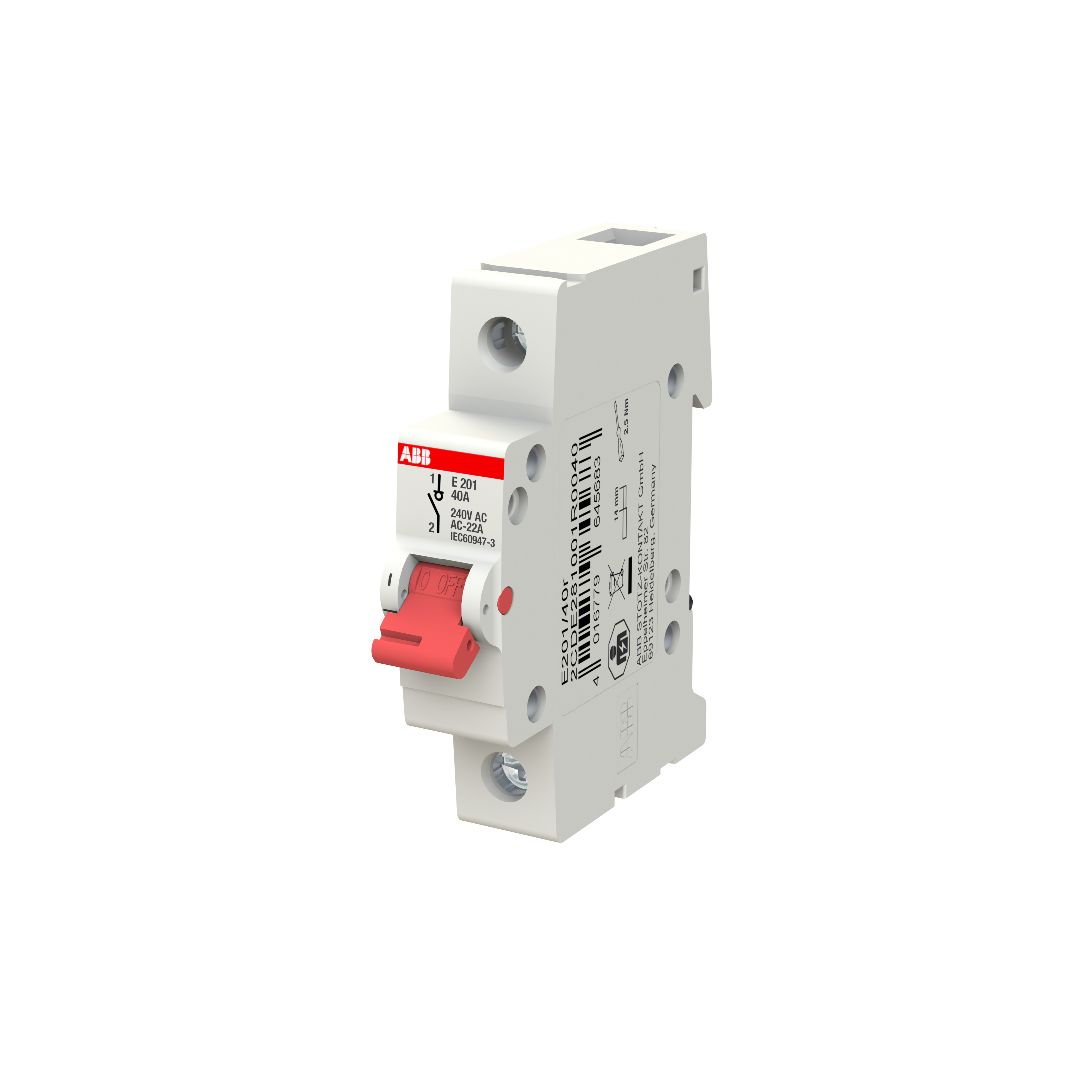

2CDE281001R0040
В наличии на нашем складе
Наличие в РФ
659.00 ₽
в наличии на складе · 1 шт.
Склад в Китае
617.01 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
860.40 ₽
срок ≈4 мес. (122 дн.)
These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized ON/OFF. Approval: VDE, CCC, KEMA
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 617.01 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Наш склад | 659.00 ₽ | В наличии | 1 шт. | — | Заказать |
| Склад в Европе | 860.40 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 868.04 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 949.79 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 950.19 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 958.23 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 984.05 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 048.91 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 086.28 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 395.57 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 1 876.24 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 889.40 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 189.60 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 81.9 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability |
| Number of Poles | 1P |
| Actuator Type | Toggle |
| Screw Terminal Type | Cage Terminal |
| Switch Type | Off |
| Actuator Marking | I / O |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Cover Color | Grey |
| Installation Size | acc. to DIN 43880 3 |
| Wire Stripping Length | 12 mm |
| Terminal Type | Screw Terminals |
| Rated Voltage (Ur) | 230 V, 12 V Minimum |
| Rated Operational Voltage | 230 / 400 V AC |
| Voltage Protection Level ( Up) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 40 A |
| Rated Short-Circuit Capacity | (230 / 400 V AC) 25 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | 2 kA |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 0.7 W, at Rated Operating Conditions per Pole 0.7 W |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 1 |
| Overvoltage Category | IV |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Degree of Protection | IP10 |
| Pollution Degree | 3 |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.5 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.095 kg |
| Built-In Depth (t2) | 70 mm |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 0.995 kg |
| Mounting Type | DIN-Rail |
| ETIM 9 | EC001047 - Selective main line circuit breaker |
| ETIM 10 | EC001047 - Selective main line circuit breaker |
| eClass | V11.0 : 27142301 |
| Object Classification Code | Q |
| Standards | IEC/EN 60947-3 |
| Certification Agency | EN, IEC |
| extended_product_type | E201/40R |
| category_paths | Products > Low Voltage Products and Systems > Modular DIN Rail Products > Command and Signalling Devices > Switch Disconnectors |
