Артикул: 2CDD283101R0025
· Производитель: ABB
· EAN: 4016779904193
2CDD283101R0025
В наличии на нашем складе
Наличие в РФ
2 364.00 ₽
в наличии на складе · 36 шт.
Склад в Китае
1 668.70 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
1 511.64 ₽
срок ≈1 мес. (38 дн.)

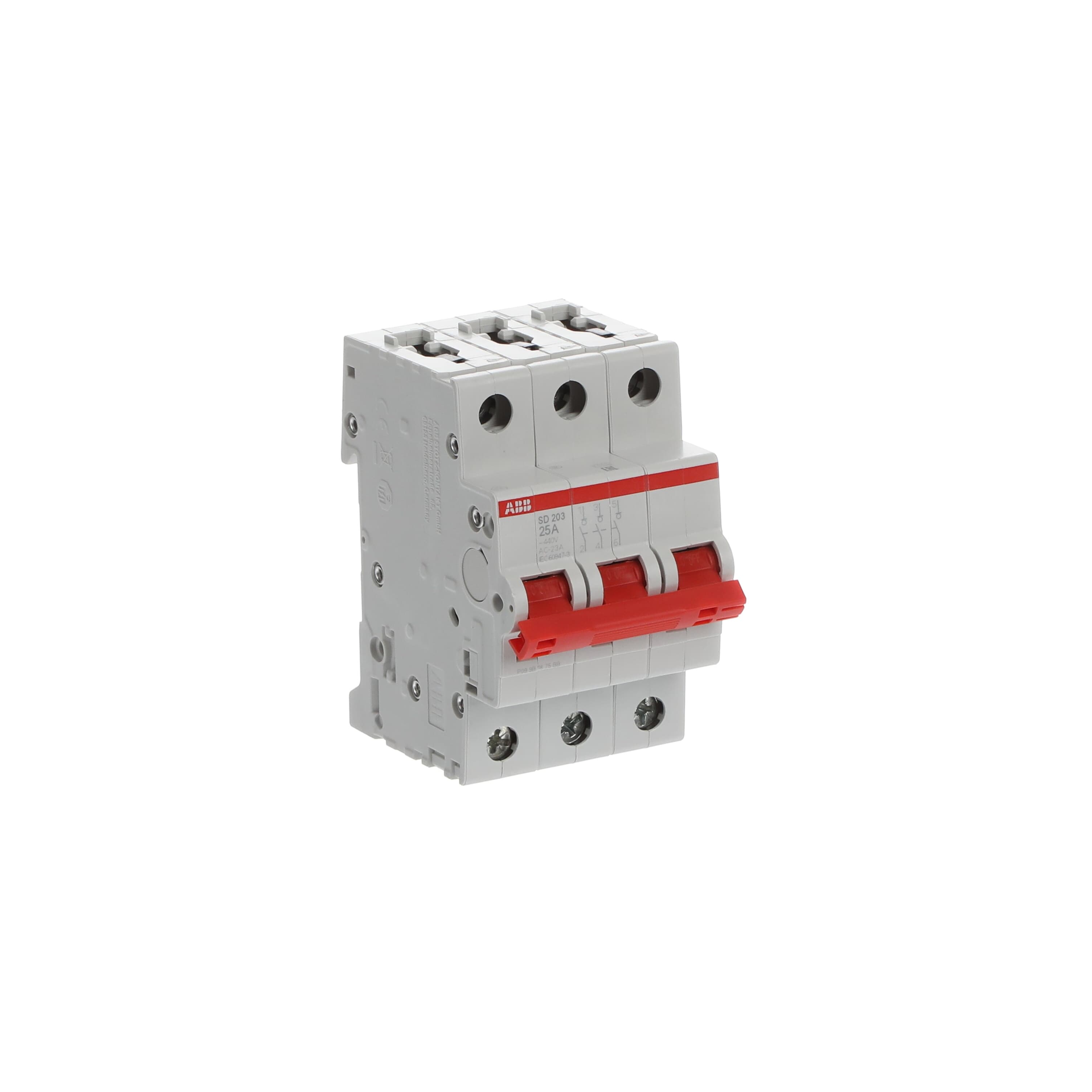

SD203/25 - Switch Disconnector - 3P, 25A
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 1 511.64 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 668.70 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 722.25 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 783.73 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 845.80 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 969.06 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 312.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Наш склад | 2 364.00 ₽ | В наличии | 36 шт. | — | Заказать |
| Склад в Европе | 2 483.49 ₽ | уточняется | под заказ | — | Заказать |
| Склад в России | 3 260.39 ₽ | 5 дн. | 75 шт. | — | Заказать |
| Склад в Европе | 3 561.68 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 931.72 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 85 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability |
| Contact Position Indication | ON / OFF |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Poles | 3P |
| Tightening Torque | 2.8 N·m |
| Utilization Category | Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A) |
| Actuator Type | Toggle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Switch Type | Off |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Red, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Cover Color | Grey |
| Connecting Capacity | Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 3 |
| Terminal Type | Screw Terminals |
| Rated Voltage (Ur) | 440 V, 12 V Minimum |
| Rated Operational Voltage | 440 V AC |
| Operational Voltage | Maximum 462 V AC, Minimum 12 V AC |
| Voltage Protection Level ( Up) | 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 25 A |
| Rated Short-Circuit Capacity | (230 / 400 V AC) 25 kA |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 0.6 W |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 3 |
| Overvoltage Category | III |
| Housing Material | Insulation Group I, RAL 7035 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
| Degree of Protection | IP20, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 52.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.255 kg |
| Built-In Depth (t2) | 69 mm |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.27 kg |
| E-Number (Finland) | 3601638 |
| E-Number (Norway) | 1429488 |
| Mounting Type | DIN-Rail |
| Mounting Position | any |
