Артикул: 2CDD281101R0025
· Производитель: ABB
· EAN: 4016779904070
2CDD281101R0025
В наличии на нашем складе
Наличие в РФ
734.00 ₽
в наличии на складе · 1 шт.
Склад в Китае
557.10 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
504.66 ₽
срок ≈1 мес. (38 дн.)

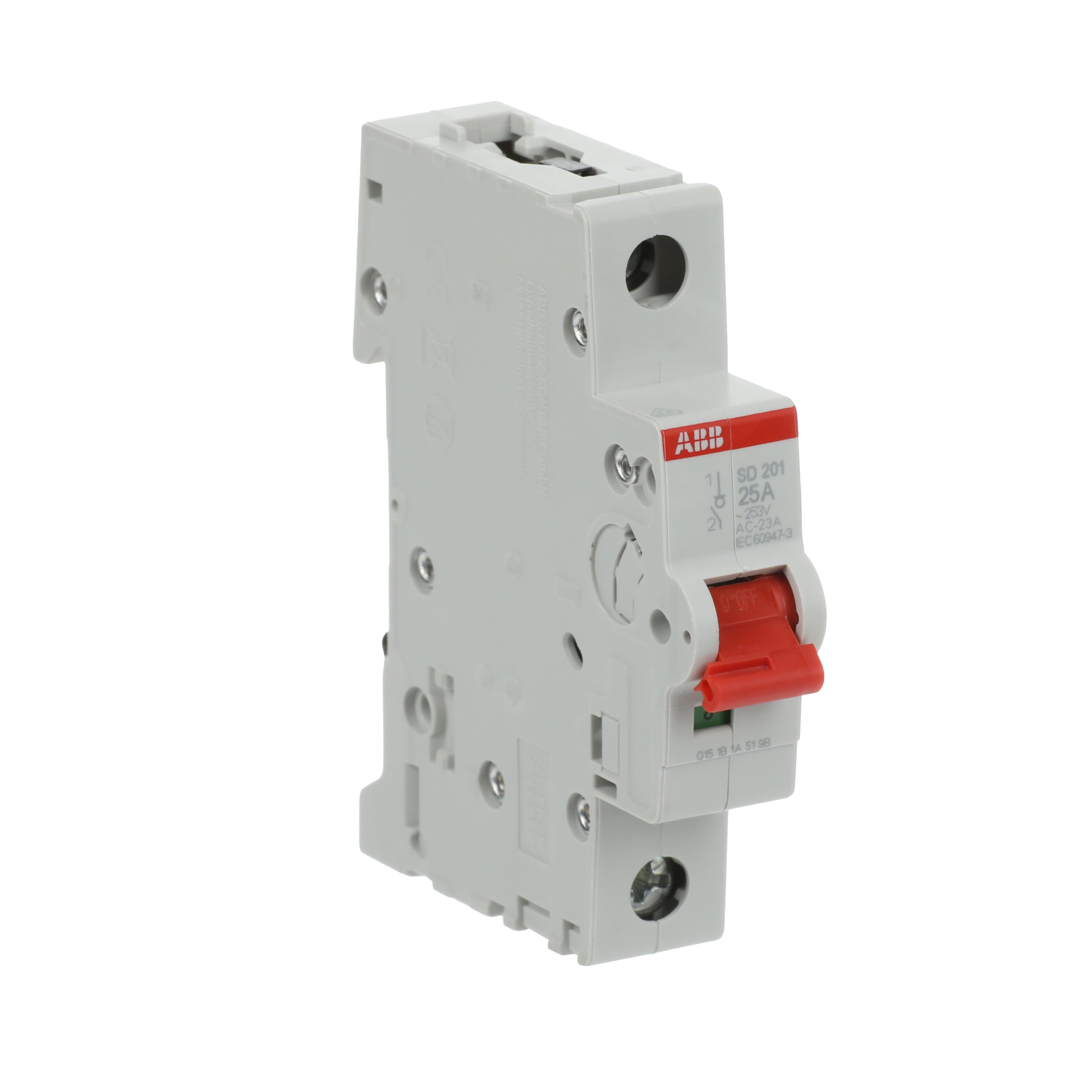

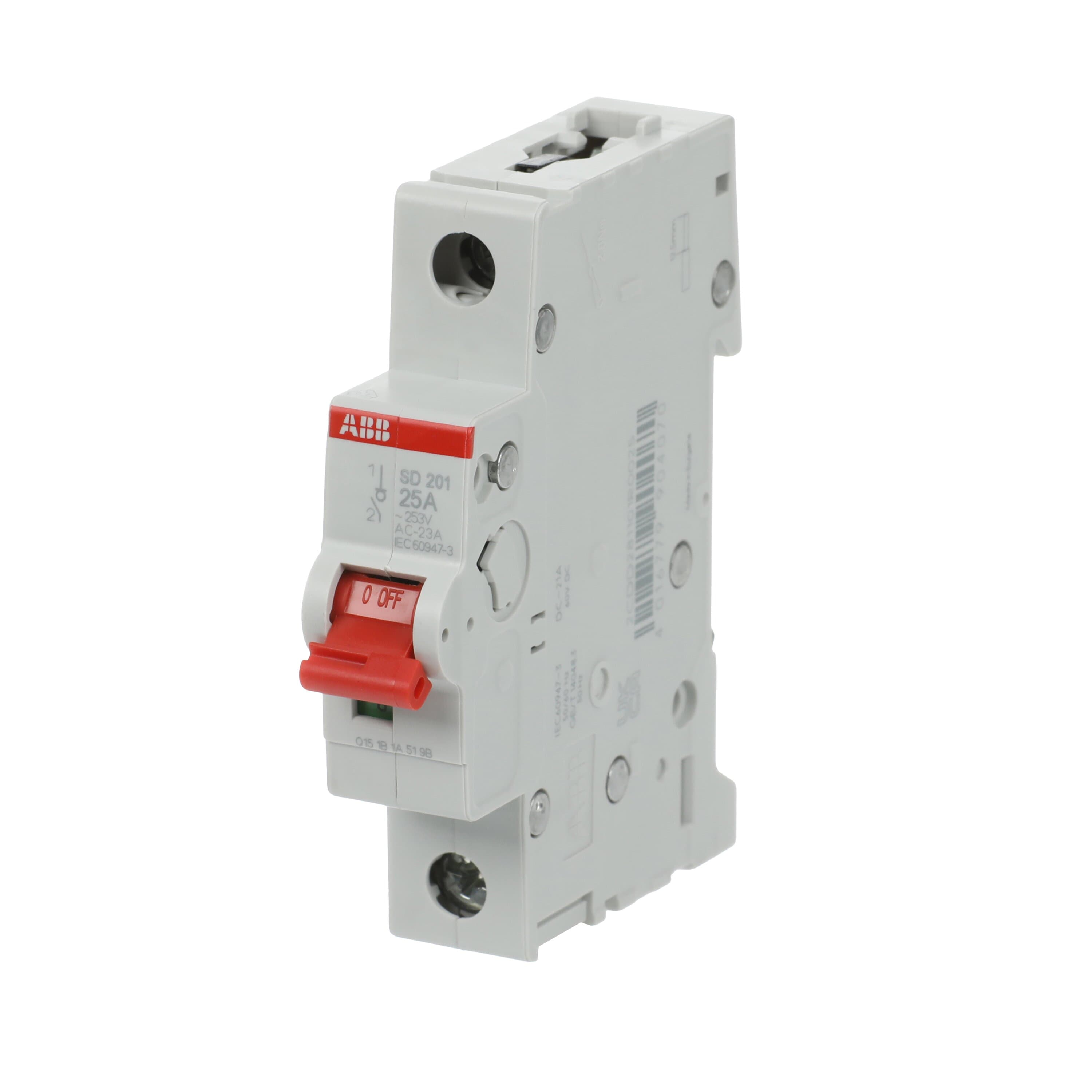

SD201/25 - Switch Disconnector - 1P, 25A
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 504.66 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 557.10 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 574.91 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 595.50 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 616.15 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 657.37 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 698.47 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Наш склад | 734.00 ₽ | В наличии | 1 шт. | — | Заказать |
| Склад в Европе | 829.54 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 1 075.64 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 187.39 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в России | 1 445.35 ₽ | 5 дн. | 4 шт. | — | Заказать |
Характеристики
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 85 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability |
| Contact Position Indication | ON / OFF |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Poles | 1P |
| Tightening Torque | 2.8 N·m |
| Utilization Category | Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A), Switching of resistive loads, including moderate overloads - frequent actuation (DC-21A) |
| Actuator Type | Toggle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Switch Type | Off |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Red, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Cover Color | Grey |
| Connecting Capacity | Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 3 |
| Terminal Type | Screw Terminals |
| Rated Voltage (Ur) | 253 V, 12 V Minimum |
| Rated Operational Voltage | 253 V AC, 60 V DC |
| Operational Voltage | Maximum 266 V AC, Maximum 63 V DC, Minimum 12 V AC |
| Voltage Protection Level ( Up) | 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 25 A |
| Rated Short-Circuit Capacity | (230 / 400 V AC) 25 kA |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Frequency (f) | 50 / 60 Hz, DC |
| Power Loss | at Rated Operating Conditions per Pole 0.6 W |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 1 |
| Overvoltage Category | III |
| Housing Material | Insulation Group I, RAL 7035 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
| Degree of Protection | IP20, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.085 kg |
| Built-In Depth (t2) | 69 mm |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 0.9 kg |
| E-Number (Finland) | 3601624 |
| E-Number (Norway) | 1429476 |
| Mounting Type | DIN-Rail |
| Mounting Position | any |
