Артикул: 1VCF595000R0002
· Производитель: ABB
1VCF595000R0002
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
1 319 769.81 ₽
срок ≈1 мес. (59 дн.)
Склад в Европе
994 366.26 ₽
срок уточняется

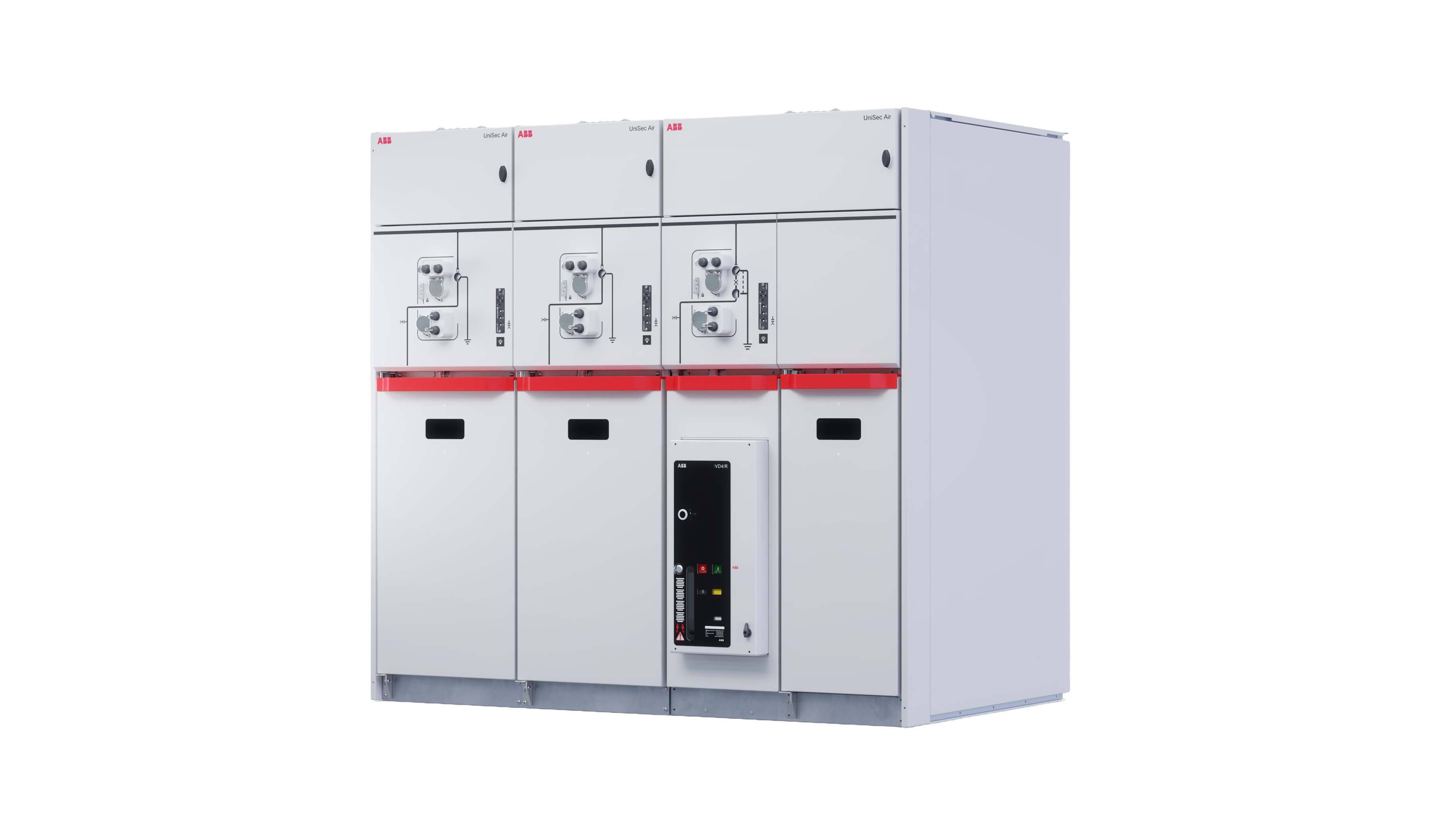

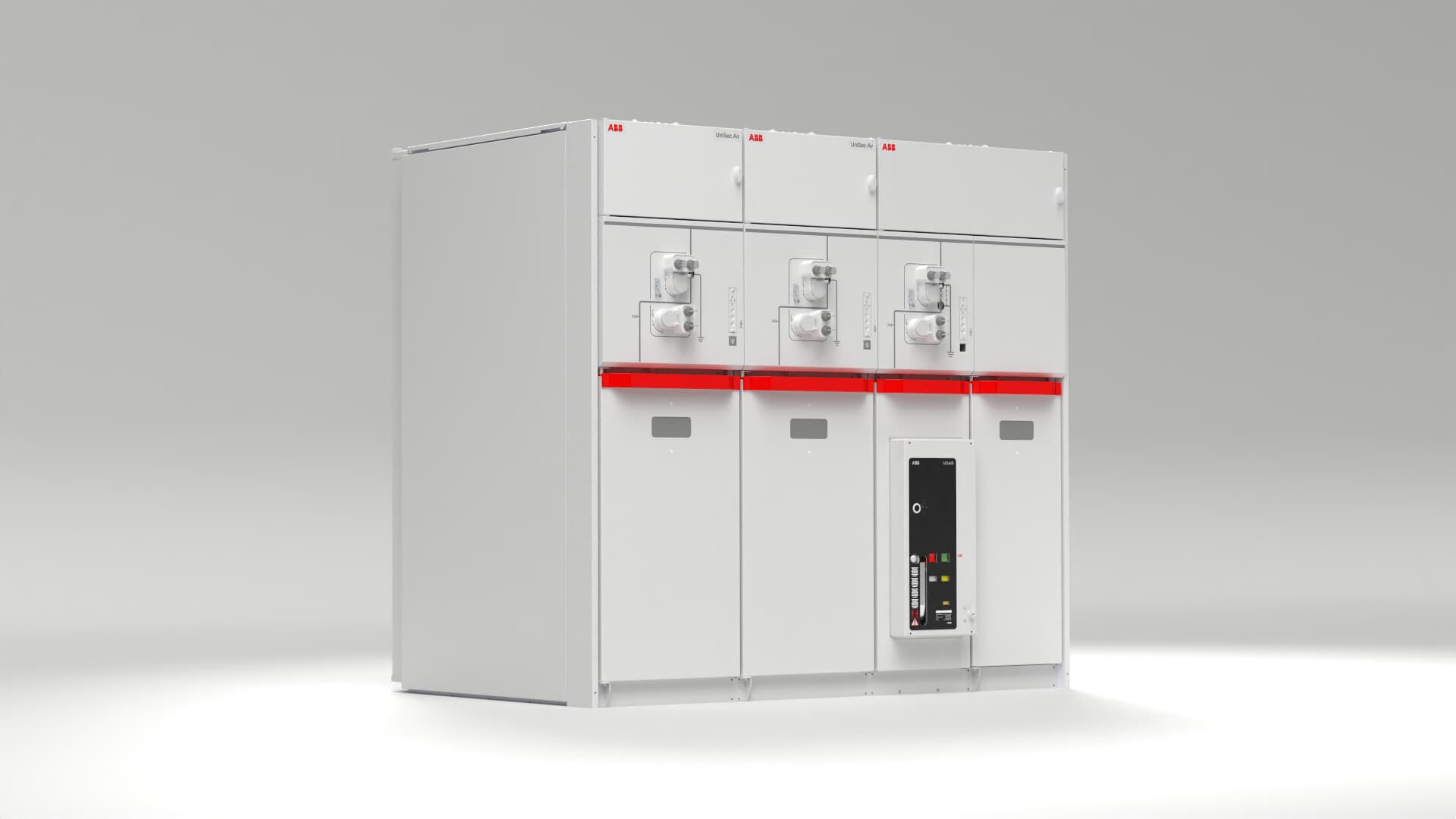

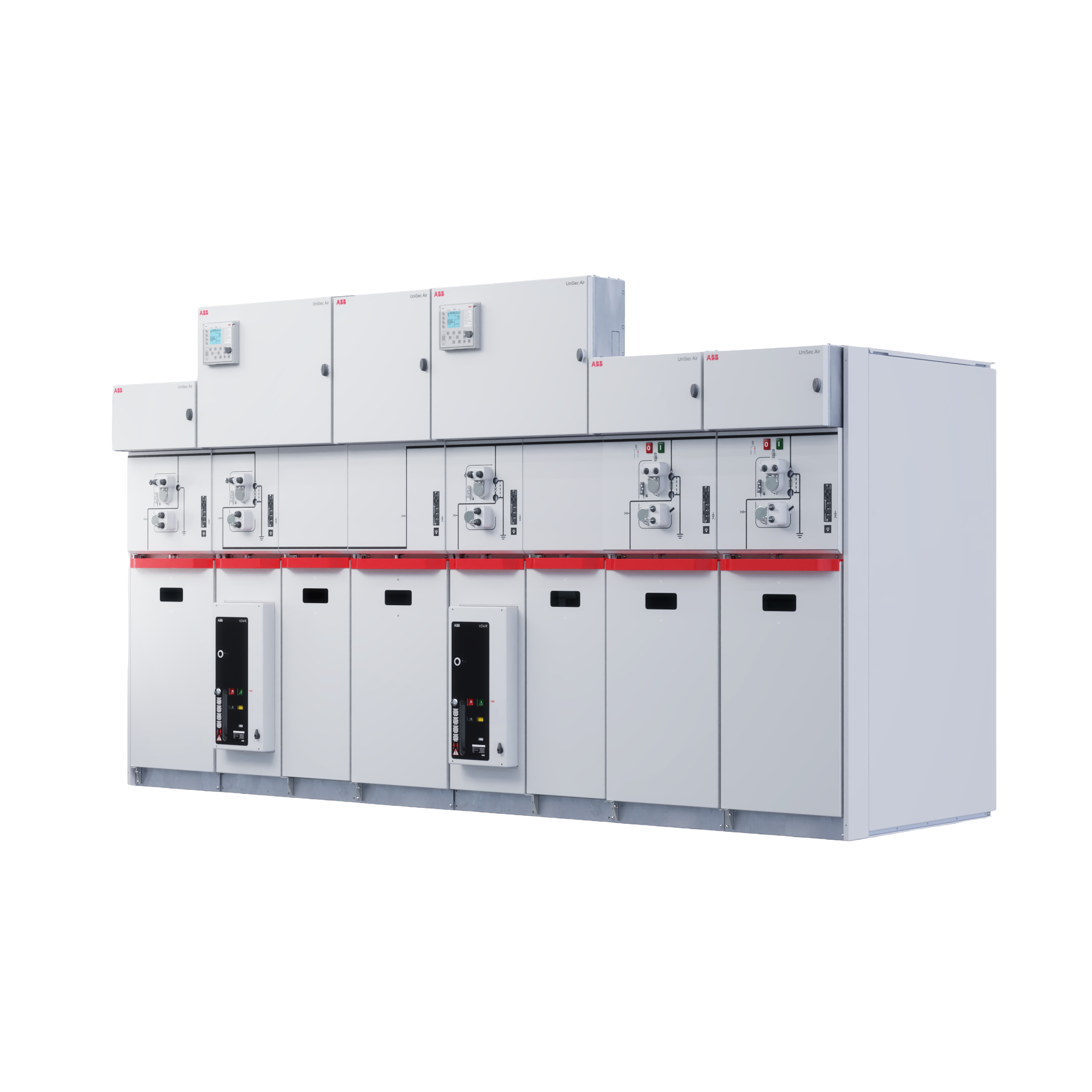

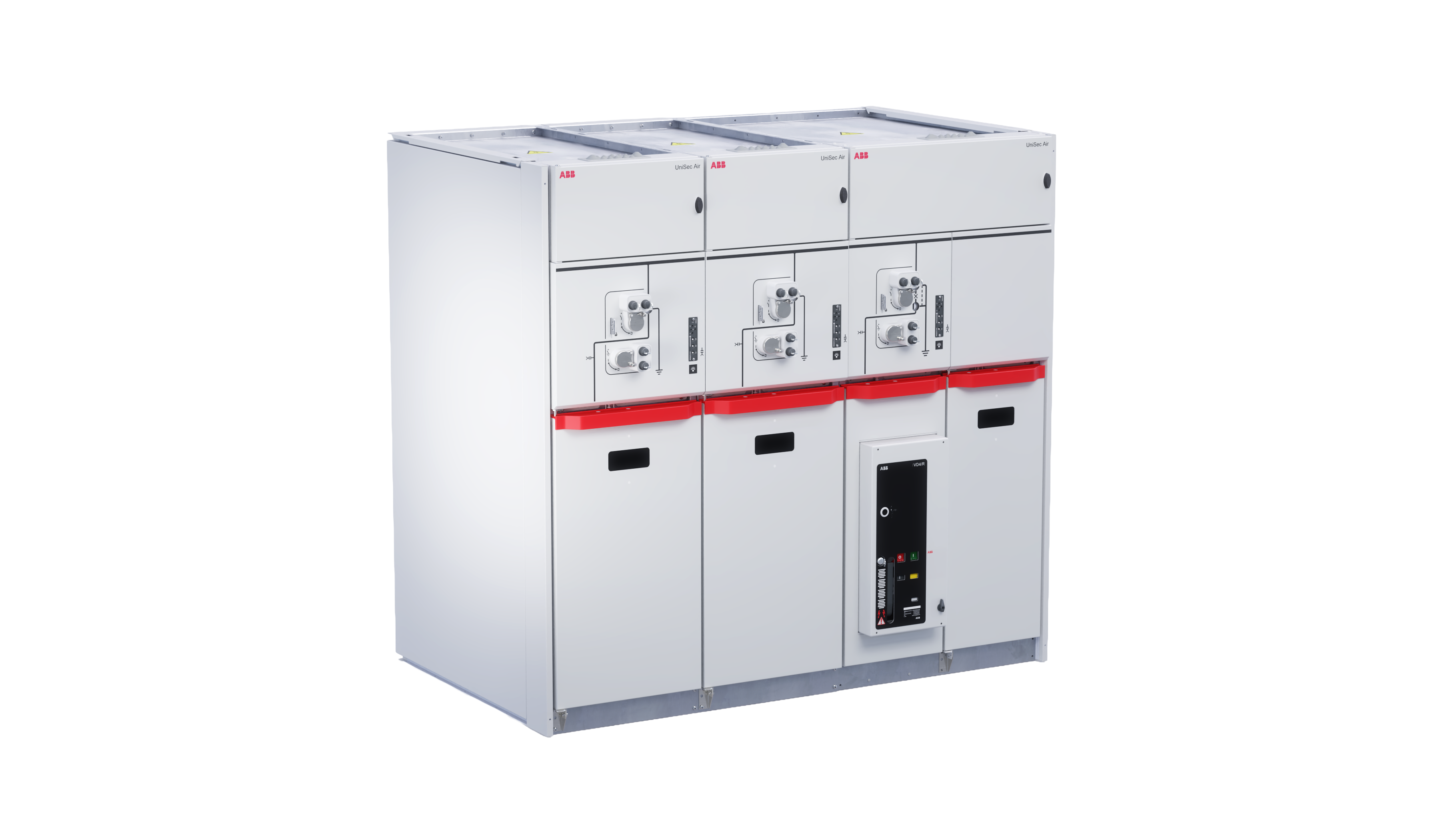

UniSec Air, Type Stock Air-S02 DLR Rising with earthing points
Equipped with anticondensation heater.
Arc proof certified with frontal protection (A-F) up to 16kAx1s
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 994 366.26 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 1 195 556.18 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 319 769.81 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
Характеристики
| Product Name | UniSec Air, Type Stock Air-S02 DLR Rising with earthing points |
| Marketing Description | Pre-engineered switchgear compliant with CEI 0-16 with fast delivery timing, compact dimension, high performances and safety for operators |
| Product Main Type | Medium Voltage Switchgear |
| Insulation Medium Type | Air |
| Product Net Weight | 190 kg |
| Product Net Depth / Length | 1070 mm |
| Product Net Height | 1700 mm |
| Product Net Width | 375 mm |
| Rated Voltage (Ur) | 24 kV |
| Power Frequency Withstand Voltage | 50 kV |
| Rated Impulse Withstand Voltage (Uimp) | 125 kV |
| Rated Current (In) | 630 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 16 kA |
| Maximum Peak Current | 40 kA |
| Rated Frequency (f) | 50 Hz |
| Internal Arc Classification | AF For1s 16 kA |
| Auxiliary Voltage AC/DC | 230 V AC |
| Ambient Temperature | -5 … 40 °C |
| Standards | IEC 62271-200 |
| extended_product_type | UniSec Air STOCK-S02 |
| category_paths | Products > Medium Voltage Products and Systems > Switchgear and Motor Control > IEC - Secondary Air Insulated Switchgear > UniSec Air |
