Q843B620 1SZE430800B0160
Под заказ
RUНаличие в РФ
нет в наличии
CNСклад в Китае
62 378.40 ₽
срок ≈1 мес. (38 дн.)
EUСклад в Европе
56 507.49 ₽
срок ≈1 мес. (38 дн.)
Описание товара

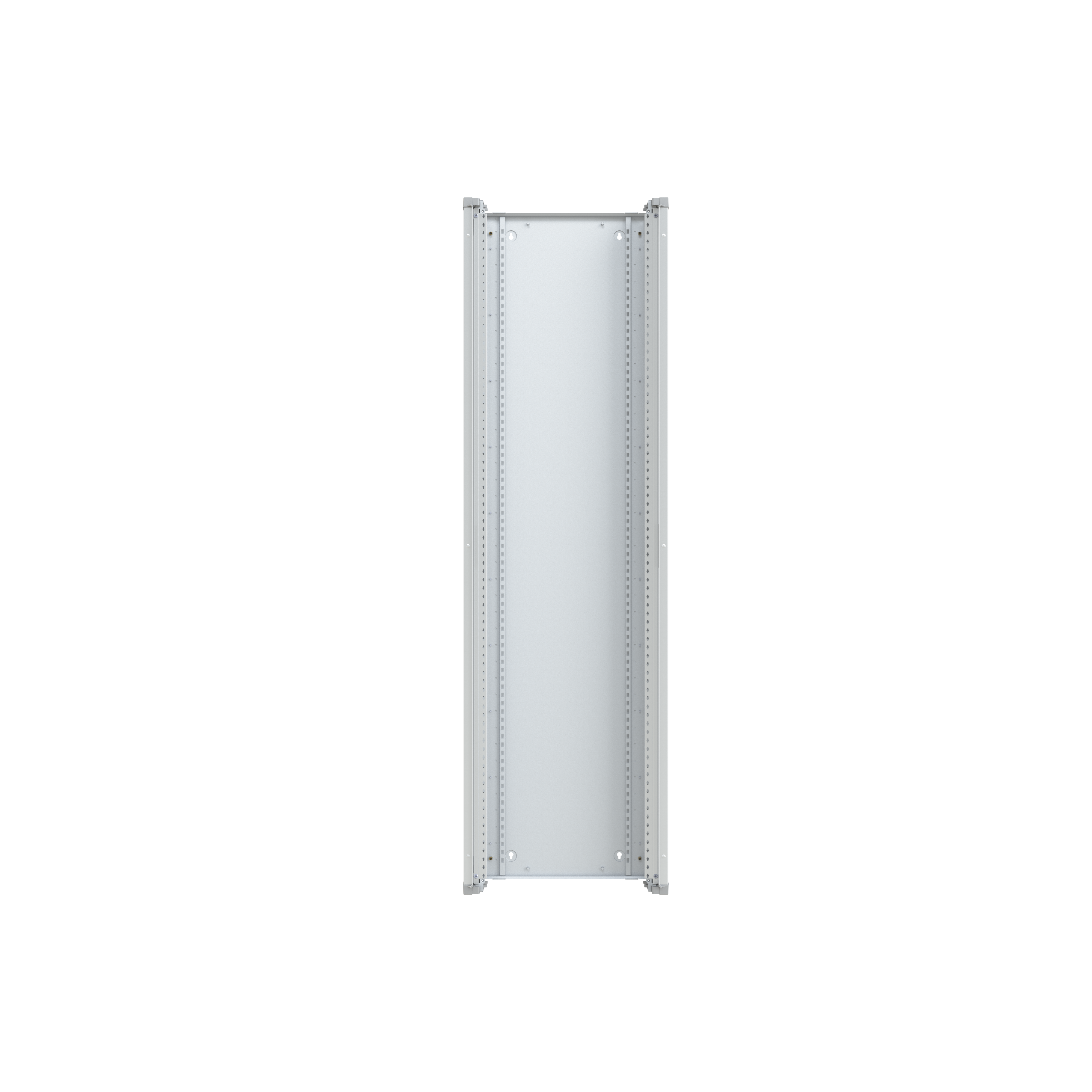

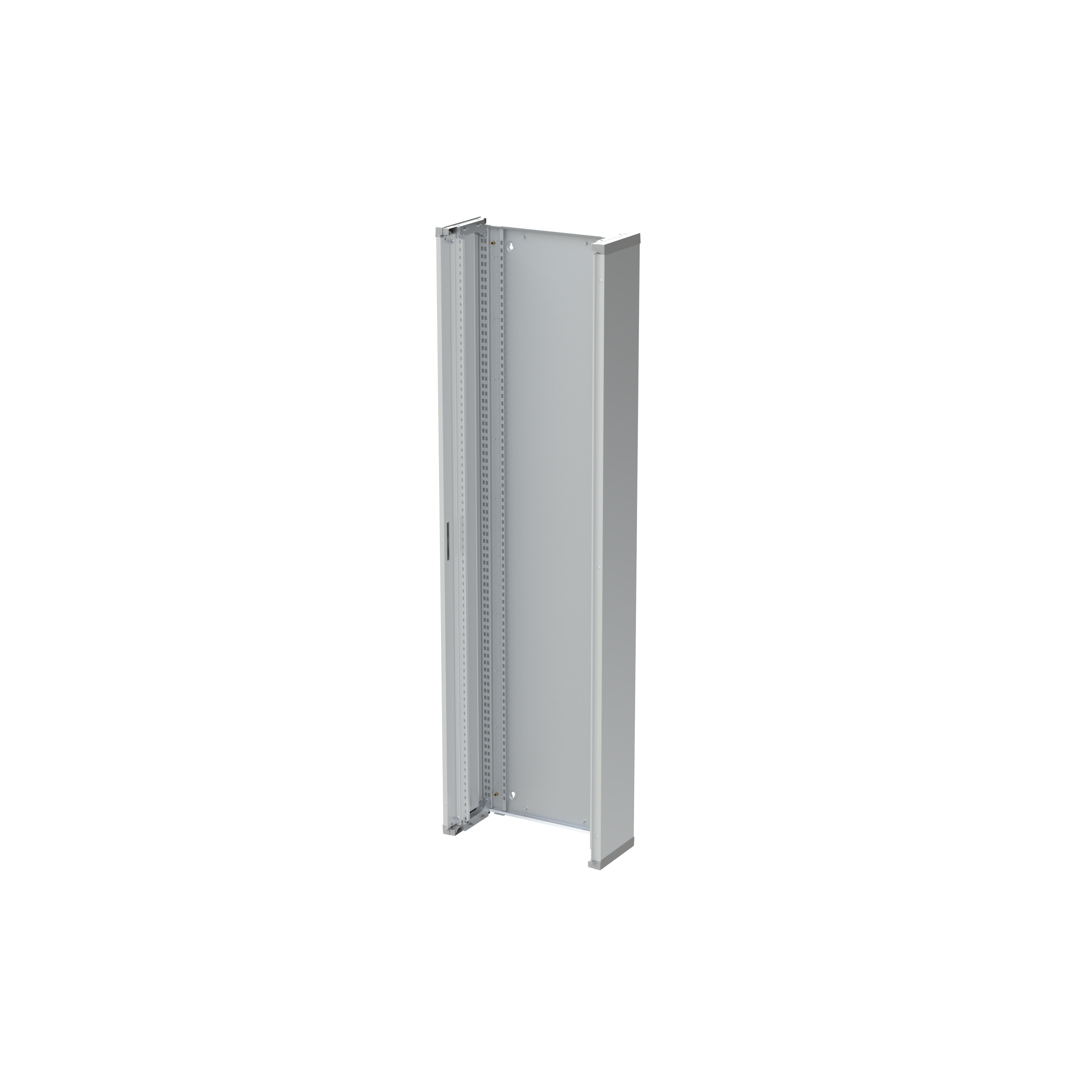

Floor standing cabinet, Type System pro E energy L, Basic structure, Mountingtype: Wallhanging, for indoor installation, Flatpack, Protection form I (Earthed), Protectklass IP43 (with door) IP30, without door, Acc.Norm: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208, IK08 for housing, IK07 for glass-door and knock-out, powdercoated RAL 7035, Sheet steel material, Door needs to be added seperataly, Door can be mounted Left or Right, Door opening 135°, Backplate sheet steel, Top and Bottom need to be added sepretely, Cable entry by flange of big Cable entry, dimensions in mm (H x W x D) 2000 x 600 x 250, No.Mod.DIN 312 (H=150 mm), prepared for extention side-by-side, prepared for interrior fitting System pro E energy Combi (up to 800A)
1Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 56 507.49 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 62 378.40 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 64 383.78 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 66 679.68 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 69 002.92 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 72 951.53 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 73 607.44 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 112 345.36 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 115 232.12 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 124 017.60 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
2Характеристики
| color | Grey |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Power Loss | Δt = 25K - Enclosures 94 W, Δt = 30K - Enclosures 134 W, Δt = 35K - Enclosures 176 W, Δt = 40K - Enclosures 221 W |
| Surface Finishing | Powder coating |
| Material | Steel |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231210 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20221108 |
| WEEE Category | Product Not in WEEE Scope |
| Width in Number of Modular Spacings | 600 |
| Product Net Width | 600 mm |
| Product Net Height | 2049 mm |
| Product Net Depth / Length | 250 mm |
| Product Net Weight | 38.643 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 42.004 kg |
| ETIM 9 | EC002524 - Side-/back panel (enclosure/cabinet) |
| ETIM 10 | EC002524 - Side-/back panel (enclosure/cabinet) |
| eClass | V11.0 : 27182101 |
| Object Classification Code | U |
| extended_product_type | Q843B620 |
| category_paths | Products > Low Voltage Products and Systems > Enclosures > Sub Distribution Boards > Sub Distribution Boards > System pro E energy L |
