Артикул: 1SVR730840R0400
· Производитель: ABB
· EAN: 4016779852241
1SVR730840R0400
В наличии на нашем складе
Наличие в РФ
13 279.00 ₽
в наличии на складе · 1 шт.
Склад в Китае
11 441.31 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
14 181.60 ₽
срок ≈1 мес. (38 дн.)

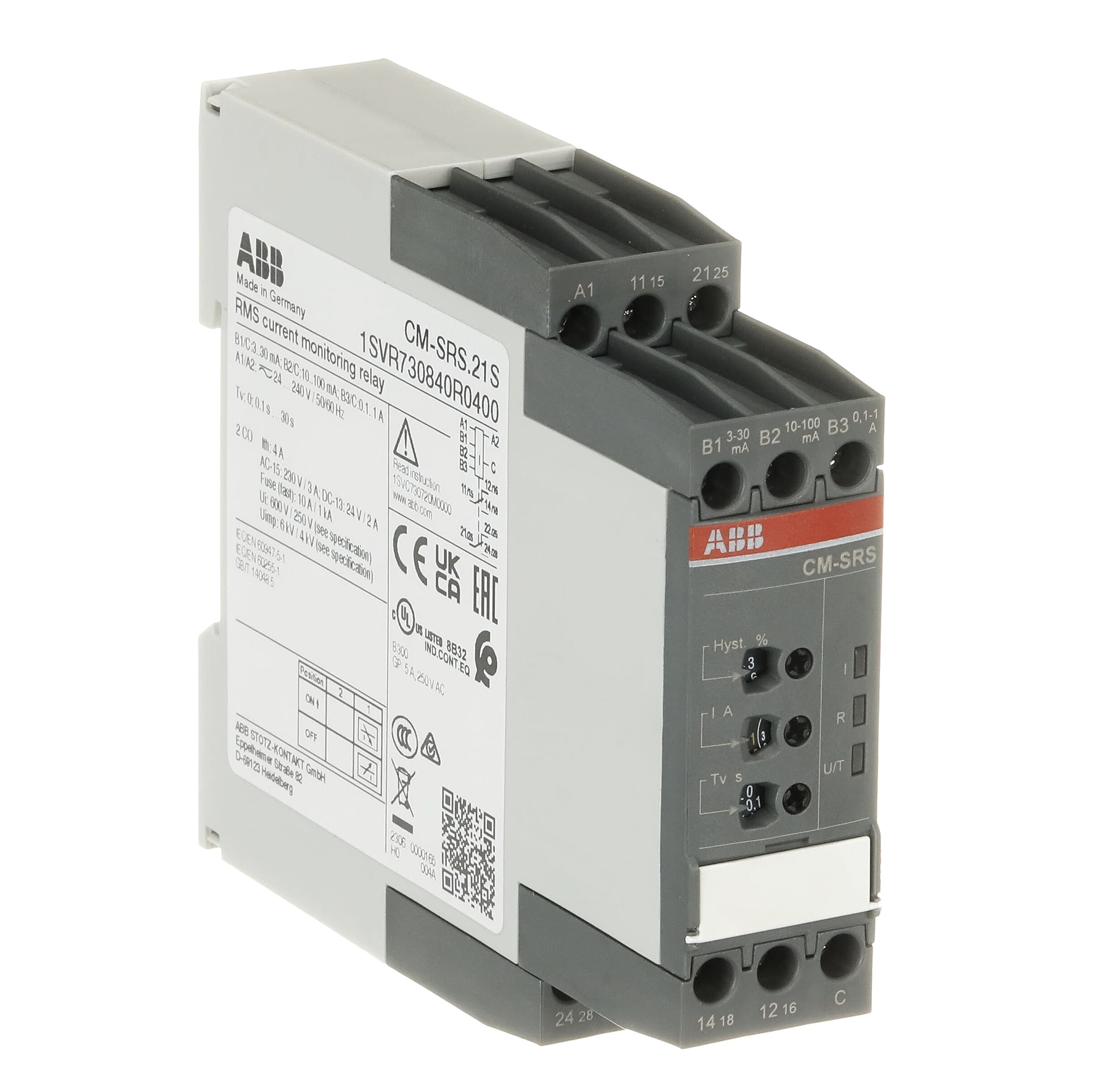

The CM-SRS.21S is a single-functional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 3-30 mA, 10-100 mA and 0.1-1 A and works according to the open-circuit principle. The CM-SRS.21S is configurable for over- or undercurrent monitoring. The hysteresis is adjustable within a range of 3 to 30 % of the threshold value and the tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 11 441.31 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Наш склад | 13 279.00 ₽ | 1 дн. | 1 шт. | — | Заказать |
| Склад в Европе | 14 181.60 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 15 655.02 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 632.82 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 619.61 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 360.91 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 450.22 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 20 597.61 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 22 124.36 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 24 423.00 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 25 820.73 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 31 720.32 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 35 015.93 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 22.5 mm |
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.152 kg |
| Function | Over- or undercurrent monitoring |
| Measuring Range | 3 ... 30 mA, 10 ... 100 mA, 0.1 ... 1 A |
| Time Range | Tripping Delay (ON) 0 s |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | 2 C/O Contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 24 V, 10 mA |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kV, Output Circuit 1 / Output Circuit 2 4 kV, Supply Circuit / Measuring Circuit 6 kV, Supply Circuit / Output Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 600 V, Output Circuit 1 / Output Circuit 2 250 V, Supply Circuit / Measuring Circuit 600 V, Supply Circuit / Output Circuit 250 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm², Flexible with Ferrule 2x 0.5 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm², Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Recommended Screw Driver | 0.8 x 4, 4.5, Pozidriv 1 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-14 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -20 ... +60 °C, Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| ABB EcoSolutions | Yes |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.174 kg |
| Object Classification Code | B |
| ETIM 7 | EC001440 - Current monitoring relay |
| ETIM 8 | EC001440 - Current monitoring relay |
| ETIM 9 | EC001440 - Current monitoring relay |
| eClass | V11.0 : 27371802 |
| UNSPSC | 39122332 |
| E-Number (Finland) | 2712312 |
| E-Number (Norway) | 4188058 |
| E-Number (Sweden) | 3860627 |
| extended_product_type | CM-SRS.21S |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Electronic Relays and Controls > Single Phase Monitors, Parts & Services > Medium Voltage Products and Systems > Service > Spares and Consumables > Parts > All Spare Parts (Relays-SWG-CB) |
