Артикул: 1SVR500100R0000
· Производитель: ABB
· EAN: 4013614350658
1SVR500100R0000
В наличии на нашем складе
Наличие в РФ
8 082.00 ₽
в наличии на складе · 63 шт.
Склад в Китае
6 560.53 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
5 943.06 ₽
срок ≈1 мес. (38 дн.)

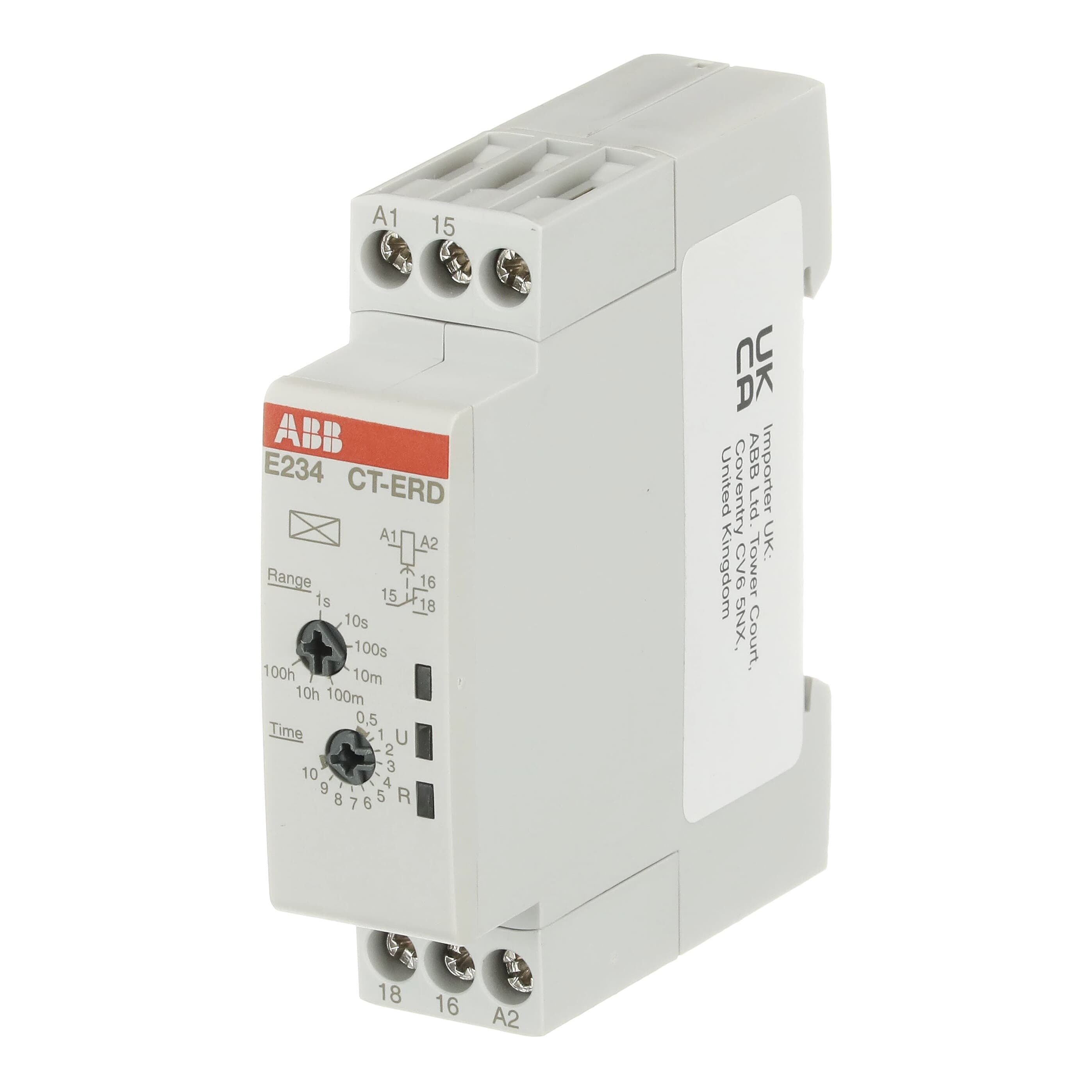

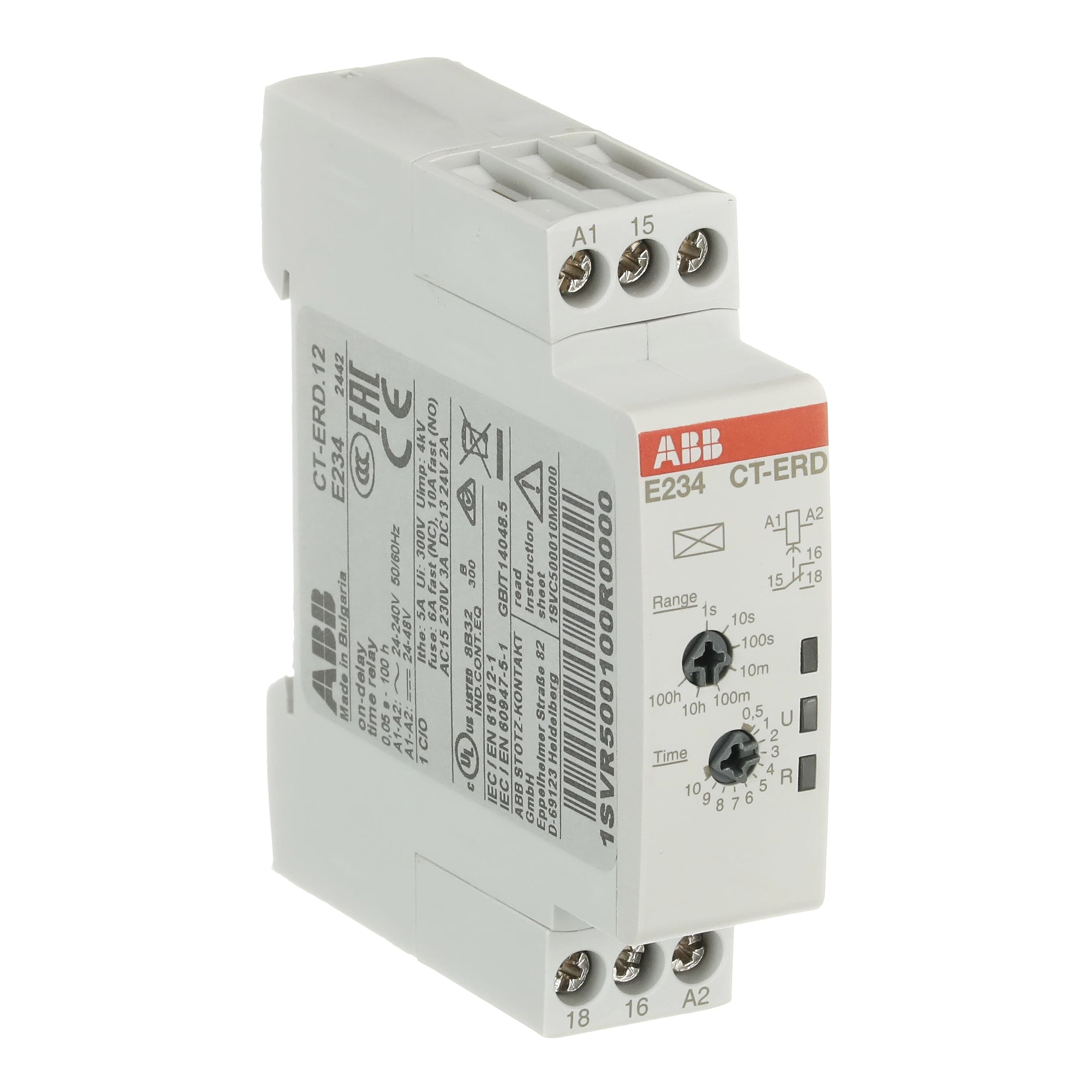

The CT-ERD.12 is a single-function electronic time relay from the CT-D timer range. It provides an ON-delay (delay on make) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 5 943.06 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 076.86 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 560.53 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 708.22 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 734.68 ₽ | ≈2 нед. (17 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 014.48 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 068.74 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 259.94 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 803.15 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в России | 8 082.00 ₽ | 5 дн. | 63 шт. | — | Заказать |
| Наш склад | 8 339.00 ₽ | В наличии | 1 шт. | — | Заказать |
| Склад в Европе | 10 357.22 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 11 180.30 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 341.89 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 17.5 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.052 kg |
| Timer Relay Type | ON-Delay |
| Time Range | 0.05 s ... 100 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC, 24 ... 48 V DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz, DC |
| Output | 1 C/O (SPDT) Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 1.5 mm² |
| Tightening Torque | 0.5 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4, Pozidriv 1 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508 |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | C300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-16 AWG |
| Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
| Pilot Duty UL/CSA | C300 |
| Flammability According to UL94 | V-2 |
| Ambient Air Temperature | Operation -20 ... +60 °C, Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | fd48775a-6f36-4e9f-a96e-14298ce29582 Germany |
| Simplified SCIP | 2f835f88-02b7-4458-bcdb-8013fe8a6ac6 Germany, c0a3c6c6-5c86-4a3a-bfa5-14cdbf991a36 Germany, 52ad026d-44c5-474c-92d5-cc2c06d0dd65 Hungary, 0f5174c2-181a-4b87-8131-907b0b9f1f2c France, f1ff7992-5a2e-4dd6-abad-032410217481 Norway, d6c68938-687b-4e6e-a320-92ea05ed0445 Poland, b5370cad-2f83-4263-8a39-819fb27a15c4 Portugal, bb2e9c41-cb4a-4605-9ecc-1fbce74ad29d Hungary, 22a78b91-3edf-4ceb-9e1b-434d3bc586f1 Greece, b61eef43-7d29-40a8-8c7b-881f987ee97e Bulgaria, ac64a76a-a0f5-4407-9c3a-0db546ac21a4 Estonia, fac9fabe-1f65-4e29-afd2-faa346ac0f81 Sweden, 9d075b2f-fa3a-4304-bfa9-b2f20de195ca Sweden, 8dfbdd1f-4b38-4745-a463-4bcfa5fbe517 Poland, 9c73ef2d-aefd-4b86-907f-80fdd403d061 France, 7638da17-b776-4e84-89dd-6f33308a634c Denmark, 9872eeb5-f555-4fe6-bf4d-eb233578f096 Finland, 551df2e5-c747-4f13-915f-e2c81773055f Italy, 0e707a1f-a668-4c88-91e2-80dbcaef10f7 Belgium, e328b804-066c-4ffb-be46-247b3598f9de Czechia, 971e5c5b-c97a-42a3-b785-1476b25b3bb1 Poland, 99505722-148f-4802-b3bf-f34e8152c0b8 Netherlands, 29c0cbbe-bf80-44e5-937a-25528e8d7f05 Croatia, 32abf4db-d1a4-4892-9a14-c06800462e75 Germany, ca68f2ea-82e6-4236-8f94-e0fb31697573 Germany, 45753629-a4fb-4131-b48b-b827206a2a82 Spain, 28db0e26-9d87-49dd-972e-7f1c85c95285 Belgium |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 89 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Object Classification Code | K |
| ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay |
| ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 |
| UNSPSC | 39122329 |
| E-Number (Finland) | 2712640 |
| E-Number (Norway) | 4364061 |
| E-Number (Sweden) | 4033006 |
| extended_product_type | CT-ERD.12 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Electronic Relays and Controls > Time Relays > CT-D |
