Артикул: 1SVR405600R3000
· Производитель: ABB
· EAN: 4013614498169
1SVR405600R3000
В наличии на нашем складе
Наличие в РФ
877.41 ₽
в наличии на складе · 66 шт.
Склад в Китае
731.99 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
663.10 ₽
срок ≈4 мес. (122 дн.)

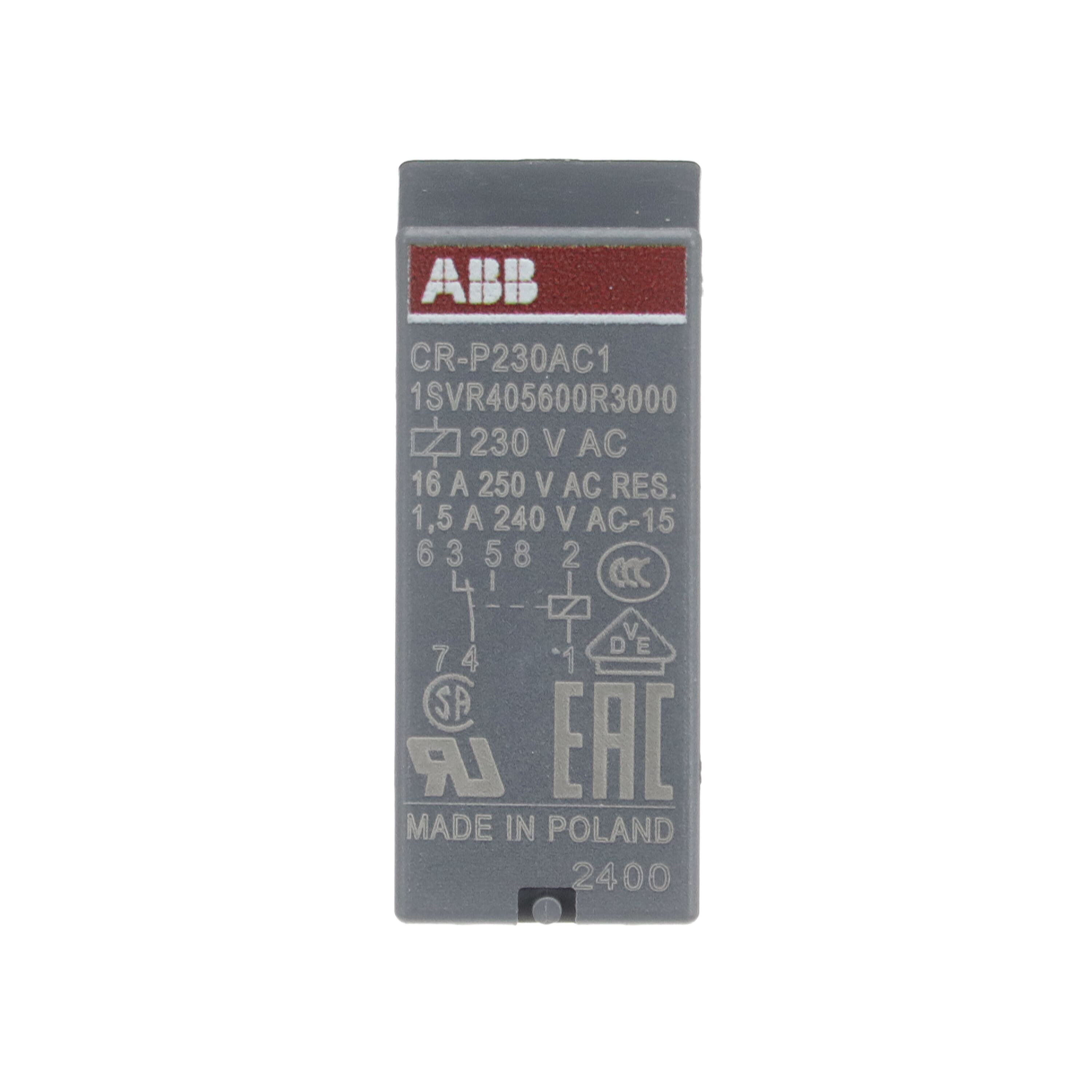

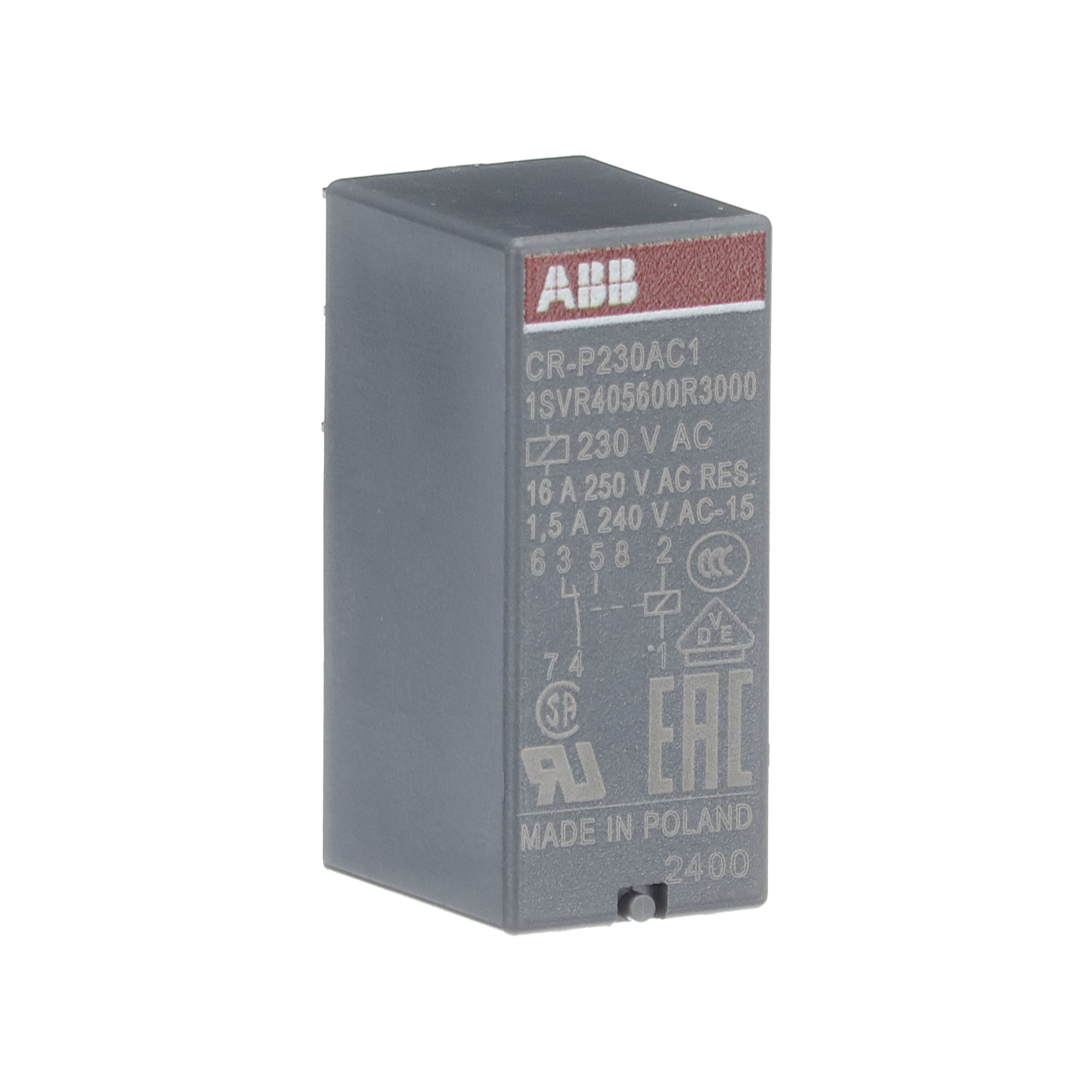

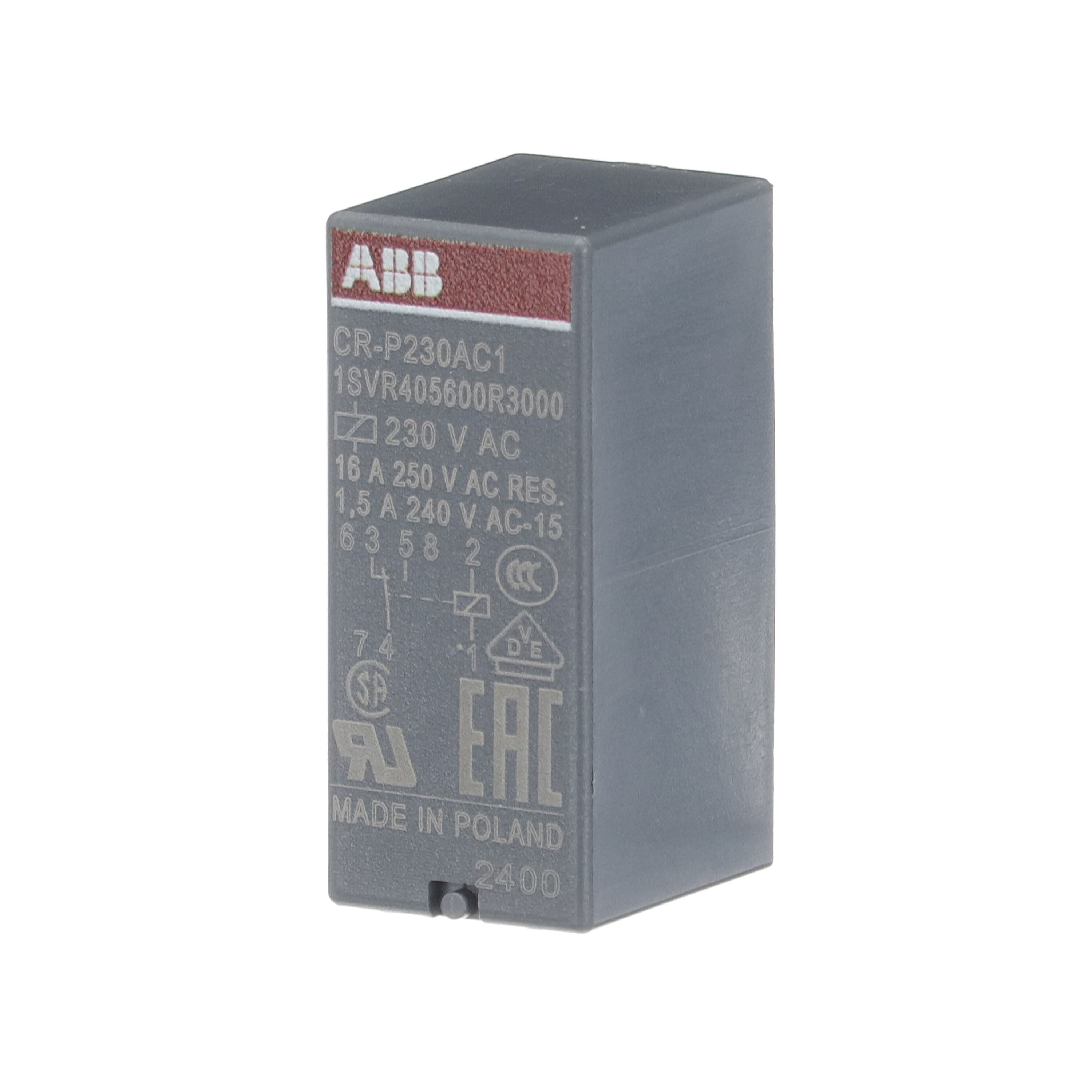

The CR-P230AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 230 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 663.10 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 731.99 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 738.56 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 743.14 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 764.81 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 784.23 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 820.35 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 865.71 ₽ | ≈1 мес. (59 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в России | 877.41 ₽ | 5 дн. | 66 шт. | — | Заказать |
| Наш склад | 1 094.00 ₽ | В наличии | 15 шт. | — | Заказать |
| Склад в Европе | 1 099.42 ₽ | уточняется | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 1 137.39 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 255.56 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 12.7 mm |
| Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm |
| Product Net Weight | 0.014 kg |
| Function | Pluggable pcb interface relay CR-P |
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 230 V AC |
| Rated Operational Voltage | 400 V AC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 16 A |
| Terminal Type | Soldering Pins |
| Rated Operational Current AC-12 (Ie) | (230 V) 16 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A, (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 16 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A, (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V |
| Degree of Protection | IP67 |
| Mounting Position | 1 |
| Standards | IEC/EN 61810-1 |
| Maximum Operating Voltage UL/CSA | 300 V AC |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C, Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 332 mm |
| Package Level 1 Depth / Length | 17 mm |
| Package Level 1 Height | 28 mm |
| Package Level 1 Gross Weight | 0.157 kg |
| Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712752 |
| E-Number (Norway) | 4187336 |
| E-Number (Sweden) | 4005305 |
| extended_product_type | CR-P230AC1 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Electronic Relays and Controls > Interface Relays and Optocouplers |
