Артикул: 1SL0828A00
· Производитель: ABB
· EAN: 8000126233605
1SL0828A00
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
3 779.01 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
3 027.83 ₽
срок ≈1 мес. (45 дн.)

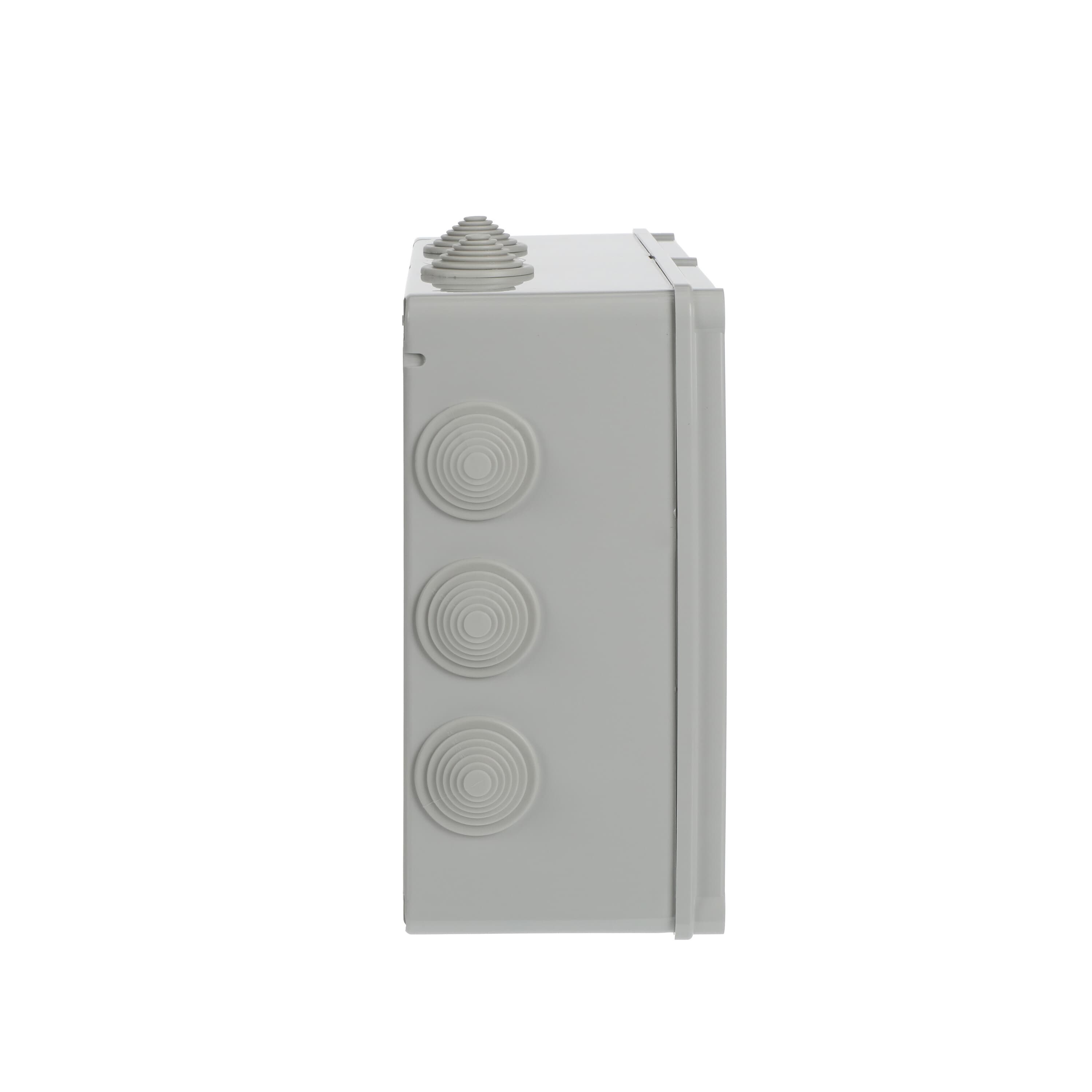

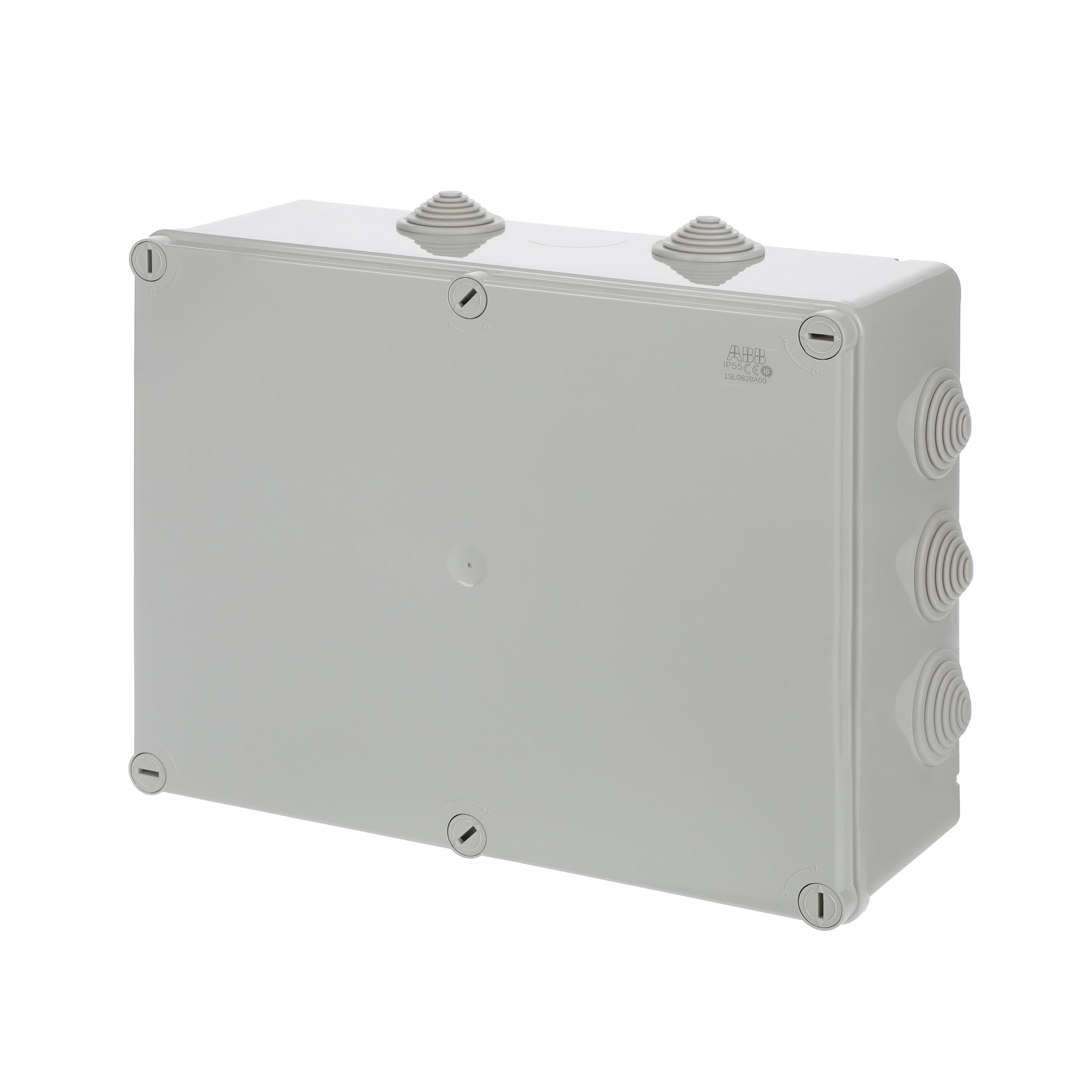

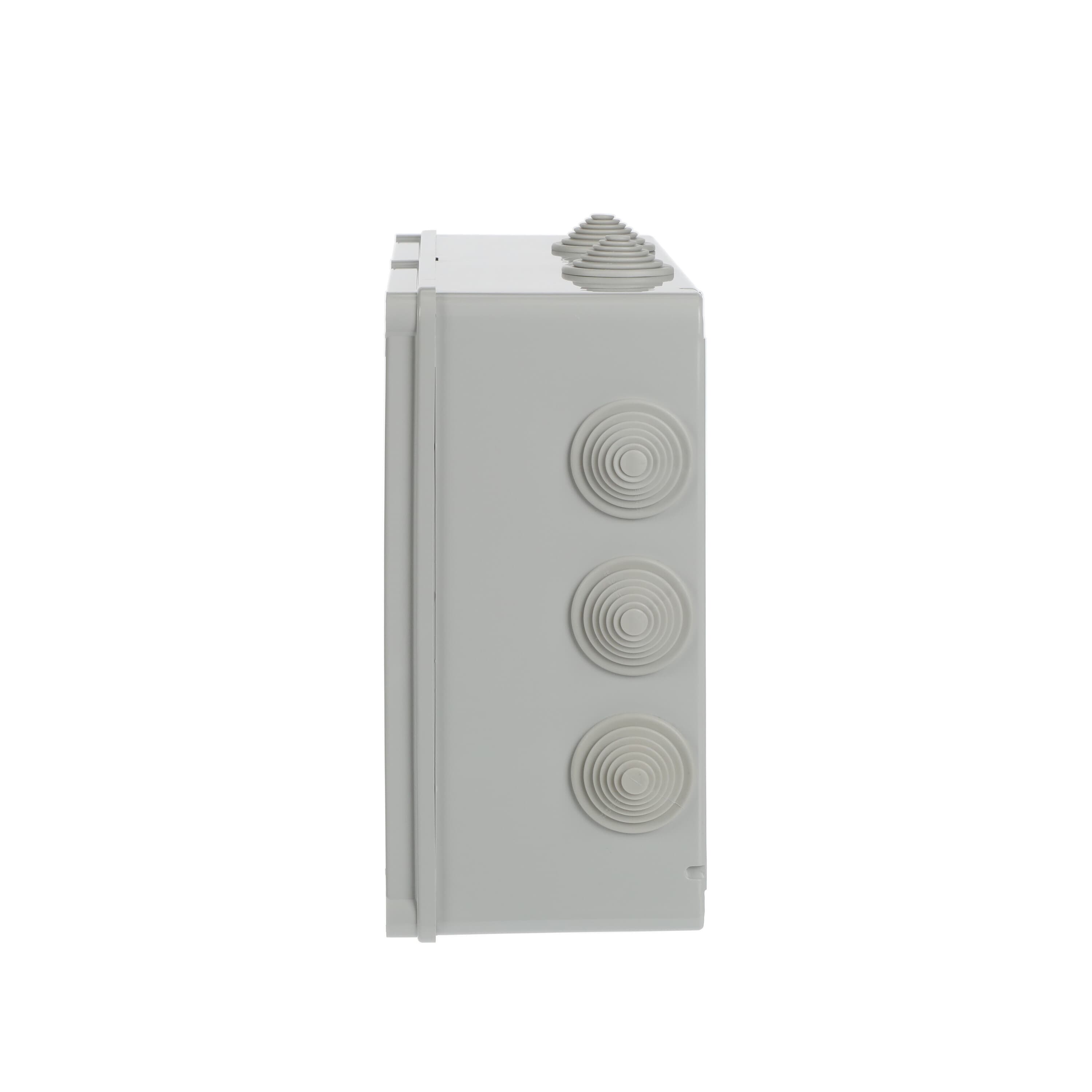

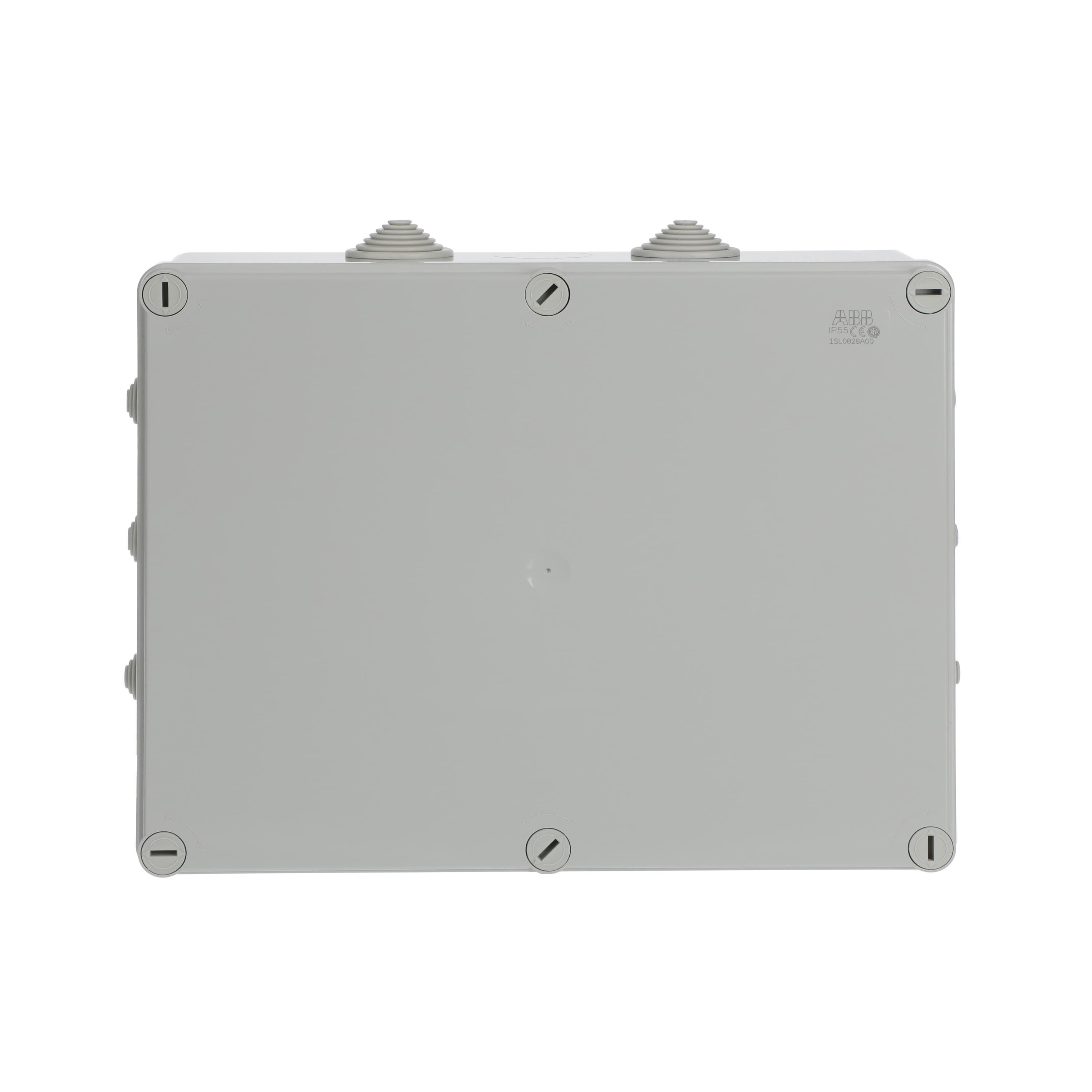

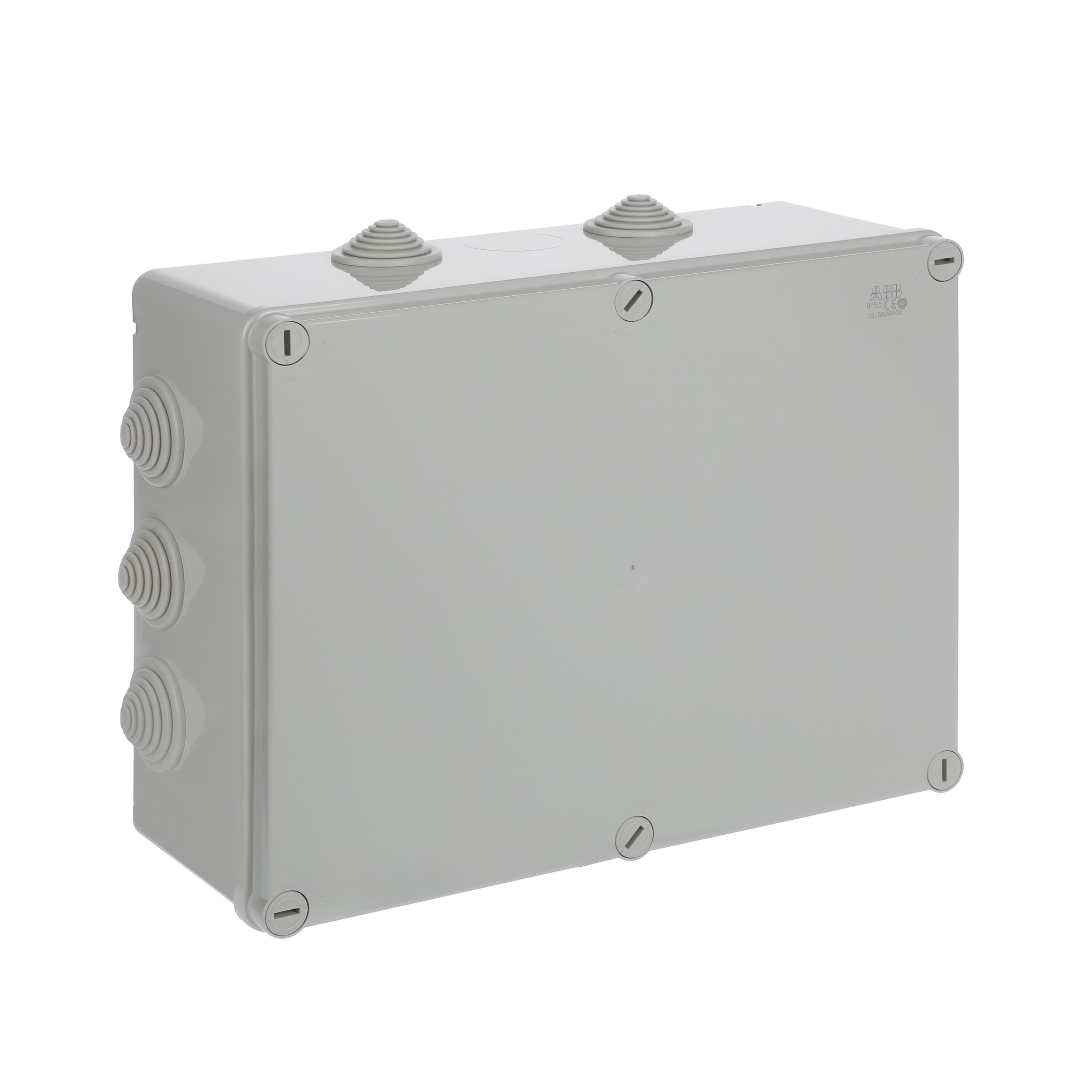

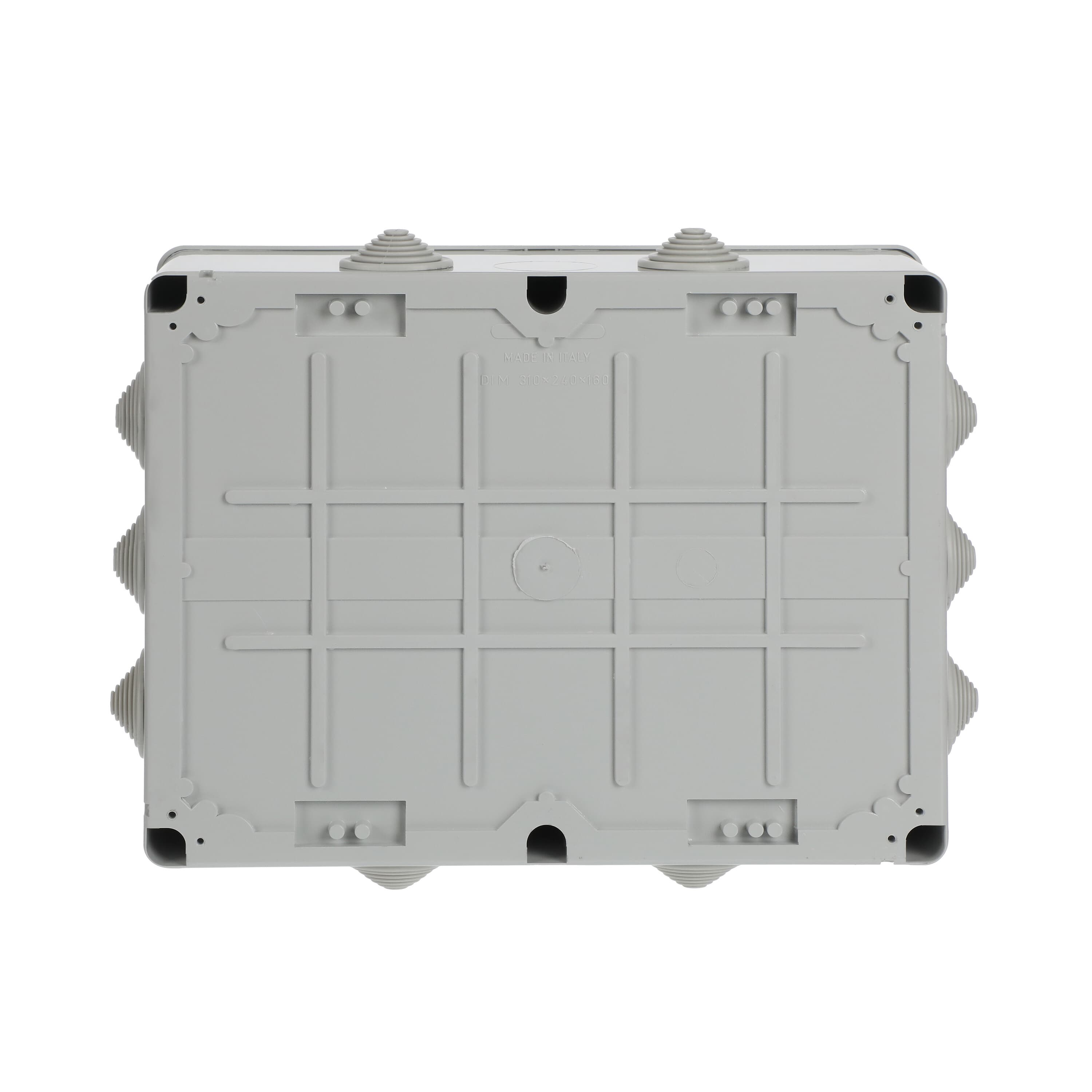

IP55-CABLE GL-LOW LID-310X240X110-1/4TS - GWT 650°C
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 3 027.83 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 423.34 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 551.27 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 779.01 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 791.89 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 920.23 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 4 185.85 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 4 225.75 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| color | grey |
| Application | General |
| Suitable For | IP44-IP55-IP65 junction boxes in thermoplastic material |
| Model Number | Junction box |
| Number of Conduit Inlets | 10 |
| Cover Mounting Type | Screw |
| Entrance Type | Cable Gland |
| Product Type | IP44-55-65 |
| Screw Type | Plastic |
| Screw Material | Plastic |
| Cross-Section (Across) | Maximum Conductor 95 mm² |
| Rated Insulation Voltage (Ui) | 1500 V |
| Shape | Rectangular |
| Surface Finishing | Untreated |
| Enclosure Material | thermoplastic |
| Material | Plastic |
| Cover Style | Blind Cover |
| RAL Number | RAL 7035 - Light Grey |
| Color | grey |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20221015 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| WEEE Category | Product Not in WEEE Scope |
| Degree of Protection | IP55 |
| Protection Class | Isolated (Class II) |
| Product Net Width | 310 mm |
| Product Net Height | 240 mm |
| Product Net Depth / Length | 110 mm |
| Product Net Weight | 1.233 kg |
| Package Level 1 Units | box 6 piece |
| Package Level 1 Gross Weight | 7.4 kg |
| E-Number (Finland) | 3411010 |
| Mounting Type | Surface mounting |
| ETIM 9 | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| ETIM 10 | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| UNSPSC | 39121332 |
| eClass | V11.0 : 27144401 |
| IDEA Granular Category Code (IGCC) | 4486 >> Electrical junction box |
| Object Classification Code | U |
| extended_product_type | WB1SL0828A00 |
| category_paths | Products > Low Voltage Products and Systems > Enclosures > Installation Material > Junction Boxes > Surface Mounted |
