Артикул: 1SFA619403R5202
· Производитель: ABB
· EAN: 7320500556344
1SFA619403R5202
В наличии на нашем складе
Наличие в РФ
744.00 ₽
в наличии на складе · 87 шт.
Склад в Китае
746.73 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
707.28 ₽
срок ≈1 мес. (38 дн.)

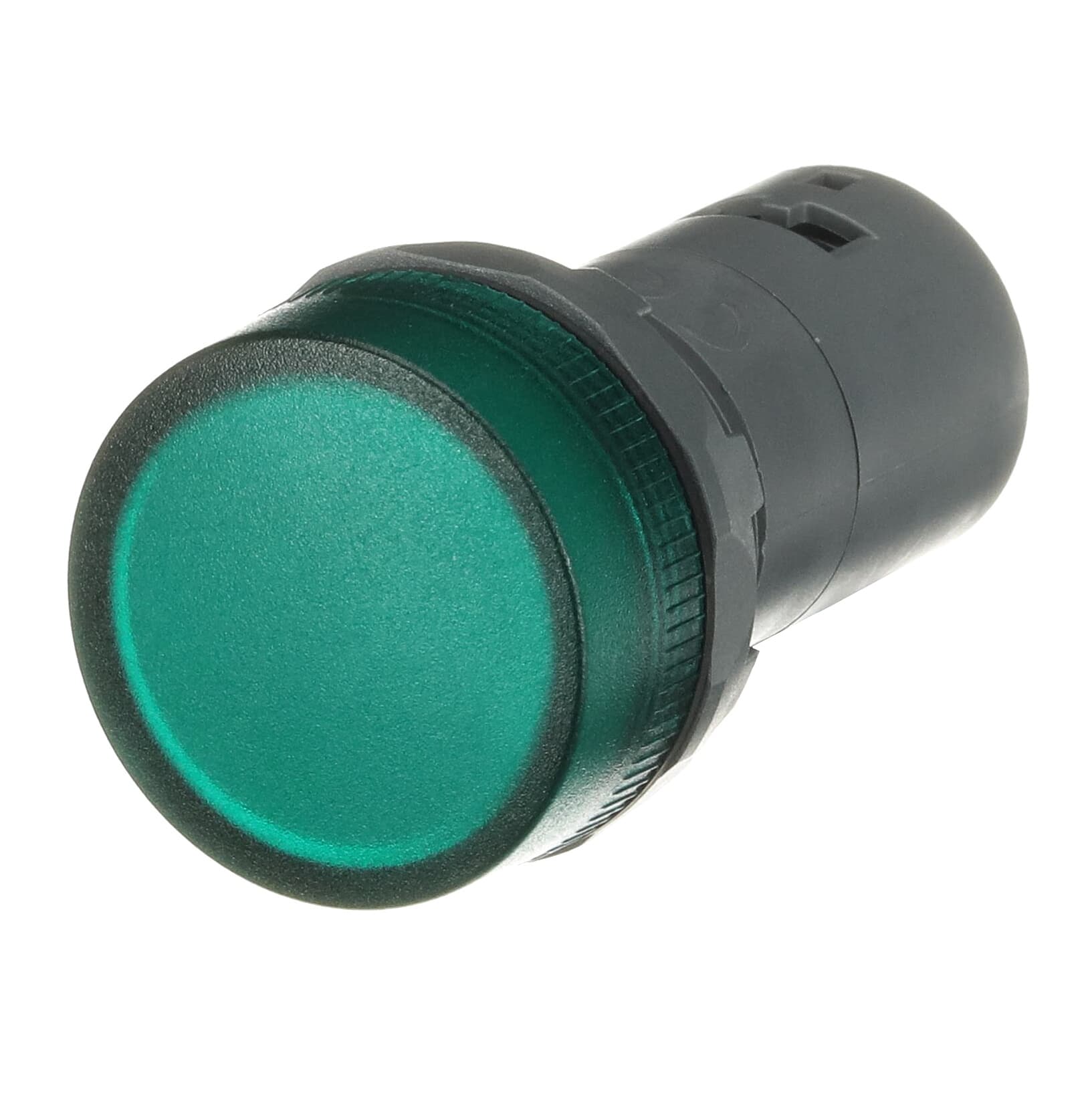

The CL2-520G Pilot Light is: Compact - Pilot Light - Pilot light head - Green - Illuminated - 220V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 707.28 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Наш склад | 744.00 ₽ | В наличии | 87 шт. | — | Заказать |
| Склад в Китае | 746.73 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Китае | 780.76 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 820.99 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 863.53 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 906.29 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 953.25 ₽ | ≈1 мес. (59 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 1 149.97 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 249.73 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 1 269.44 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.052 m |
| Product Net Weight | 0.018 kg |
| Ambient Air Temperature | Operation -30 ... 70 °C, Storage -40 ... +85 °C |
| Color | Green |
| Actuator Type | Pilot light head |
| Illumination | Illuminated |
| Lamp Type | 220 V DC, integrated LED |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Operational Voltage | 220 V DC, Supply Circuit 220V DC V |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 0.235 m |
| Package Level 1 Depth / Length | 0.125 m |
| Package Level 1 Height | 0.035 m |
| Package Level 1 Gross Weight | 0.184 kg |
| Object Classification Code | P |
| ETIM 6 | EC000272 - Indicator light complete |
| ETIM 7 | EC000272 - Indicator light complete |
| ETIM 8 | EC000272 - Indicator light complete |
| eClass | V11.0 : 27371223 |
| UNSPSC | 39121534 |
| IDEA Granular Category Code (IGCC) | 4766 >> Indicator or pilot lights |
| E-Number (Finland) | 2313547 |
| E-Number (Norway) | 4373531 |
| E-Number (Sweden) | 3705772 |
| extended_product_type | CL2-520G |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Pilot Devices > Compact Range > CL Compact Pilot Lights |
