Артикул: 1SFA619100R3072
· Производитель: ABB
· EAN: 7320500551370
1SFA619100R3072
Под заказ
Наличие в РФ
1 521.35 ₽
в наличии на складе · 70 шт.
Склад в Китае
645.01 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
768.31 ₽
срок ≈1 мес. (38 дн.)

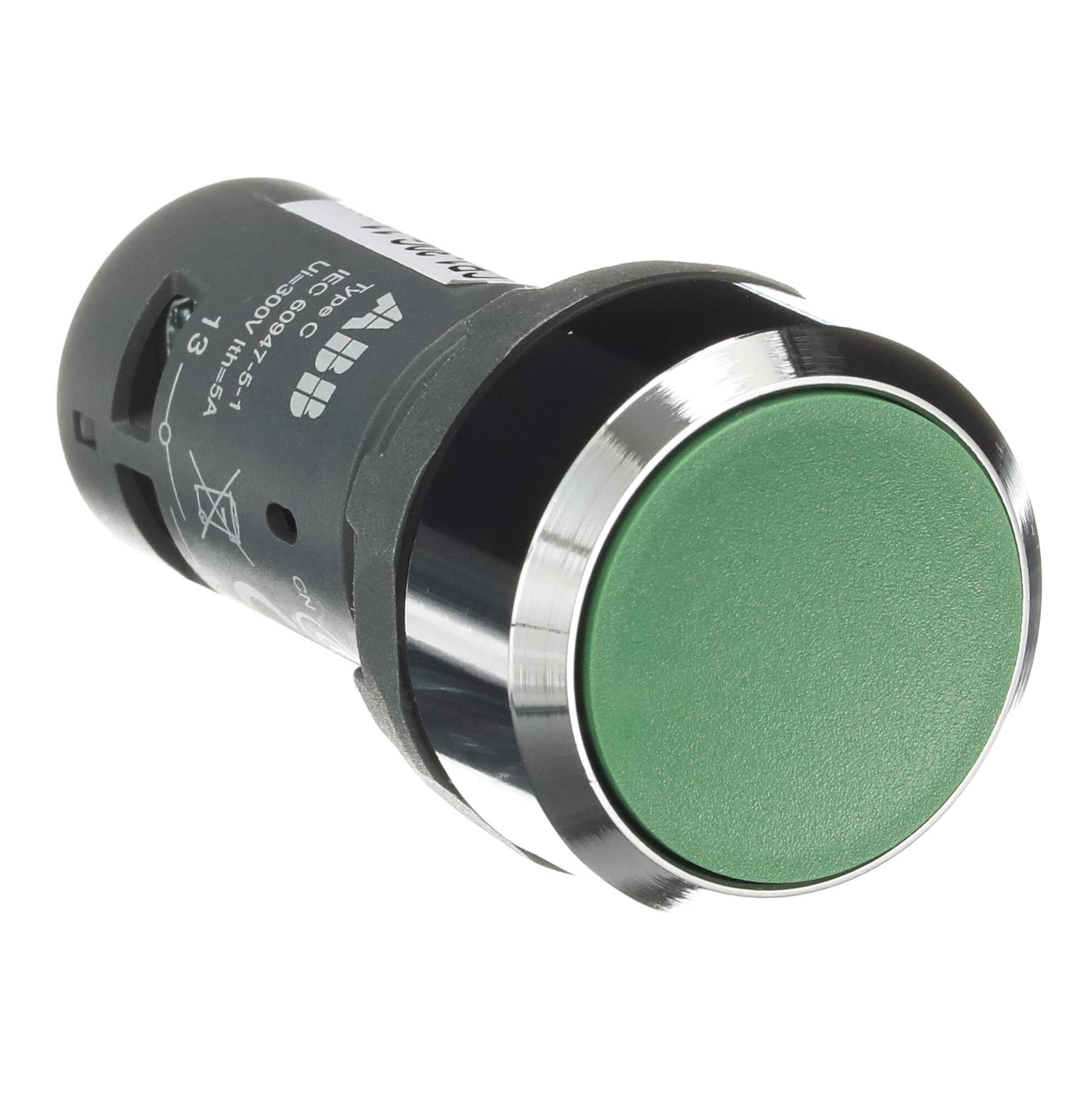

The CP1-30G-11 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Green - Non-illuminated - Chrome Metal - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 645.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 768.31 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 828.87 ₽ | ≈1 мес. (52 дн.) | под заказ | — | Заказать |
| Склад в Европе | 834.55 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 835.02 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 848.14 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 878.51 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 921.77 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 969.78 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 993.32 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Наш склад | 1 044.00 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 1 096.52 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 204.58 ₽ | уточняется | под заказ | — | Заказать |
| Склад в России | 1 521.35 ₽ | 5 дн. | 70 шт. | — | Заказать |
| Склад в Европе | 1 733.43 ₽ | ≈2 мес. (66 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536501999 |
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.055 m |
| Product Net Weight | 0.036 kg |
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
| Color | Green |
| Actuator Type | Flush |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Momentary |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A, (220 / 240 V) 2 A |
| Power Loss | Maximum 5 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 0.125 m |
| Package Level 1 Depth / Length | 0.235 m |
| Package Level 1 Height | 0.05 m |
| Package Level 1 Gross Weight | 0.364 kg |
| Object Classification Code | S |
| ETIM 6 | EC001028 - Push button, complete |
| ETIM 7 | EC001028 - Push button, complete |
| ETIM 8 | EC001028 - Push button, complete |
| eClass | V11.0 : 27371228 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Finland) | 2313576 |
| extended_product_type | CP1-30G-11 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Pilot Devices > Compact Range > CP Compact Pushbuttons |
