Артикул: 1SFA197002R1013
· Производитель: ABB
· EAN: 7320500524800
1SFA197002R1013
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
957.87 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
867.72 ₽
срок ≈4 мес. (122 дн.)

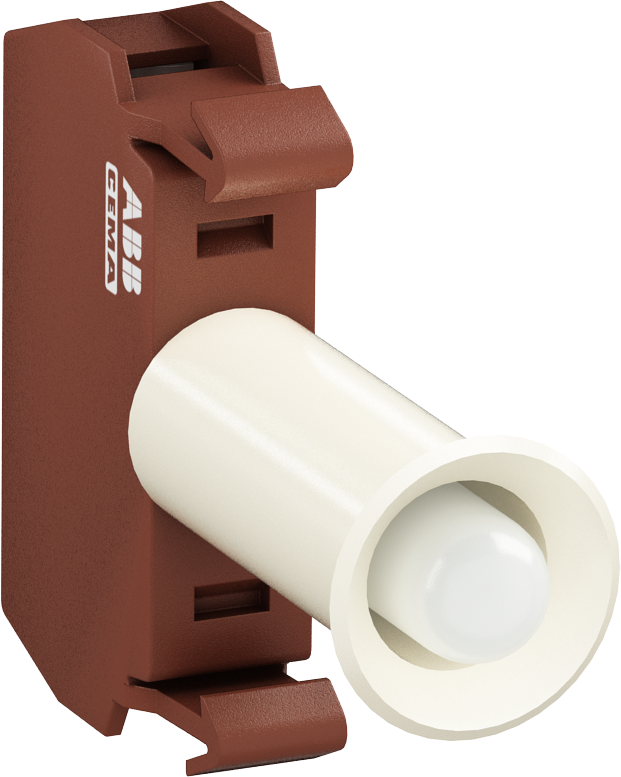

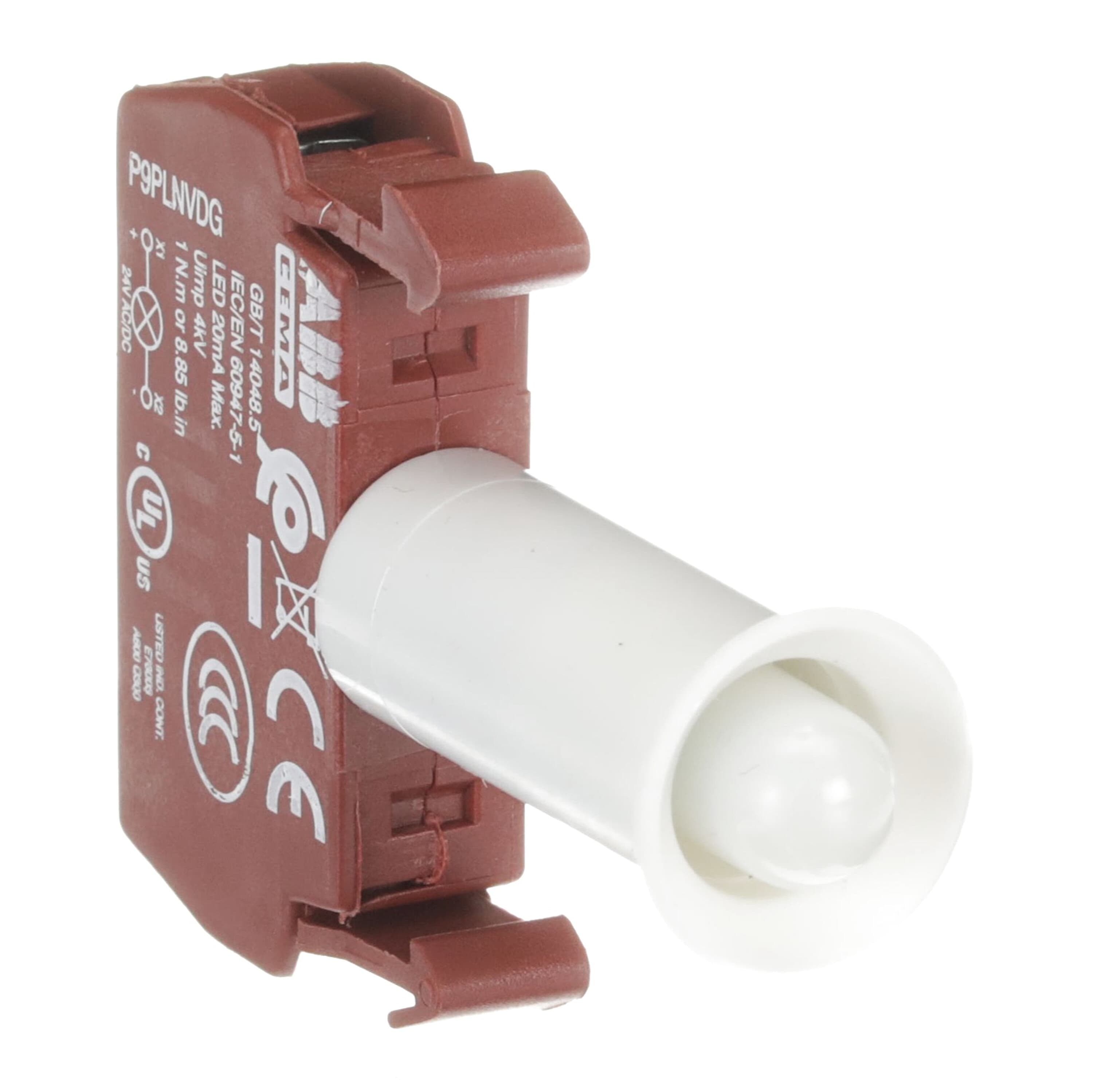

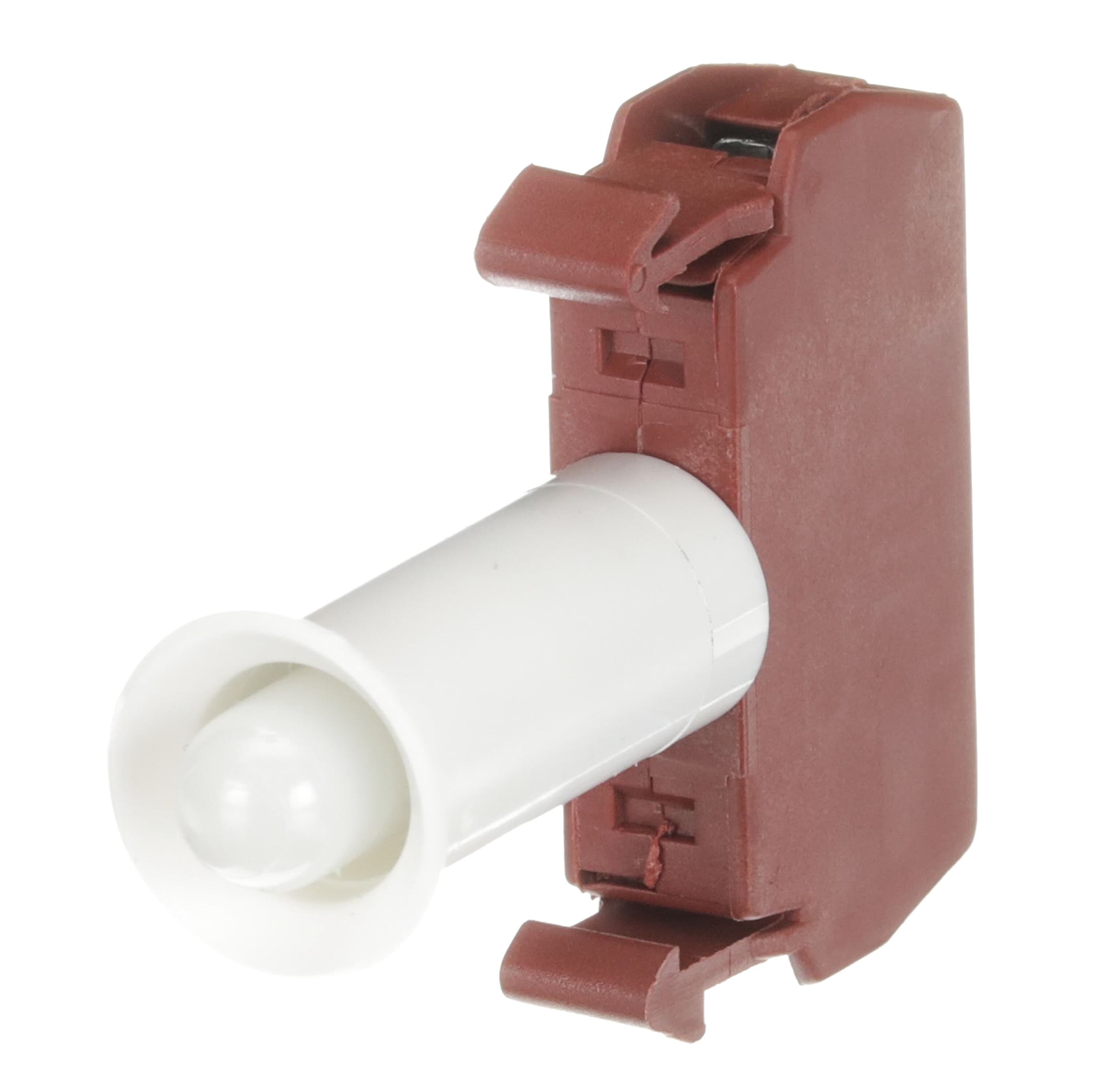

The P9PLNVDG LED block is: Modular metal - LED block - Permanent - Yellow - Illuminated - Front mounting - 24 V ACDC
This LED block is part of ABB's modular metal range designed for mining, construction and heavy industry applications, combining the highest reliability with the full flexibility of a modular range.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 867.72 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 943.13 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 957.87 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 041.12 ₽ | ≈1 мес. (59 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 1 051.13 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 160.34 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 318.53 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 1 380.55 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 2 030.54 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 241.50 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8539520000 |
| Product Net Width | 9.8 mm |
| Product Net Height | 39.5 mm |
| Product Net Depth / Length | 56 mm |
| Product Net Weight | 0.018 kg |
| Ambient Air Temperature | Operation -30 ... 70 °C, Storage -40 ... +70 °C |
| Color | Yellow |
| Illumination | Illuminated |
| Lamp Type | 24 VACDC, Integrated LED |
| Function | Permanent |
| Mounting Type | Front mounting |
| Pollution Degree | 3 |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 V ACDC V |
| Power Loss | Maximum 0.5 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
| Degree of Protection | Terminals IP20 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 180 mm |
| Package Level 1 Gross Weight | 0.018 kg |
| ETIM 7 | EC000204 - Lamp holder block for control circuit devices |
| ETIM 8 | EC000204 - Lamp holder block for control circuit devices |
| eClass | V11.0 : 27371209 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 2314959 |
| extended_product_type | P9PLNVDG |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Pilot Devices > Modular Metal Range P9M |
