Артикул: 1SDA066776R1
· Производитель: ABB
· EAN: 8015644006860
1SDA066776R1
В наличии на нашем складе
Наличие в РФ
12 094.00 ₽
в наличии на складе · 1 шт.
Склад в Китае
11 333.70 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
14 642.59 ₽
срок ≈4 мес. (122 дн.)

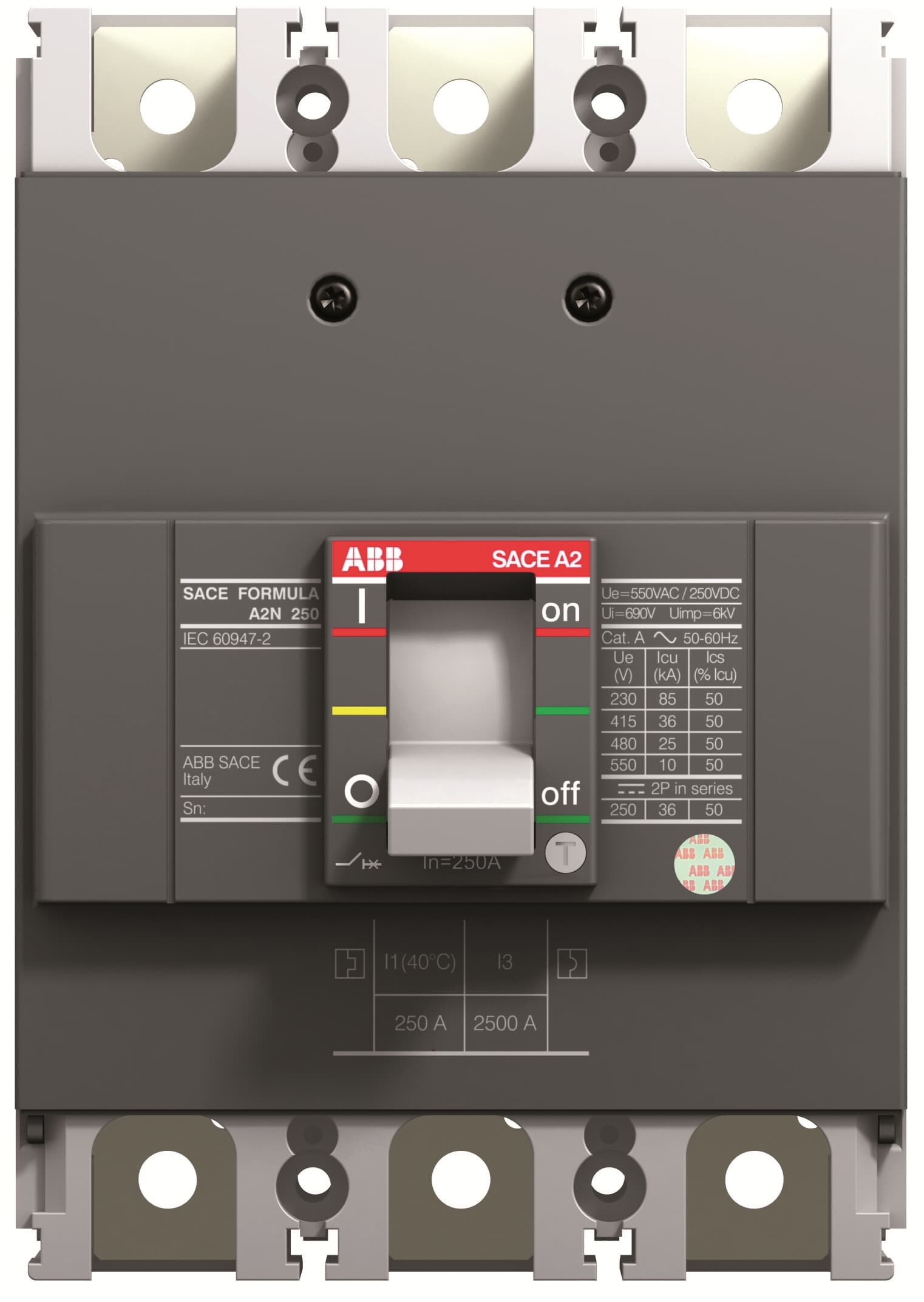

C.BREAKER FORMULA A2C 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 160-1600 A
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 11 333.70 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Наш склад | 12 094.00 ₽ | В наличии | 1 шт. | — | Заказать |
| Склад в Европе | 14 642.59 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 16 163.90 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 440.93 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 906.80 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 887.86 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 149.08 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 267.29 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 746.34 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 20 605.91 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 25 736.57 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 206221b2-2203-41f7-b608-0afe6da91c31 Italy |
| Simplified SCIP | 65c00d56-258c-431e-b4ed-4a0680e45522 Germany, e1b9b308-035f-4267-9e9b-99e0f0698778 Greece, 2803901e-3b96-4e5e-8f76-a5a50568d2c9 Portugal, a1097321-c720-43e4-b9f0-0b6c86d54358 Bulgaria, ffbcd65d-9d54-4bc9-8a88-66f308d08190 Poland, 79c0a84e-c100-4bd0-bb1a-c04c6a9a85ce Sweden, bb5761bc-b357-4fc1-8c67-64387dcf7620 Poland, 230ec631-e1a0-44de-9fbb-9050f236b45c Germany, c87720a3-c79d-468e-a22b-4120ccd9a284 Denmark, 534392d8-5b44-4ff3-a9fb-ccc8d5ad52dd Hungary, 897c41cb-d7d1-44e1-9cc7-f67e892d79a0 Estonia, a096a9bd-d67f-474a-b051-a1c13b13d5d6 Croatia, 238c0908-60f4-454d-a328-2a58ccc85987 France, 149cc85a-0a11-4256-99c9-37a809284223 Norway, ed7665ab-7f12-46e0-97a2-ea174539c70a Spain, 385c708a-86e2-40e5-a559-b07d0012789f Belgium, 834694da-ca3a-4951-a809-eae1cdde3f8a Netherlands, 2f4fcefd-aa95-488b-96b3-3ea624138ce6 Hungary, 530db28e-b292-44f4-9434-ba5b36e9b92f Poland, 2e2757e7-9834-49ee-92b7-eb054e9f17dd Germany, 39a66c40-3215-4d68-af4f-0ca43a6d3363 Germany, 77b90d39-b6ba-4d45-8308-ad184dad8f88 France, 1d84cfa5-e811-46c1-90eb-0fb037b78406 Germany, bdab6c9e-583e-430e-81cc-73e892d9f871 Finland, e33b865e-3145-4028-af01-42ab7af63bbf Sweden, 2acc9d08-2554-47ae-be3b-a68f94a0675b Belgium, 0b4b7a36-de23-4b05-95f2-e5c4e40048b8 Czechia |
| Order Code US and Canada | ABC160TW |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Product Net Width | 105 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 1.383 kg |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Gross Weight | 1.456 kg |
| Product Main Type | SACE FORMULA |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| Electrical Durability | 4000 cycle |
| Mechanical Durability | 10000 cycle |
| Number of Poles | 3P |
| Opening Time | CB with SOR 15 ms, CB with UVR 15 ms |
| Power Loss | at Rated Operating Conditions per Pole 9 W |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage | 550 V AC, 250 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 V AC) 25 kA, (380 V AC) 12.5 kA, (415 V AC) 12.5 kA, (440 V AC) 10 kA, (480 V AC) 9 kA, (500 V AC) 4 kA, (250 V DC) 2 Poles in Series 12.5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (240 V AC) 50 kA, (380 V AC) 25 kA, (415 V AC) 25 kA, (440 V AC) 20 kA, (480 V AC) 18 kA, (500 V AC) 8 kA, (250 V DC) 2 Poles in Series 25 kA |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release | TMF |
| Release Type | TM |
| Short-Circuit Performance Level | C |
| Standards | IEC |
| Sub-type | A2 |
| Terminal Connection Type | Front |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| extended_product_type | A2C 250 TMF 160-1600 3p F F |
| category_paths | Products > Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Formula DSA |
