Артикул: 1SDA054117R1
· Производитель: ABB
· EAN: 8015644552169
1SDA054117R1
В наличии на нашем складе
Наличие в РФ
38 414.00 ₽
в наличии на складе · 3 шт.
Склад в Китае
83 437.03 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
75 584.13 ₽
срок ≈1 мес. (38 дн.)

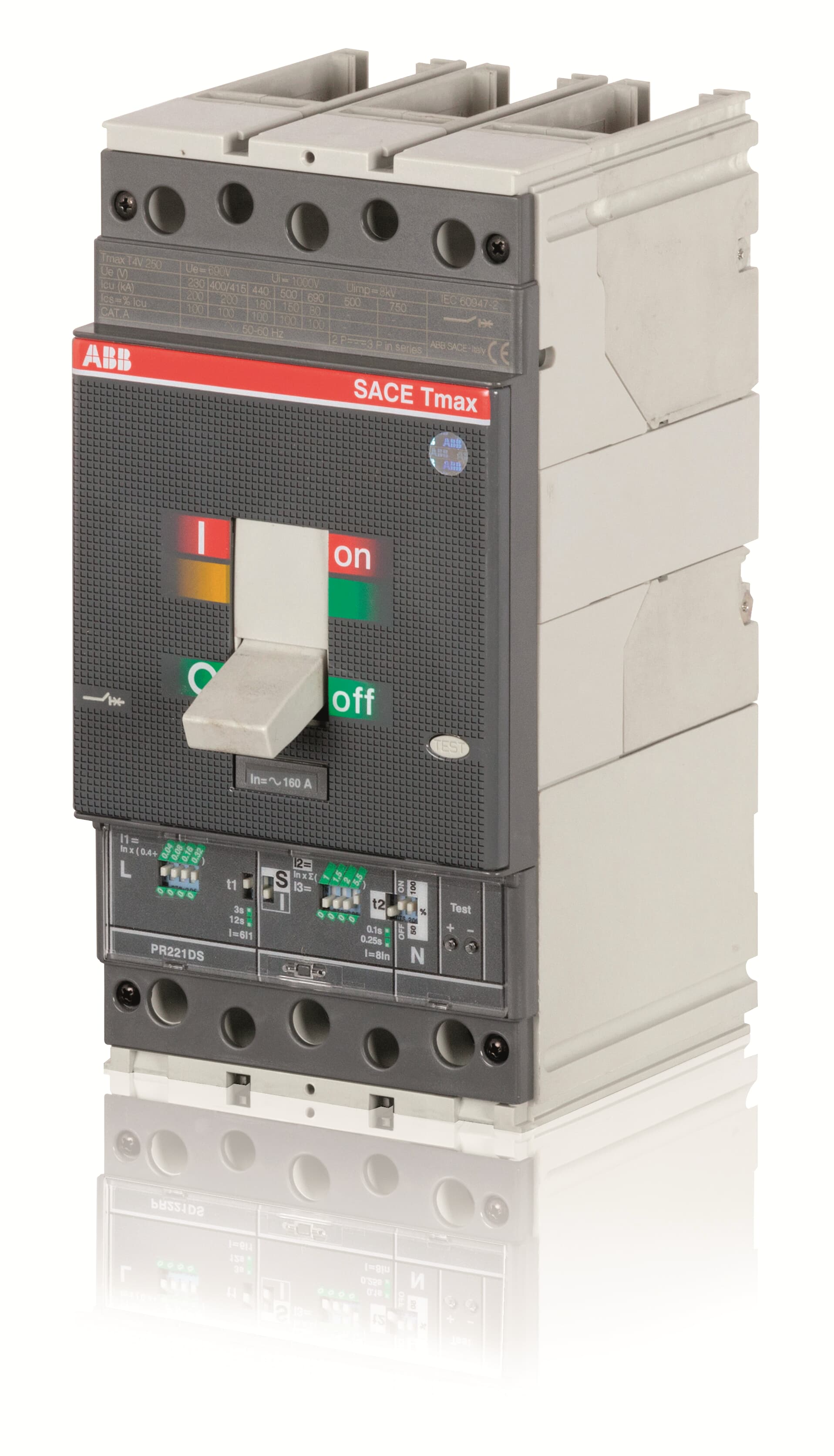

C.BREAKER TMAX T4N 320 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 320
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Наш склад | 38 414.00 ₽ | В наличии | 3 шт. | — | Заказать |
| Склад в Европе | 75 584.13 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 83 437.03 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 88 620.83 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 89 389.71 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 92 297.55 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 97 828.19 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в России | 114 624.51 ₽ | 5 дн. | под заказ | — | Заказать |
| Склад в Европе | 127 379.99 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c8261068-2394-4e97-b79c-4aa8dfdf22fd Italy |
| Simplified SCIP | 04b2a4a8-caea-496e-aea8-5be27f485c14 Belgium, 2c25d925-f56e-4bfa-94da-0278607425ea Germany, c953e95b-931e-457c-889d-510c8ecbc4d6 Poland, 14437be3-4035-4859-9069-aea339607b6e Norway, d16db71a-e45a-4884-a33b-b71c1e3a87e8 Finland, 3b3d3443-715f-410c-8483-19d1845285e8 Belgium, 18bf19bd-cf44-4403-b073-e5f5229d3d0e Germany, a635f205-c0bd-46e4-8f45-b9a4b4b0f98b Germany, 0c8452f3-dbe5-4e22-914d-77c56f299020 Croatia, 978ca9b0-3622-48e0-9331-dd1c9584f744 Czechia, 2cf75206-51a6-4e93-8684-771e5f7069ae Poland, 9df64383-d6d9-4c65-9e08-5468e300ef04 Netherlands, 25b0c978-1602-4fd3-809f-50360e5ac0d6 Hungary, 889554bd-c88b-4fe7-8554-1c6d816049ef Estonia, 8689bff2-a052-422c-90fd-b4423f159487 Greece, 4d9e0d1c-33ba-4069-8b74-2deb5baf0f52 Portugal, 33b1acc3-e762-4dfb-8bc3-3102a7485143 Bulgaria, ac217965-006e-4932-809d-d797133b45a4 Sweden, c3c829eb-4f76-4b44-9916-8474fb530204 Poland, 0e3baf62-16f3-49fd-bd42-cb49fd5bb19c France, 7208e594-6a2d-462b-83d8-ebef343ef7de Sweden, 2a17a864-bdc0-41dc-b551-62a074749598 Germany, 0c147bac-3f99-43a5-8942-db97b4f49ed0 Germany, b2868112-407d-4e51-8c97-82dbc0acff0c Denmark, 6df20a3c-6cb0-4c74-ae7b-af356949375c France, 8dff9926-9db8-4b58-af7d-c84211e983f8 Hungary, 5fe4154c-e299-4492-94cb-131a4fb19edd Spain |
| E-Number (Finland) | 3655174 |
| E-Number (Sweden) | 3180305 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.639 kg |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 246 mm |
| Package Level 1 Depth / Length | 290 mm |
| Package Level 1 Gross Weight | 3.83 kg |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T4 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Electrical Durability | 6000 cycle, 120 cycles per hour |
| Gross Volume | 17,835 cm³ |
| Mechanical Durability | 20000 cycle, 240 cycles per hour |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 17.6 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V) 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 30 kA, (500 V AC) 25 kA, (690 V AC) 20 kA |
| Rated Uninterrupted Current (Iu) | 320 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers, Front |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| extended_product_type | T4N 320 PR221DS-LS/I In=320 3p F F |
| category_paths | Products > Low Voltage Products and Systems > Circuit Breakers > Moulded Case Circuit Breakers > Tmax T |
