Артикул: 1SCA164779R1001 · Производитель: ABB · EAN: 6417019939551

1SCA164779R1001

Name: OTP16GB3MH
Brand: ABB
SKU: 1SCA164779R1001
Availability: PreOrder

Под заказ

Наличие в РФ

нет в наличии

Склад в Китае

6 282.96 ₽

срок ≈1 мес. (59 дн.)

Склад в Европе

5 691.62 ₽

срок ≈1 мес. (59 дн.)

Запросить цену / заказать

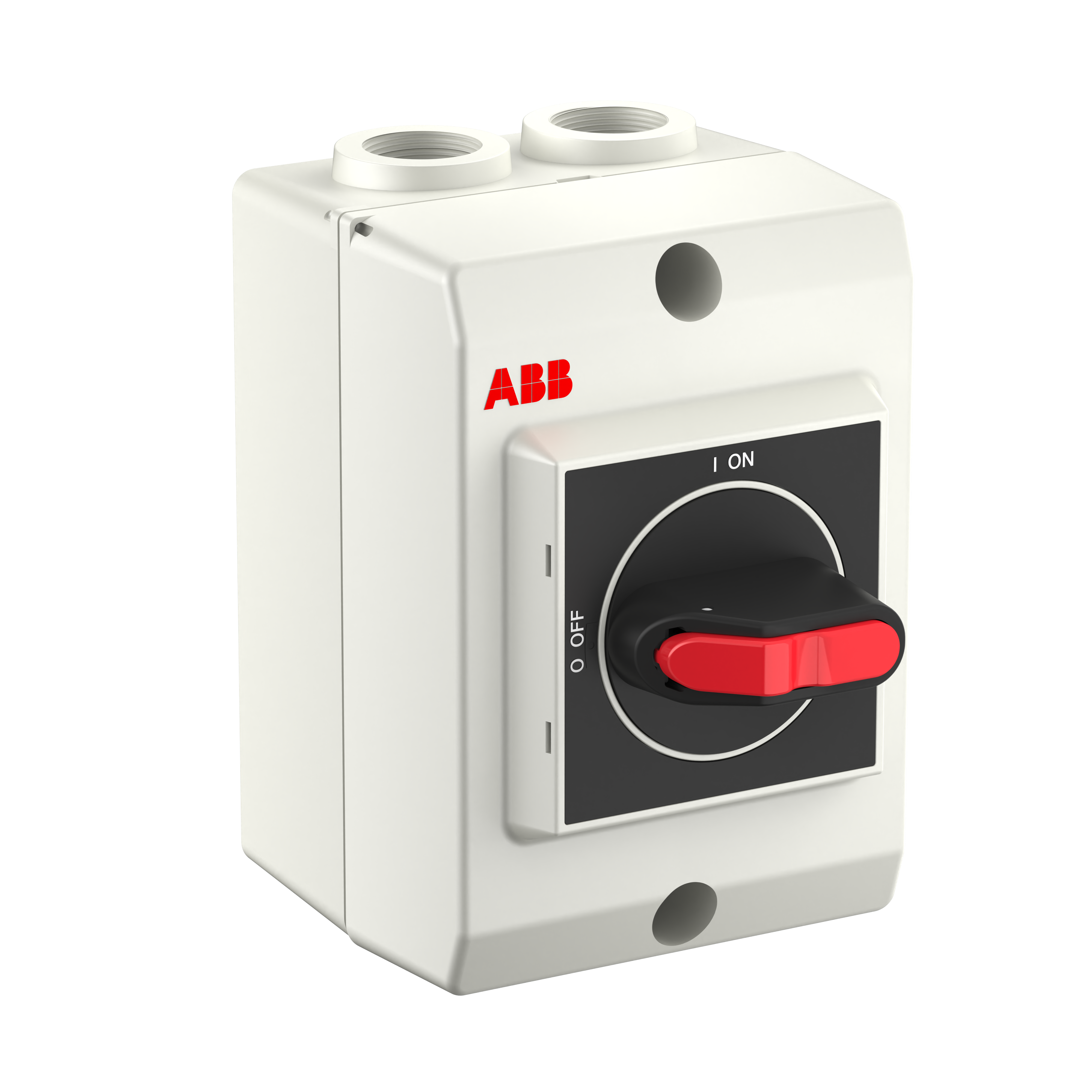

Maintenance switch, 3-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. Two membrane glands and two pull stoppers included. For horizontal mounting.

Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Склад в Европе	5 691.62 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Китае	6 282.96 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать

Характеристики

countryOfOrigin	Finland
countryOfAssembly	Finland
countryOfLastProcessing	Finland
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Degree of Protection	acc. to IEC 60529 IP65
Pollution Degree	3
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country of Origin	Finland
Product Net Width	85 mm
Product Net Height	120 mm
Product Net Depth / Length	74 mm
Product Net Weight	0.34 kg
Package Level 1 Units	box 1 piece
Package Level 1 Width	120 mm
Package Level 1 Depth / Length	158 mm
Package Level 1 Height	97 mm
Package Level 1 Gross Weight	0.4 kg
Cable Outlets Per Side	2xM20 / 2xM20
Connecting Capacity Main Circuit	Screw Clamp 0.75 ... 10 mm², Screw Clamp / PE Terminal 2pc 0.75 ... 2.5 mm²
Conventional Thermal Current (Ithe)	Fully Enclosed 16 A
Enclosure Material	Plastic
Enclosure Type	Inst
Handle Color	Black
Handle Type	Selector
Impact Resistance Rating	Housing IK08
Maximum Mounted Auxiliary Contacts	1 NO, 1 NC
Mechanical Durability	100000
Mounted Auxiliary Contacts	0 NO, 0 NC
Neutral Type	Fixed and Switchable Neutral
Number of Auxiliary Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Poles	3P
Position of Line Terminals	Top In - Bottom Out
Power Loss	at Rated Operating Conditions per Pole 0.3 W, Total 0.9 W
Rated Conditional Short-Circuit Current (Inc)	(415 V AC) 50 kA
Rated Impulse Withstand Voltage (Uimp)	acc. to IEC 60947-2 8 kV
Rated Insulation Voltage (Ui)	acc. to IEC 60947-1 750 V
Rated Operational Current AC-22A (Ie)	(380 ... 415 V) 16 A, (500 V) 16 A, (690 V) 16 A
Rated Operational Current AC-23A (Ie)	(380 ... 415 V) 16 A, (500 V) 16 A, (690 V) 16 A
Rated Operational Power AC-23A (Pe)	(380 ... 415 V) 7.5 kW, (500 V) 9 kW, (690 V) 11 kW
Rated Operational Voltage	Main Circuit 690 V
Rated Short-Circuit Making Capacity (Icm)	(690 V AC) 1.76 kA
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 0.8 kA, for 0.2 s 1.25 kA
Recommended Screw Driver	Main Circuit Pozidriv 2
Special Functions	0
Standards	IEC 60947-3, IEC62626-1/cl.0, IEC60529, IEC62262
Switches Operating Mechanism	On the Front of the Switch
Terminal Type	Screw Terminals
Tightening Torque	acc. IEC 60947-1 1
Wire Stripping Length	Main Circuit 9-10, Main Circuit MainCircuit mm
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122205
IDEA Granular Category Code (IGCC)	5166 >> Safety switch
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
extended_product_type	OTP16GB3MH
category_paths	Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Safety Switches > Enclosed Safety Switches
