Артикул: 1SCA164397R1001 · Производитель: ABB · EAN: 6417019934761

1SCA164397R1001

Name: OTA100GS3YX
Brand: ABB
SKU: 1SCA164397R1001
Availability: PreOrder

Под заказ

Наличие в РФ

нет в наличии

Склад в Китае

58 116.17 ₽

срок ≈1 мес. (38 дн.)

Склад в Европе

52 646.42 ₽

срок ≈1 мес. (38 дн.)

Запросить цену / заказать

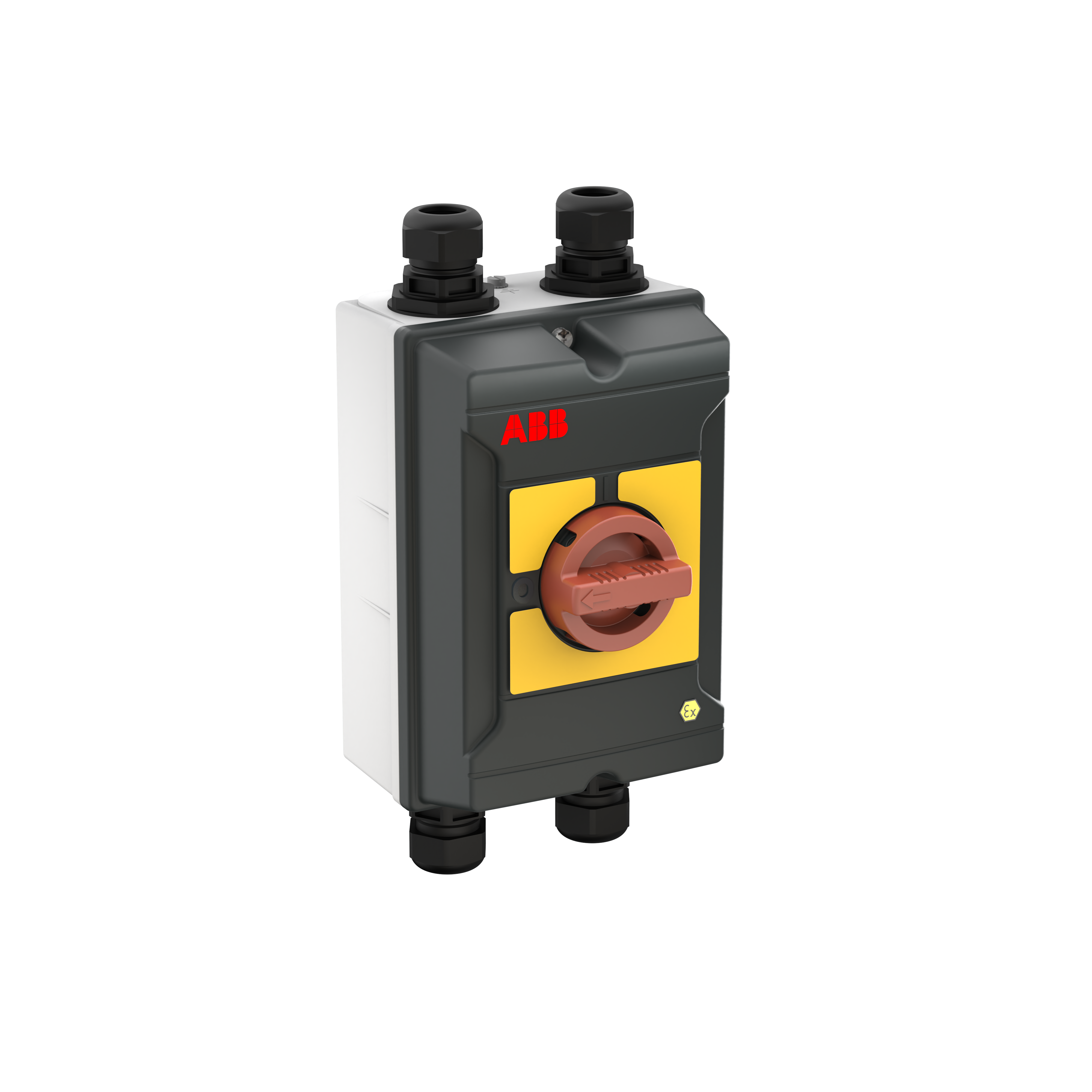

ATEX EMC maintenance switch, 3-p. 415V AC23 100A, 55kW. Mounted auxiliary contact: 1NO1NC. Aluminium enclosure. IP65. RedYellow Round handle. Interlocked cover. ATEX enclosed safety switches are designed for a potentially explosive atmosphere and are made according to ATEX directive 2014/34/EU. The ATEX class is Ex tc III T70⁰C Dc, used in zone 22. Typical applications for ATEX switches are refineries, mills, conveyor belt in hazardous areas, and dusty environments. The products are delivered with ATEX cable glands. The switches can be used in EMC environment, when used together with EMC cable glands.

Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Склад в Европе	52 646.42 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Китае	58 116.17 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Европе	63 302.49 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Европе	64 231.84 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Китае	69 879.37 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Китае	70 905.28 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Европе	112 517.41 ₽	уточняется	под заказ	—	Заказать

Характеристики

countryOfOrigin	Bulgaria
countryOfAssembly	Bulgaria
countryOfLastProcessing	Bulgaria
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Degree of Protection	acc. to IEC 60529 IP65
Pollution Degree	3
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country of Origin	Bulgaria
Product Net Width	160 mm
Product Net Height	230 mm
Product Net Depth / Length	118 mm
Product Net Weight	2.12 kg
Package Level 1 Units	box 1 piece
Package Level 1 Width	150 mm
Package Level 1 Depth / Length	170 mm
Package Level 1 Height	240 mm
Package Level 1 Gross Weight	2.3 kg
Cable Entry Position	Top/Bottom
Cable Outlets Per Side	2xM40 / 2xM40+M16
Connecting Capacity Main Circuit	Screw Clamp 2.5 ... 70 mm², Screw Clamp / PE Terminal 1pc 6 ... 35 mm²
Conventional Thermal Current (Ithe)	Fully Enclosed 100 A
Enclosure Material	Aluminium
Enclosure Type	Frontex2
Handle Color	Red / Yellow
Handle Type	Round
Impact Resistance Rating	Housing IK09
Maximum Mounted Auxiliary Contacts	1 NO, 1 NC
Mechanical Durability	200000
Mounted Auxiliary Contacts	1 NO, 1 NC
Neutral Type	Fixed Neutral
Number of Auxiliary Contacts NC	1
Number of Auxiliary Contacts NO	1
Number of Poles	3P
Position of Line Terminals	Top In - Bottom Out
Power Loss	at Rated Operating Conditions per Pole 3.7 W, Total 11.1 W
Rated Conditional Short-Circuit Current (Inc)	50 kA
Rated Impulse Withstand Voltage (Uimp)	acc. to IEC 60947-2 8 kV
Rated Insulation Voltage (Ui)	acc. to IEC 60947-1 800 V
Rated Operational Current AC-21A (Ie)	(400 V) 100 A, (500 V) 80 A, (690 V) 80 A
Rated Operational Current AC-22A (Ie)	(380 ... 415 V) 100 A, (500 V) 80 A, (690 V) 80 A
Rated Operational Current AC-23A (Ie)	(380 ... 415 V) 100 A, (500 V) 70 A, (690 V) 63 A
Rated Operational Power AC-23A (Pe)	(380 ... 415 V) 55 kW, (500 V) 55 kW, (690 V) 55 kW
Rated Operational Voltage	Main Circuit 800 V
Rated Short-Circuit Making Capacity (Icm)	(690 V) 4.8 kA
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 2.5 kA, for 0.2 s 3.3 kA
Recommended Screw Driver	Main Circuit Hexagon 4
Special Functions	EMC
Standards	IEC 60947-3, IEC62626-1/cl.0, IEC60529, IEC62262, EN55011
Switches Operating Mechanism	On the Front of the Switch
Terminal Type	Screw Terminals
Tightening Torque	acc. IEC 60947-1 6
Wire Stripping Length	Main Circuit 18 mm
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122205
IDEA Granular Category Code (IGCC)	5166 >> Safety switch
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	36
