Артикул: 1SCA164258R1001
· Производитель: ABB
· EAN: 6417019934952
1SCA164258R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
21 870.44 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
19 812.05 ₽
срок ≈1 мес. (38 дн.)

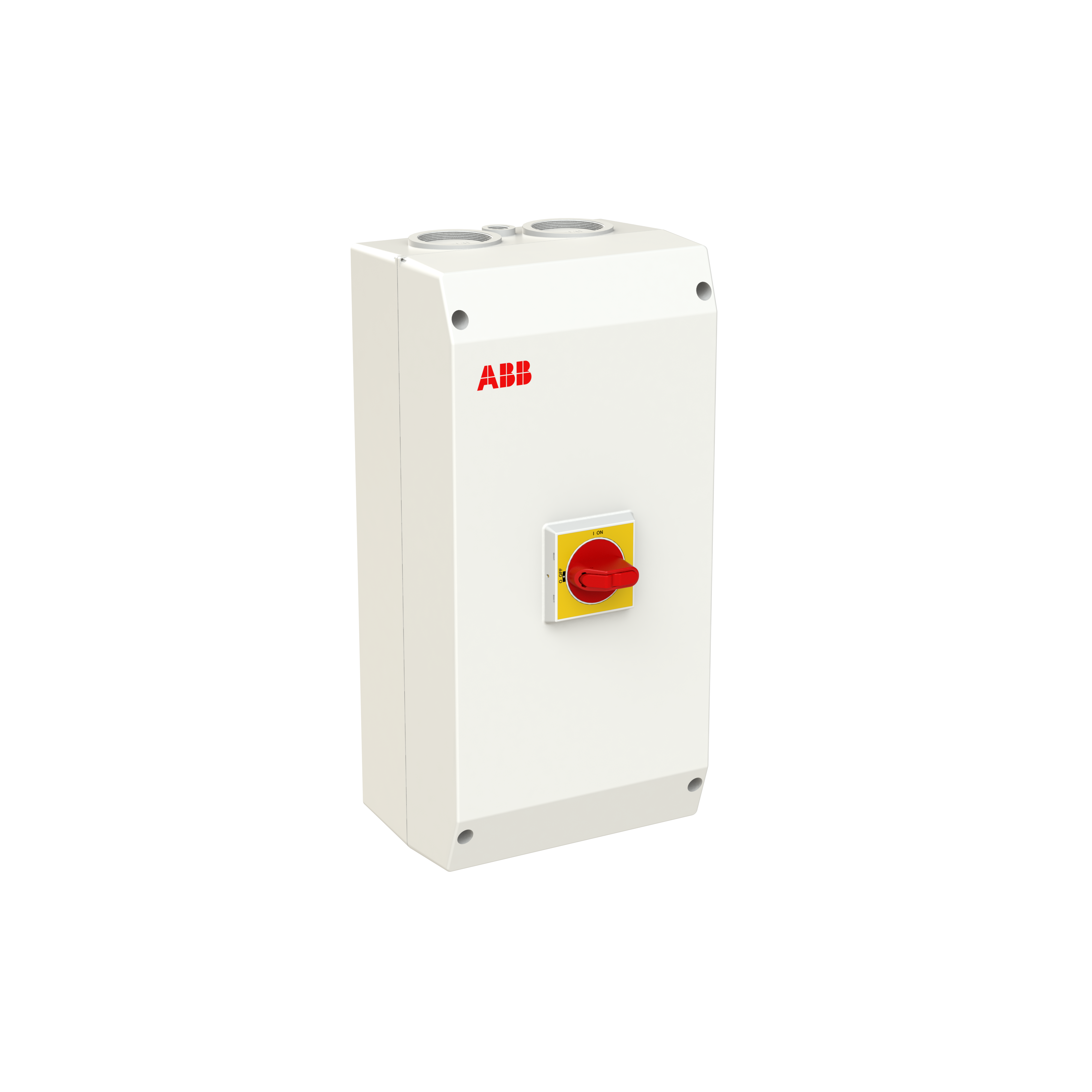

Maintenance switch, 4-p. 415V AC23 80A, 45kW. Mounted auxiliary contact: 0NO0NC. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 19 812.05 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 21 870.44 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 23 821.46 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 24 171.37 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 26 296.42 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 26 682.68 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 65 775.27 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 200 mm |
| Product Net Height | 400 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Weight | 2.22 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 197 mm |
| Package Level 1 Depth / Length | 213 mm |
| Package Level 1 Height | 417 mm |
| Package Level 1 Gross Weight | 2.44 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM50+M16 / 2xM50+M16 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm², Screw Clamp / PE Terminal 4pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Enclosure Material | Plastic |
| Enclosure Type | OTP3 |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Mechanical Durability | 200000 |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed and Switchable Neutral |
| Number of Auxiliary Contacts NC | 4 |
| Number of Auxiliary Contacts NO | 4 |
| Number of Poles | 4P |
| Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 4.6 W, Total 13.8 W |
| Rated Conditional Short-Circuit Current (Inc) | 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 80 A, (500 V) 80 A, (690 V) 80 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A, (500 V) 58 A, (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 45 kW, (500 V) 37 kW, (690 V) 37 kW |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.5 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA, for 0.2 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | 0 |
| Standards | IEC 60947-3, IEC62626-1/cl.0, IEC60529, IEC62262 |
| Switches Operating Mechanism | On the Front of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 2 |
| Wire Stripping Length | Main Circuit 18 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 36 |
| extended_product_type | OTP80GBA4M |
