Артикул: 1SCA164256R1001 · Производитель: ABB · EAN: 6417019934938

1SCA164256R1001

Name: OTP80GB4M
Brand: ABB
SKU: 1SCA164256R1001
Availability: PreOrder

Под заказ

Наличие в РФ

нет в наличии

Склад в Китае

21 870.44 ₽

срок ≈1 мес. (38 дн.)

Склад в Европе

19 812.05 ₽

срок ≈1 мес. (38 дн.)

Запросить цену / заказать

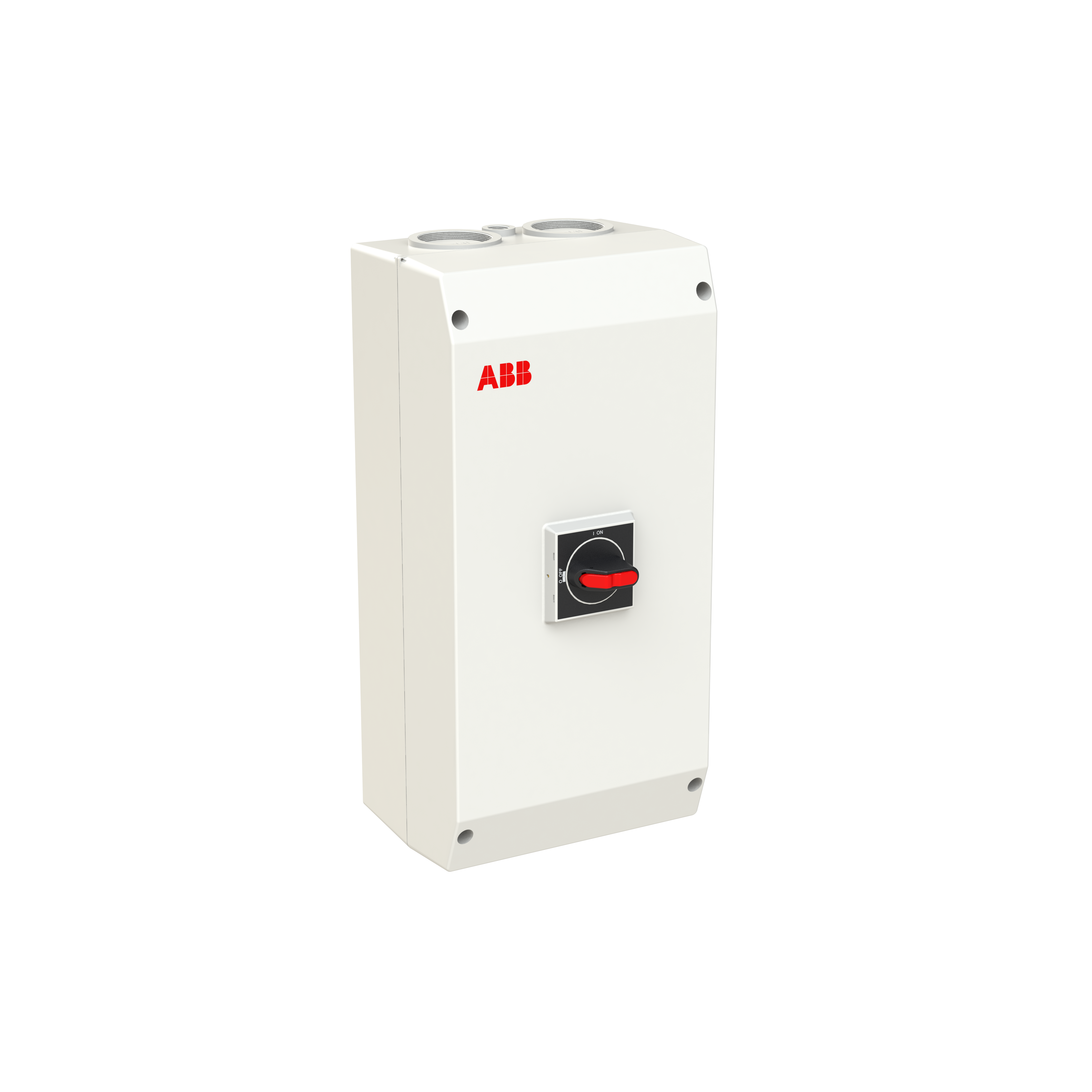

Maintenance switch, 4-p. 415V AC23 80A, 45kW. Mounted auxiliary contact: 0NO0NC. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. Cable entry holes to be made by the installer. The handle is padlockable and made for three padlocks. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.

Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Склад в Европе	19 812.05 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Китае	21 870.44 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Европе	23 821.46 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Европе	24 171.37 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Китае	26 296.42 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Китае	26 682.68 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Европе	65 775.27 ₽	уточняется	под заказ	—	Заказать

Характеристики

countryOfOrigin	Finland
countryOfAssembly	Finland
countryOfLastProcessing	Finland
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Degree of Protection	acc. to IEC 60529 IP65
Pollution Degree	3
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country of Origin	Finland
Product Net Width	200 mm
Product Net Height	400 mm
Product Net Depth / Length	140 mm
Product Net Weight	2.22 kg
Package Level 1 Units	box 1 piece
Package Level 1 Width	197 mm
Package Level 1 Depth / Length	213 mm
Package Level 1 Height	417 mm
Package Level 1 Gross Weight	2.44 kg
Cable Entry Position	Top/Bottom
Cable Outlets Per Side	2xM50+M16 / 2xM50+M16
Connecting Capacity Main Circuit	Screw Clamp 1.5 ... 35 mm², Screw Clamp / PE Terminal 4pc 10 ... 70 mm²
Conventional Thermal Current (Ithe)	Fully Enclosed 80 A
Enclosure Material	Plastic
Enclosure Type	OTP3
Handle Color	Black
Handle Type	Selector
Impact Resistance Rating	Housing IK08
Maximum Mounted Auxiliary Contacts	4 NO, 4 NC
Mechanical Durability	200000
Mounted Auxiliary Contacts	0 NO, 0 NC
Neutral Type	Fixed and Switchable Neutral
Number of Auxiliary Contacts NC	4
Number of Auxiliary Contacts NO	4
Number of Poles	4P
Position of Line Terminals	Top In - Bottom Out
Power Loss	at Rated Operating Conditions per Pole 3.4 W, Total 10.2 W
Rated Conditional Short-Circuit Current (Inc)	50 kA
Rated Impulse Withstand Voltage (Uimp)	acc. to IEC 60947-2 8 kV
Rated Insulation Voltage (Ui)	acc. to IEC 60947-1 800 V
Rated Operational Current AC-22A (Ie)	(380 ... 415 V) 80 A, (500 V) 80 A, (690 V) 80 A
Rated Operational Current AC-23A (Ie)	(380 ... 415 V) 80 A, (500 V) 58 A, (690 V) 40 A
Rated Operational Power AC-23A (Pe)	(380 ... 415 V) 45 kW, (500 V) 37 kW, (690 V) 37 kW
Rated Operational Voltage	Main Circuit 800 V
Rated Short-Circuit Making Capacity (Icm)	(690 V) 3.5 kA
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 1.5 kA, for 0.2 s 2.5 kA
Recommended Screw Driver	Main Circuit Hexagon 4
Special Functions	0
Standards	IEC 60947-3, IEC62626-1/cl.0, IEC60529, IEC62262
Switches Operating Mechanism	On the Front of the Switch
Terminal Type	Screw Terminals
Tightening Torque	acc. IEC 60947-1 2
Wire Stripping Length	Main Circuit 18 mm
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122205
IDEA Granular Category Code (IGCC)	5166 >> Safety switch
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	36
extended_product_type	OTP80GB4M
