Артикул: 1SCA161985R1001
· Производитель: ABB
· EAN: 6417019920726
1SCA161985R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
52 521.81 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
47 578.58 ₽
срок ≈1 мес. (38 дн.)

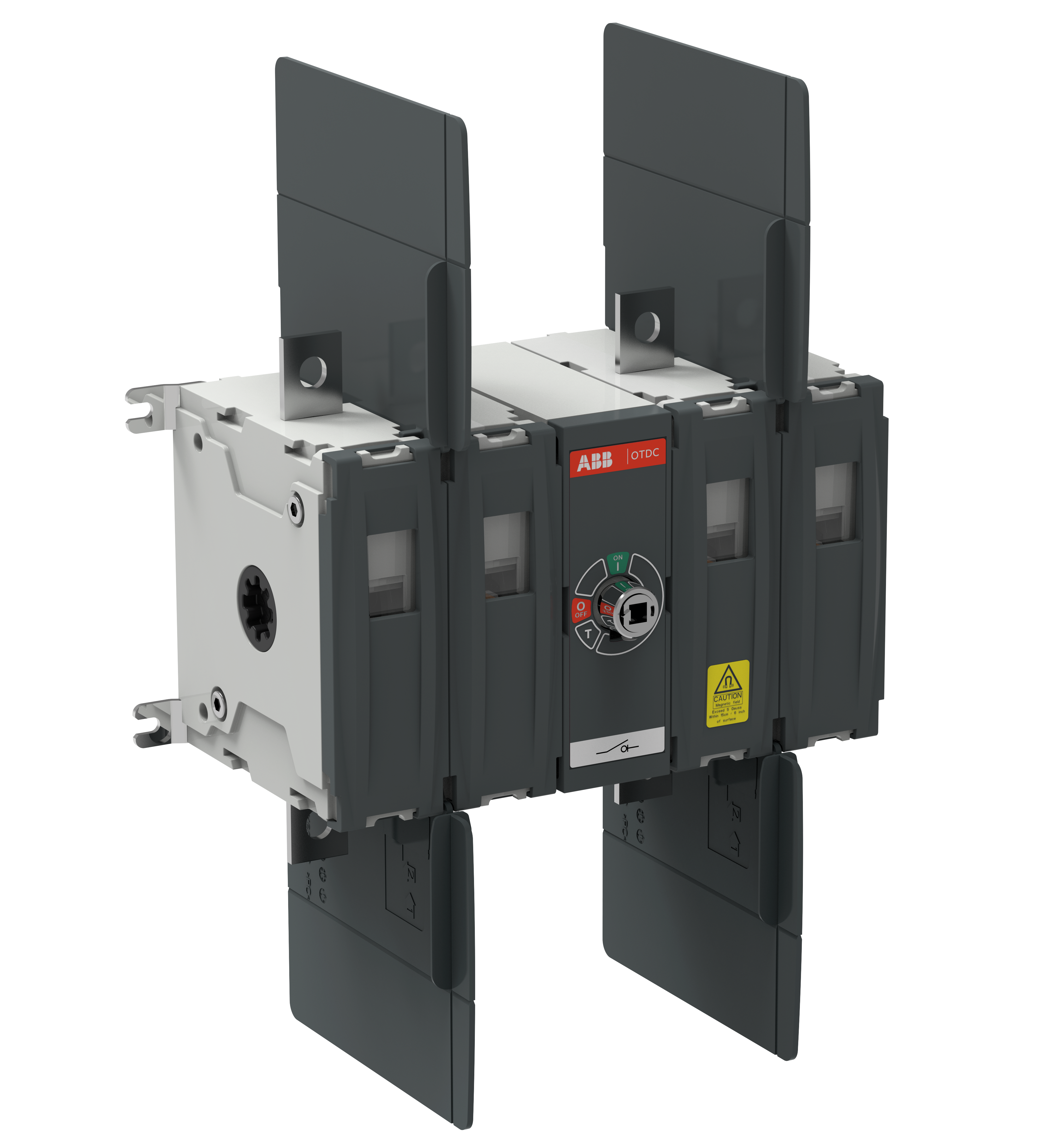

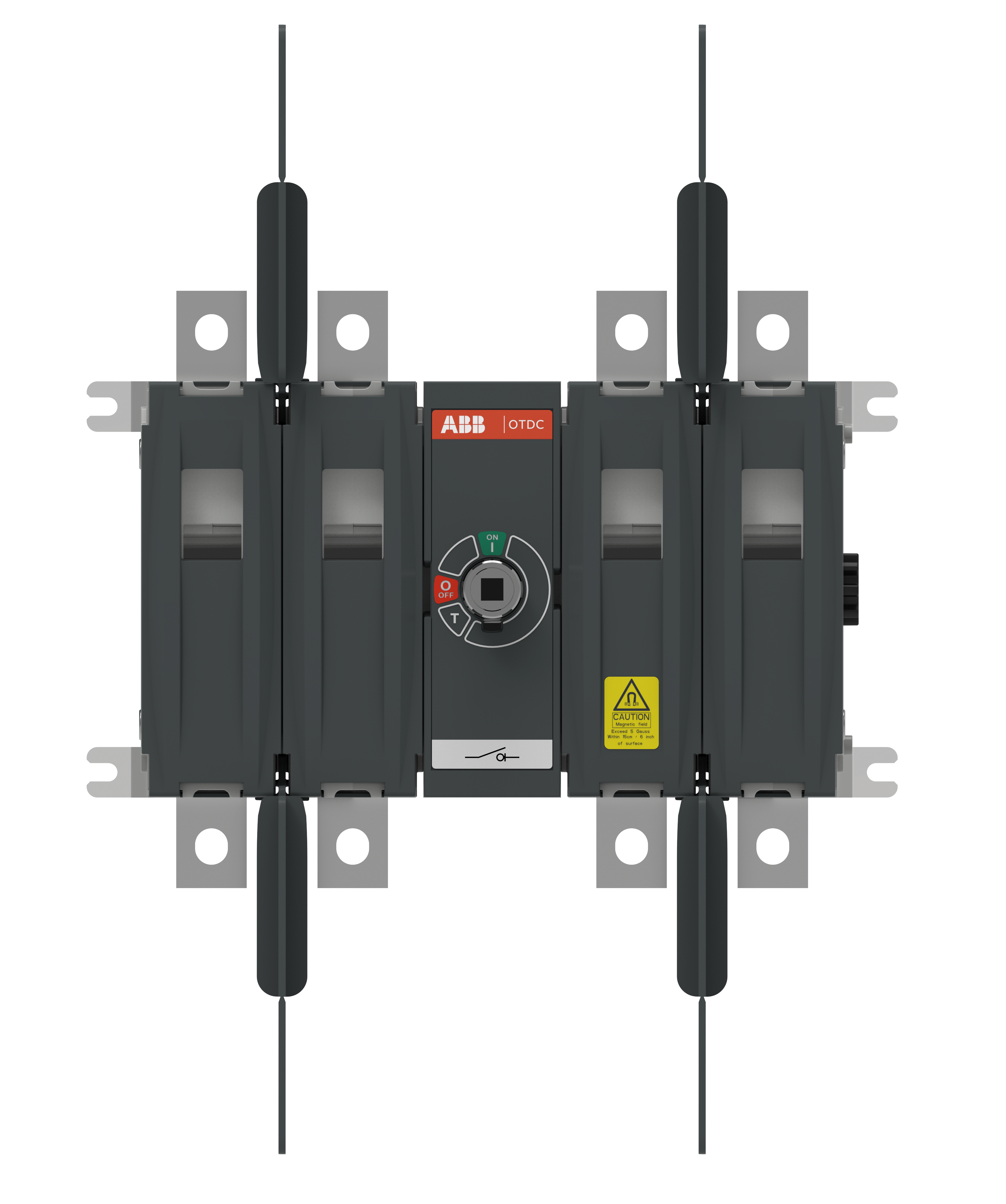

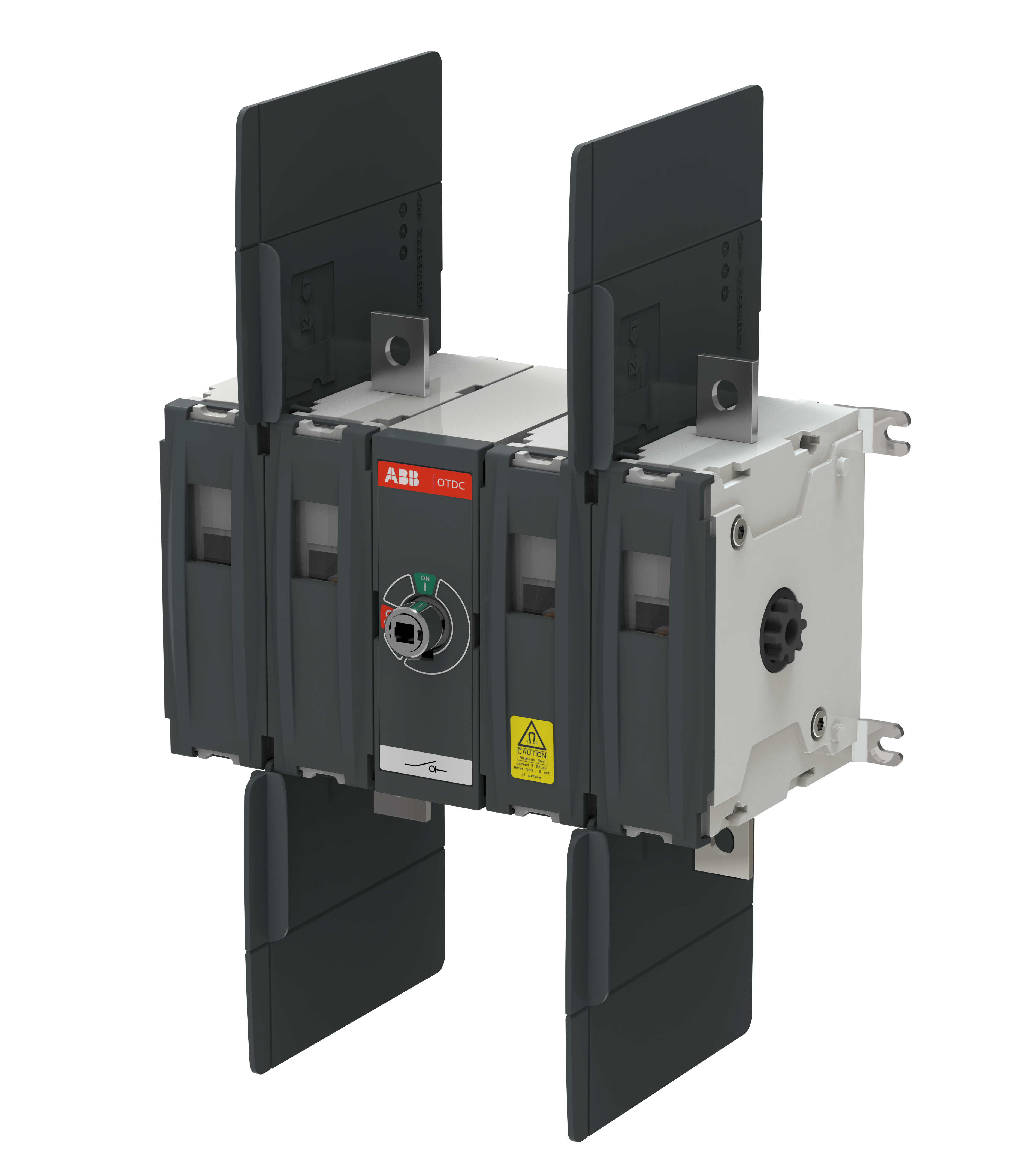

A fully optimized four-pole DC switch-disconnector to operate 2 circuits with single switch. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 47 578.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 51 270.64 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 52 521.81 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 54 716.69 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 56 597.46 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 60 401.55 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 75 481.21 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 50.7 % |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 2 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country of Origin | Finland |
| Product Frame Size | S2.0 |
| Product Net Width | 224 mm, 8.8 in |
| Product Net Height | 165 mm, 6.5 in |
| Product Net Depth / Length | 120 mm, 4.7 in |
| Product Net Weight | 3 kg, 6.5 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 220 mm, 8.7 in |
| Package Level 1 Depth / Length | 260 mm, 10.2 in |
| Package Level 1 Height | 155 mm, 6.1 in |
| Package Level 1 Gross Weight | 3.3 kg, 7.3 lb |
| Connection Configuration | Double circuit 4a, 4c |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Mechanical Durability | 10000 cycle |
| Mounting Type | Base mounting |
| Number of Circuits | 2 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Positive Opening Operation Torque (Direct Opening Action) | 6 … 9 N·m |
| Power Loss | at Rated Operating Conditions per Pole 3.1 ... 3.5 W, Total 12.4 ... 14 W |
| Protection Type | Circuit breaker |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-21B (Ie) | (1500 V) 160 A |
| Rated Operational Current DC-PV1 | (1500 V) 160 A |
| Rated Operational Current DC-PV2 | (1500 V) 100 A |
| Rated Operational Voltage | 1500 V |
| Rated Short-Circuit Making Capacity (Icm) | (1500 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1500 V DC) 10 kA, for 1 s 10 kA |
| Shaft Diameter | 6 mm, 0.24 in |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles, 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 19.5 mm, 0.77 in |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B), Switching of single PV string(s) without reverse and overcurrents (DC-PV1), Switching of several PV string(s) with reverse and overcurrents (DC-PV2) |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OTDC160GV22 |
| category_paths | Products > Low Voltage Products and Systems > Switches > DC Switch-Disconnectors |
