Артикул: 1SCA161767R1001
· Производитель: ABB
· EAN: 6417019918549
1SCA161767R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
229 540.08 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
207 936.31 ₽
срок ≈4 мес. (122 дн.)

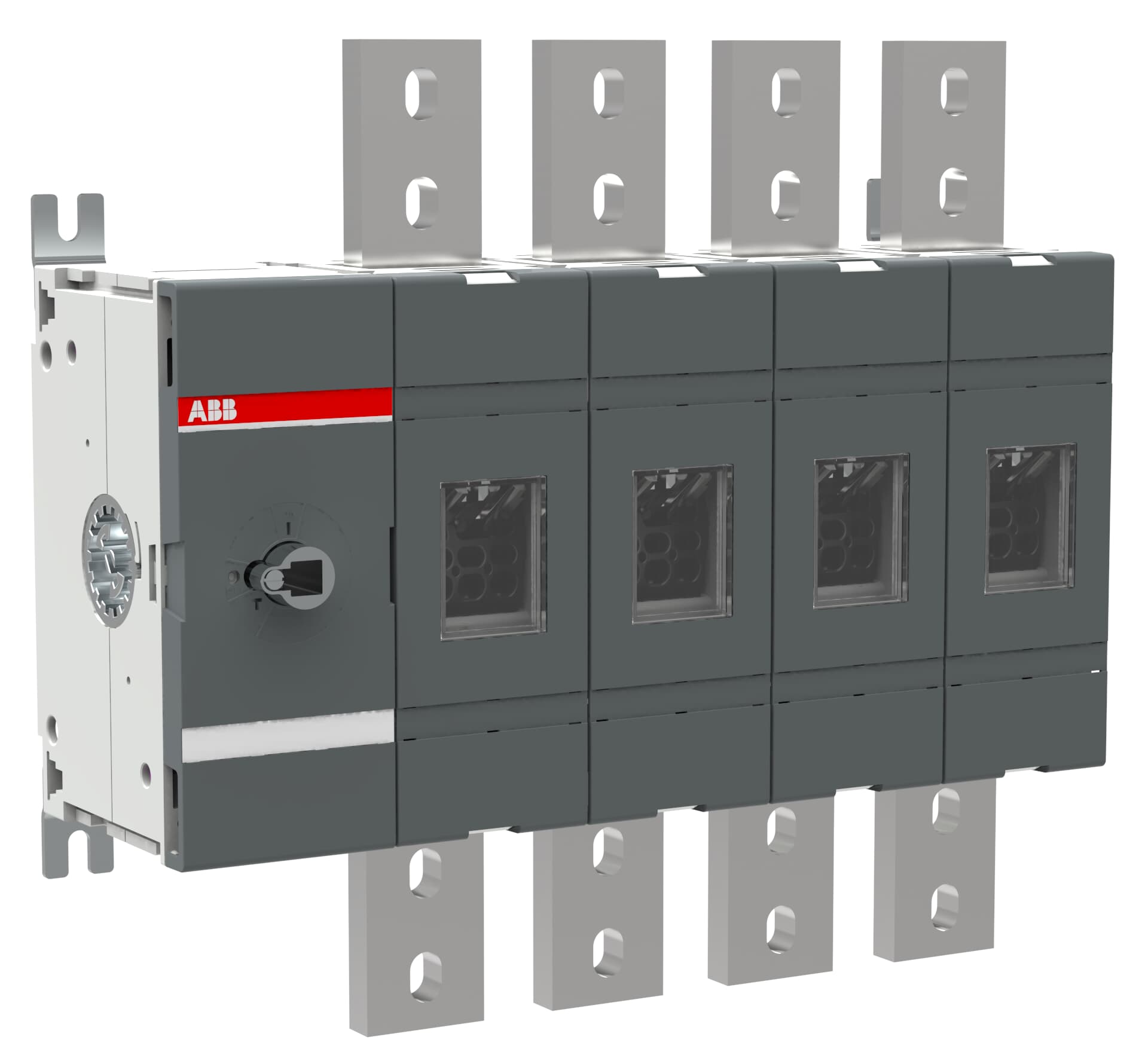

Base mounting 4-pole, front operated Compact switch-disconnector, handle and shaft not included, lug terminal , bolt kit included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 207 936.31 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 208 013.90 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 209 807.89 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 229 540.08 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 229 625.73 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 231 606.11 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 308 067.27 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 414.5 mm |
| Product Net Height | 372 mm |
| Product Net Depth / Length | 167 mm |
| Product Net Weight | 21.6 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| Package Level 1 Depth / Length | 400 mm |
| Package Level 1 Height | 435 mm |
| Package Level 1 Gross Weight | 22.6 kg |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2000 A |
| Mechanical Durability | 6000 |
| Number of Poles | 4P |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2000 A |
| Rated Short-Circuit Making Capacity (Icm) | (400 V) 92 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Standards | IEC 60947-3 |
| Terminal Type | Lug terminals |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT2000EC04 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
