Артикул: 1SCA161288R1001
· Производитель: ABB
· EAN: 6417019913902
1SCA161288R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
184 318.09 ₽
срок ≈1 мес. (59 дн.)
Склад в Европе
166 970.51 ₽
срок ≈1 мес. (59 дн.)

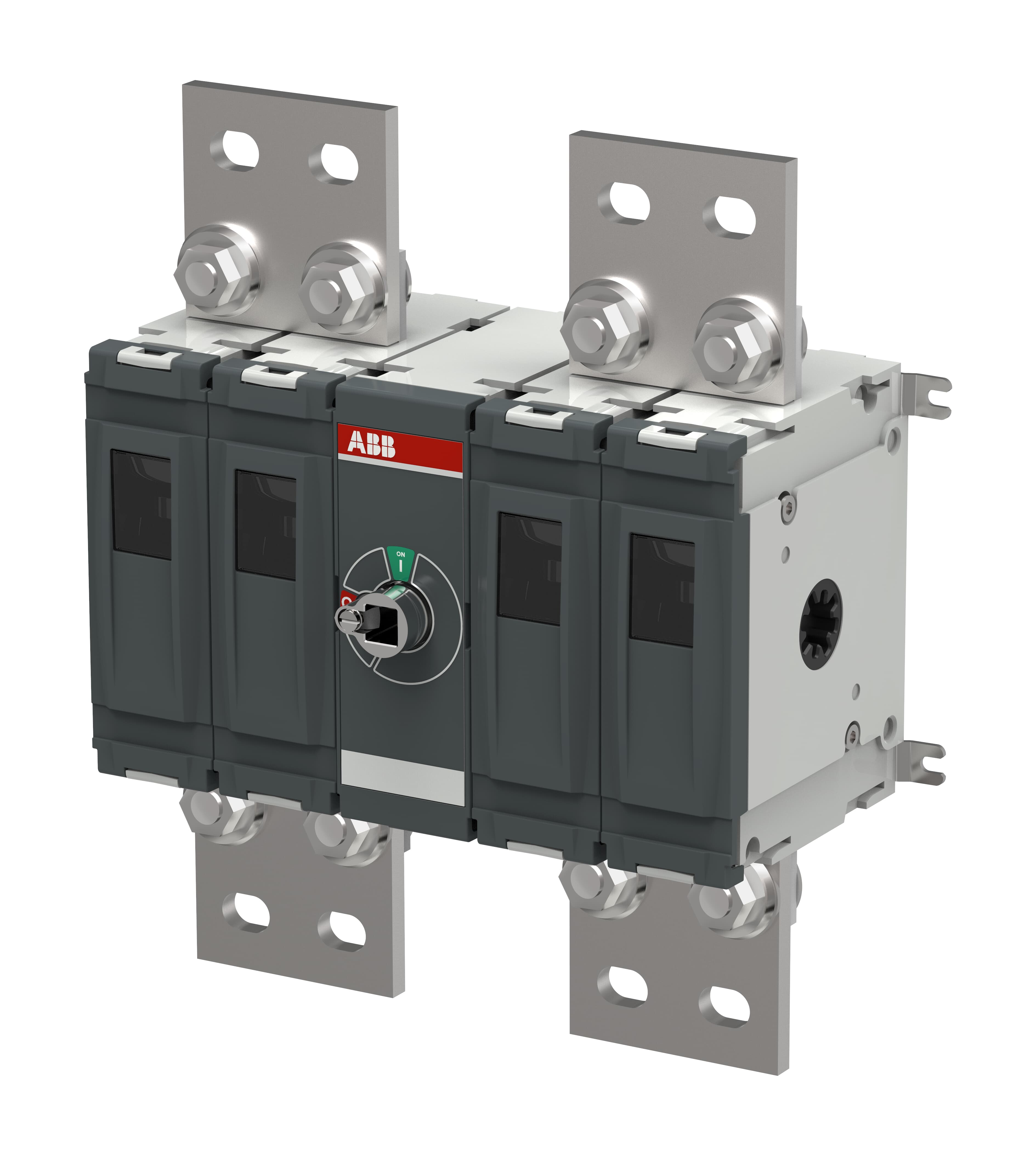

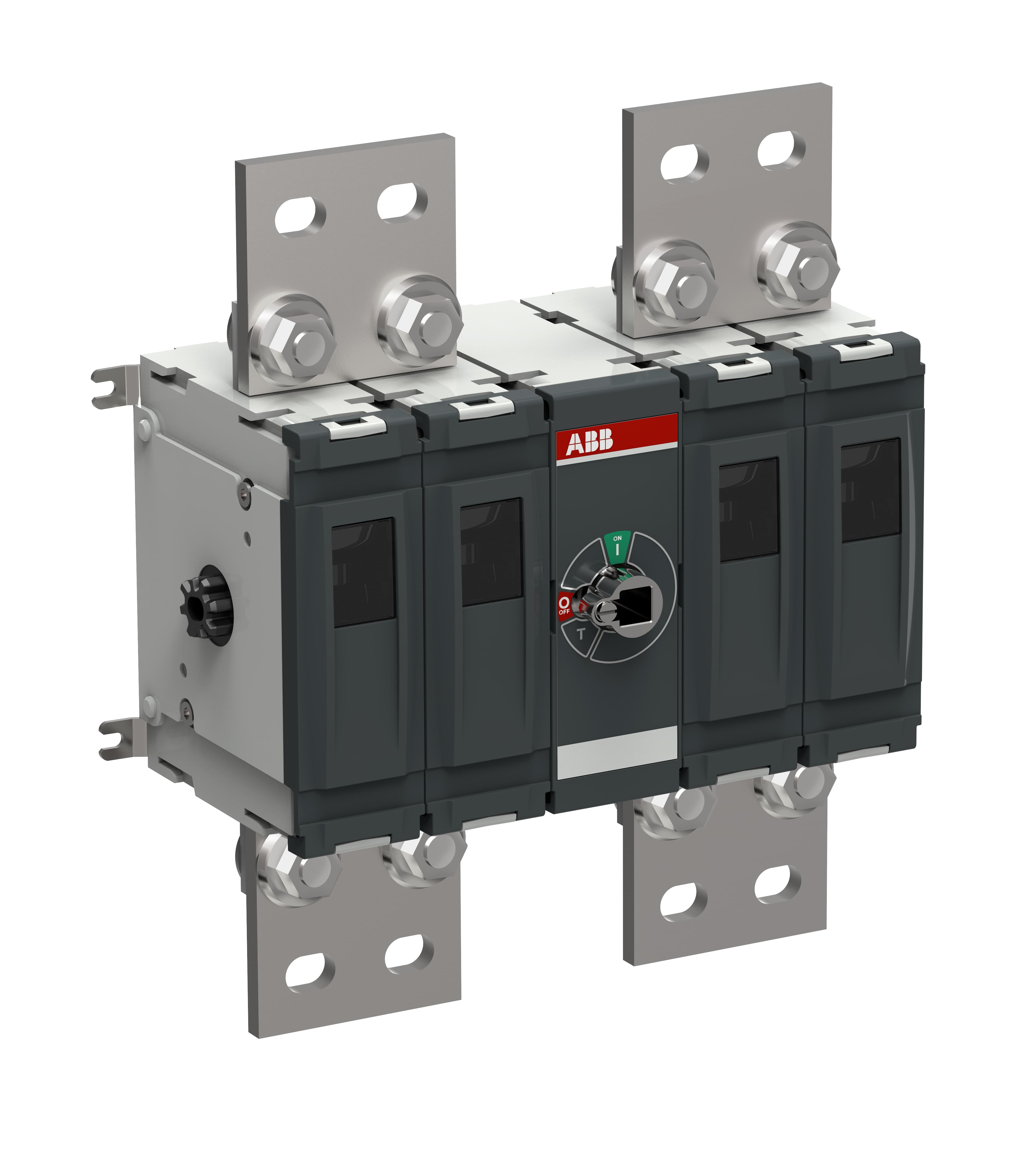

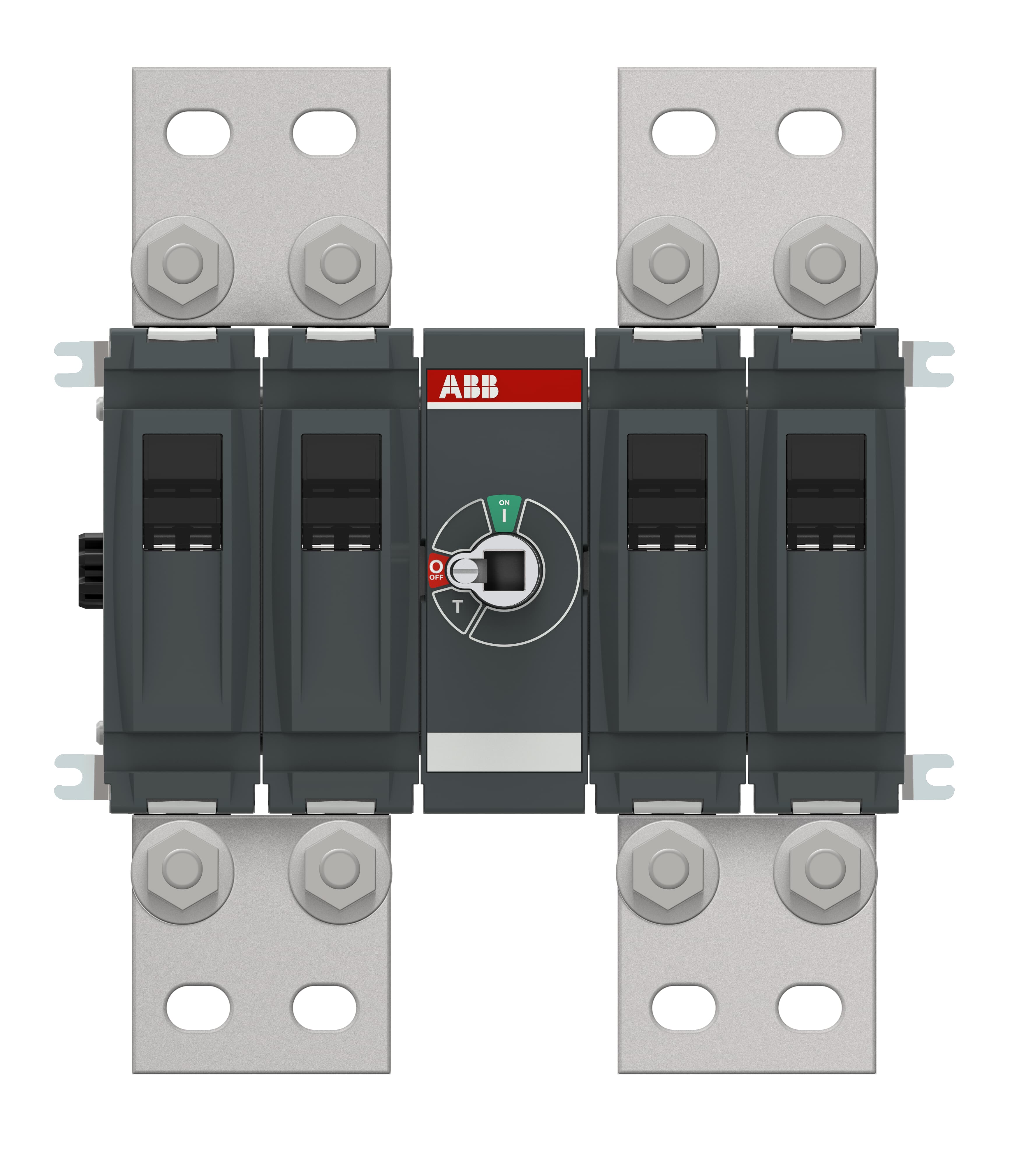

A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-1000A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.
The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.
Main characteristics of this particular OTDC type:
Disconnect double PV circuit, Approved according to IEC 60947-1, -3
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 166 970.51 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 178 191.65 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 184 318.09 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 196 705.07 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 199 793.19 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 208 044.17 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 229 659.15 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.09 % |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country of Origin | Finland, India |
| Product Frame Size | M |
| Product Net Width | 255.5 mm, 10.1 in |
| Product Net Height | 211 mm, 8.3 in |
| Product Net Depth / Length | 135 mm, 5.3 in |
| Product Net Weight | 9.7 kg, 21.3 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm, 10.6 in |
| Package Level 1 Depth / Length | 310 mm, 12.2 in |
| Package Level 1 Height | 200 mm, 7.9 in |
| Package Level 1 Gross Weight | 10 kg, 22 lb |
| Connection Configuration | Single circuit 6c, 6g |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1000 A |
| Mounting Type | Base Mounting |
| Number of Circuits | 1 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Positive Opening Operation Torque (Direct Opening Action) | 18 … 30 N·m |
| Power Loss | at Rated Operating Conditions per Pole 30 ... 32 W, Total 120 ... 128 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Current DC-21B (Ie) | (1500 V) 1000 A |
| Rated Operational Voltage | 1500 V |
| Rated Short-Circuit Making Capacity (Icm) | (1500 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1500 V DC) 10 kA, for 1 s 10 kA |
| Shaft Diameter | 12 mm, 0.47 in |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles, 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 30 mm, 1.2 in |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B), Switching of single PV string(s) without reverse and overcurrents (DC-PV1) |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OTDC1000FV22 |
| category_paths | Products > Low Voltage Products and Systems > Switches > DC Switch-Disconnectors |
