Артикул: 1SCA152737R1001
· Производитель: ABB
· EAN: 6417019839356
1SCA152737R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
30 958.59 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
41 197.43 ₽
срок ≈1 мес. (38 дн.)

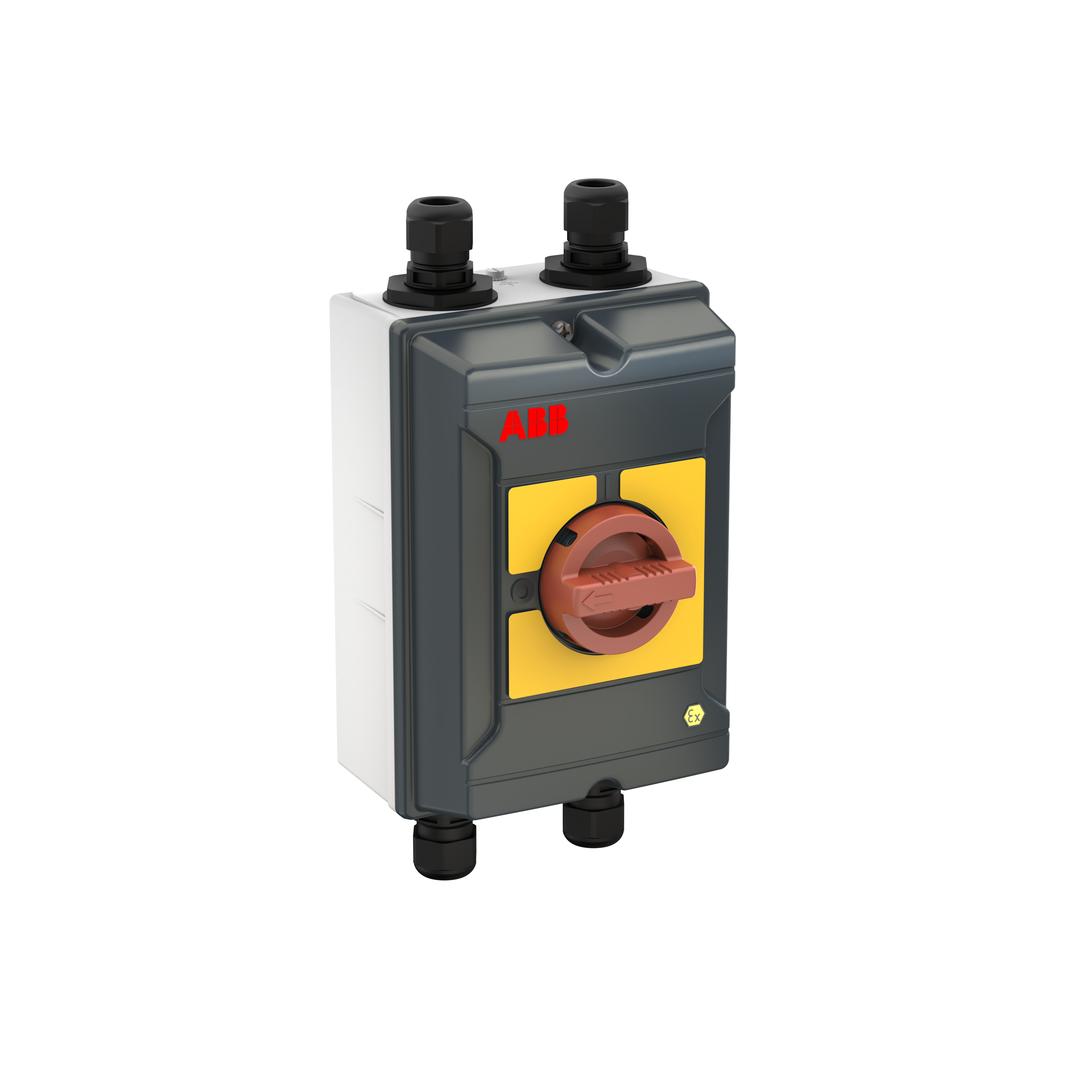

ATEX EMC Safety switch, 4-p. 415V AC23 63A, 22kW. Mounted auxiliary contact: 1NO0NC. Aluminium enclosure. IP65. RedYellow Round handle. Interlocked cover. ATEX enclosed safety switches are designed for a potentially explosive atmosphere and are made according to ATEX directive 2014/34/EU. The ATEX class is Ex tc III T70⁰C Dc, used in zone 22. Typical applications for ATEX switches are refineries, mills, conveyor belt in hazardous areas, and dusty environments. The products are delivered with ATEX cable glands. The switches can be used in EMC environment, when used together with EMC cable glands.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 30 958.59 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 34 787.00 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 41 197.43 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 43 171.20 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 45 477.68 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 47 656.51 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 48 810.15 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 52 629.60 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 53 571.99 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 59 137.91 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 70 846.59 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Bulgaria |
| countryOfAssembly | Bulgaria |
| countryOfLastProcessing | Bulgaria |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTA63GS4YX |
| Country of Origin | Bulgaria |
| Product Net Width | 160 mm |
| Product Net Height | 230 mm |
| Product Net Depth / Length | 118 mm |
| Product Net Weight | 2.15 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| Package Level 1 Depth / Length | 240 mm |
| Package Level 1 Height | 150 mm |
| Package Level 1 Gross Weight | 2.15 kg |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM40 / 2xM40+M16 |
| Color | RAL7012 / RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm², Screw Clamp / PE Terminal 1pc 6 ... 35 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Enclosure Material | Aluminium |
| Enclosure Type | Frontex2 |
| Handle Color | Red / Yellow |
| Handle Type | Round |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mechanical Durability | 20000 |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 4P |
| Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W, Total 8.4 W |
| Rated Conditional Short-Circuit Current (Inc) | 13 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 63 A, (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A, (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A, (500 V) 45 A, (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 22 kW, (500 V) 22 kW, (690 V) 15 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA, for 0.2 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
