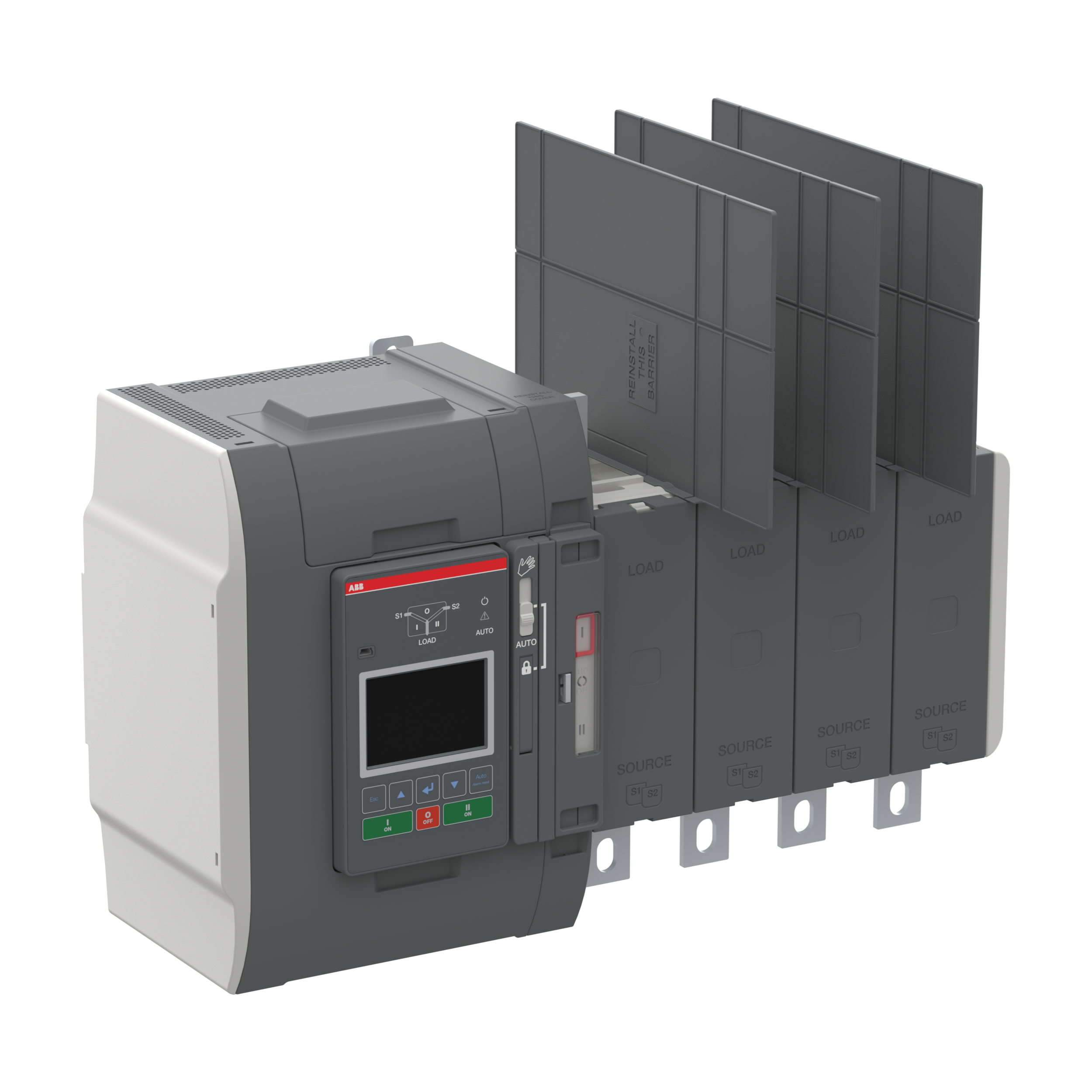

Артикул: 1SCA151741R1001
· Производитель: ABB
· EAN: 6417019822624
1SCA151741R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
325 137.95 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
456 138.99 ₽
срок ≈1 мес. (38 дн.)
The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit.
Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times.
Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability.
Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.
Every TruONE features a wide voltage range from 200 to 480 VAC (with +/-20% tolerance), reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.
Main characteristics of this particular TruONE type:
Open style ATS, delayed transition type I-O-II operation, Level 3 controller (LCD)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 325 137.95 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 456 138.99 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 471 478.74 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 500 712.45 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 503 530.05 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 536 637.66 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 552 734.52 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 592 392.23 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 725 351.90 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 70.2 % |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Product Net Width | 512 mm, 20.16 in |
| Product Net Height | 313 mm, 12.32 in |
| Product Net Depth / Length | 212 mm, 8.35 in |
| Product Net Weight | 21.4 kg, 47.18 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 345 mm, 13.58 in |
| Package Level 1 Depth / Length | 565 mm, 22.24 in |
| Package Level 1 Height | 240 mm, 9.45 in |
| Package Level 1 Gross Weight | 22.2 kg, 48.94 lb |
| Controller Type | Level 3 (LCD) |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 500 A |
| Fourth Pole Position | Left and Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Number of Poles | 4P |
| Position of Line Terminals | Supplies on Bottom - Load on Top |
| Power Loss | at Rated Operating Conditions per Pole 17.2 W, Total 51.6 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 415 V AC) 500 A |
| Rated Operational Current AC-32B (Ie) | (200 … 415 V AC) 500 A |
| Rated Operational Current AC-33B (Ie) | (200 … 415 V AC) 500 A |
| Rated Operational Voltage | Main Circuit 200...480 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 42 kiloampere rms |
| Special Functions | Open style |
| Standards | IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OXB500E3S3QB |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Automatic Transfer Switches TruONE |
