Артикул: 1SCA151422R1001
· Производитель: ABB
· EAN: 6417019818276
1SCA151422R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
58 045.51 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
78 265.65 ₽
срок ≈1 мес. (38 дн.)

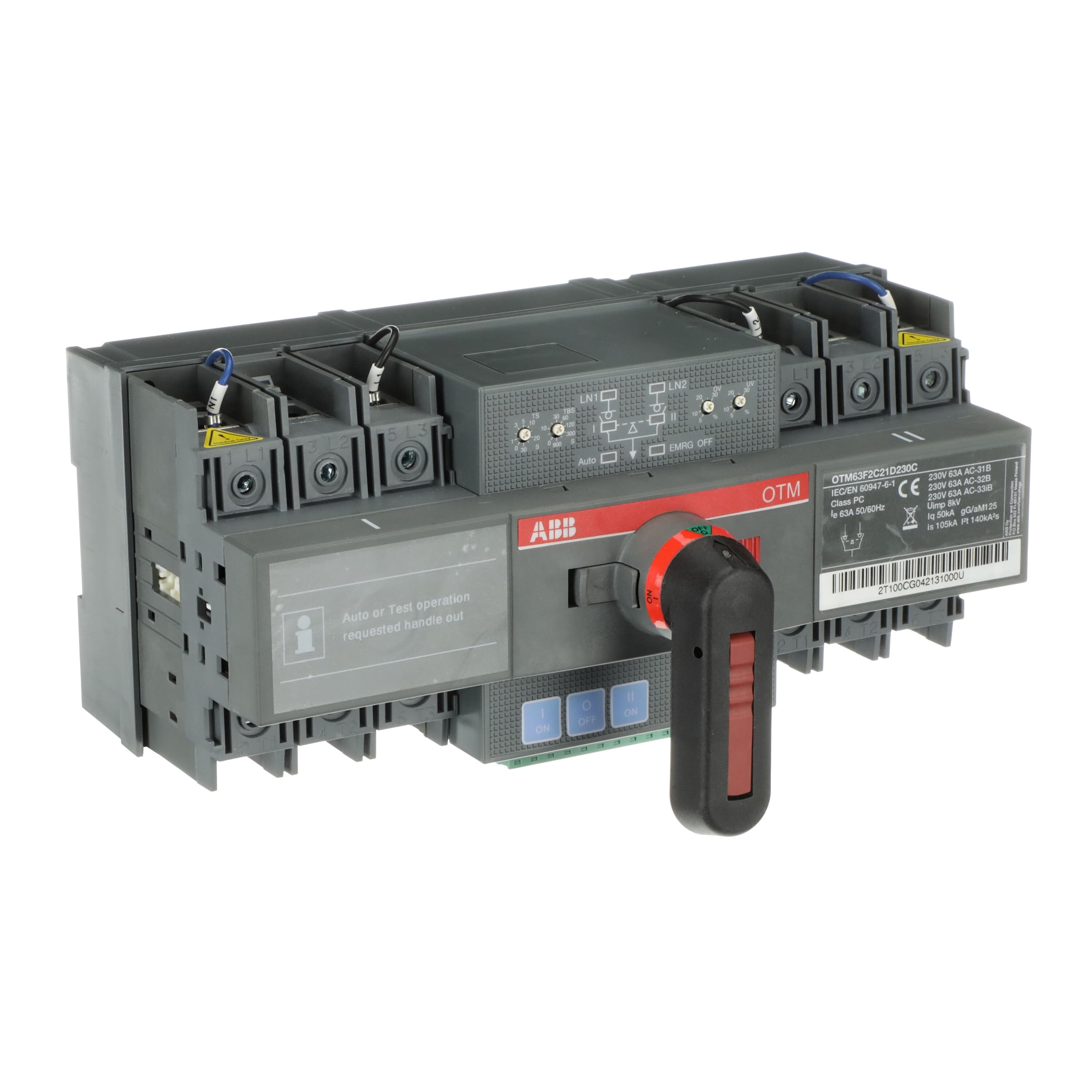

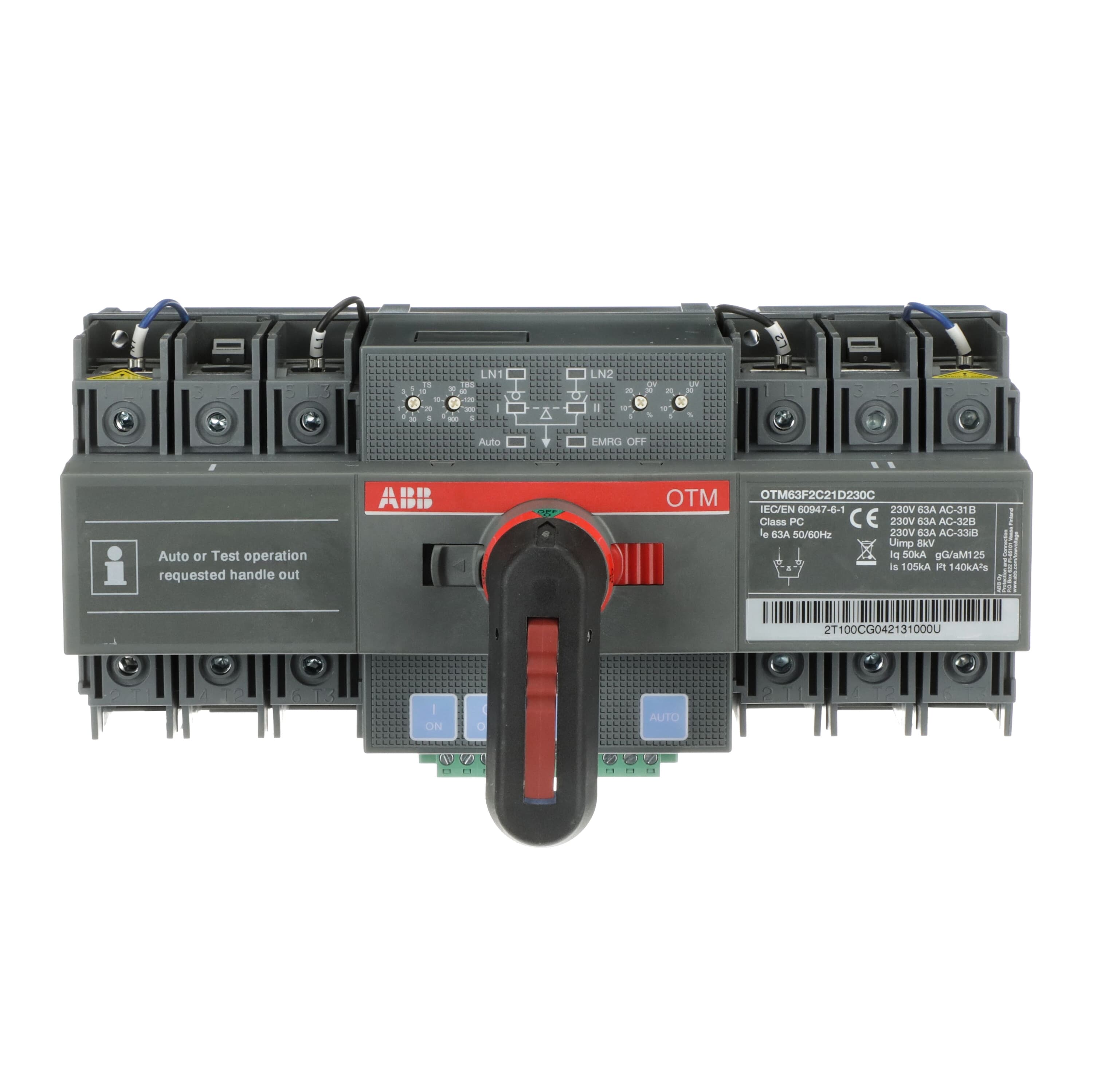

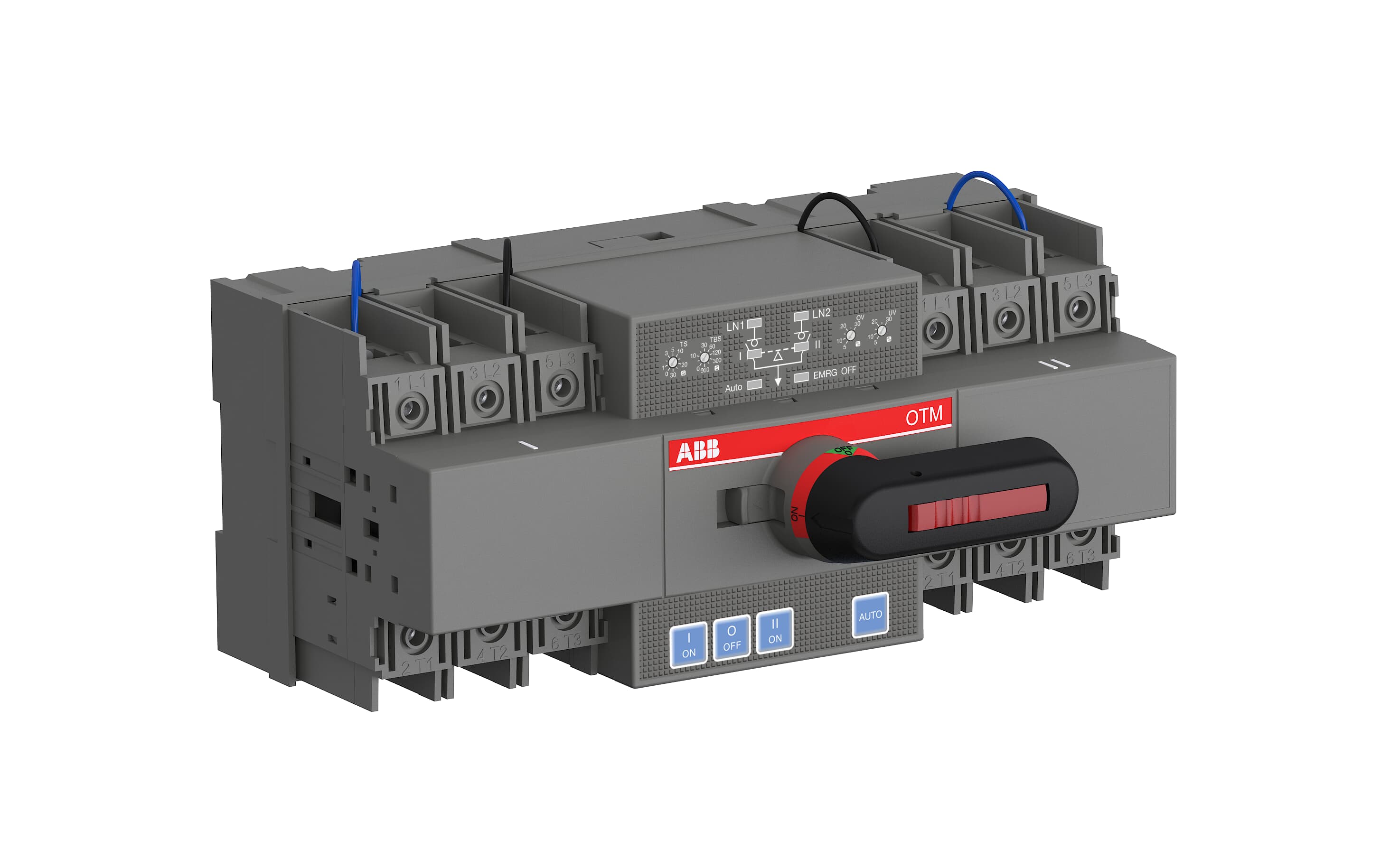

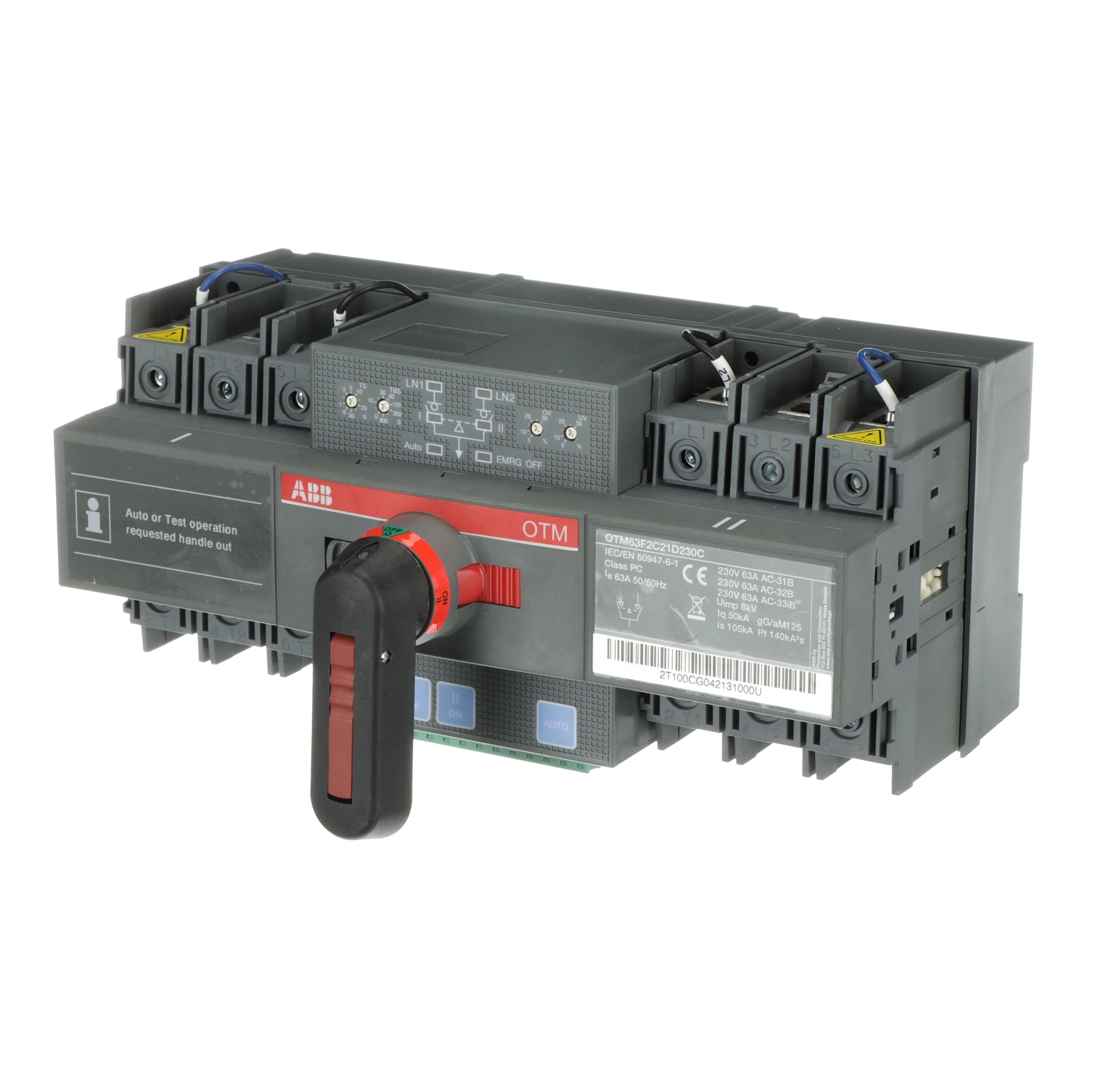

Automatic transfer switch, motor operated, open transition type 1-0-2. Self-supplied unit with adjustable operating parameters.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 58 045.51 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 65 328.78 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 78 265.65 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 80 943.39 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 86 397.15 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 89 353.09 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 91 516.01 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 95 929.07 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 98 677.38 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 100 606.32 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 105 895.73 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 111 058.92 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 136 969.77 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | China |
| countryOfAssembly | China |
| countryOfLastProcessing | China |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | China |
| Product Net Width | 233 mm, 9.17 in |
| Product Net Height | 103 mm, 4.06 in |
| Product Net Depth / Length | 131 mm, 5.16 in |
| Product Net Weight | 1.85 kg, 4.08 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 103 mm |
| Package Level 1 Depth / Length | 275 mm |
| Package Level 1 Height | 168 mm |
| Package Level 1 Gross Weight | 2.05 kg |
| Controller Type | 21D |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Motor Operational Voltage | 220…240 V AC |
| Mounting Type | Base Mounting Or DIN-rail mounting |
| Number of Poles | 2P |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-32B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW |
| Rated Operational Voltage | Main Circuit 220…240 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3640451 |
| E-Number (Norway) | 4337510 |
| extended_product_type | OTM63F2C21D230C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Compact ATS |
