Артикул: 1SCA151421R1001
· Производитель: ABB
· EAN: 6417019818269
1SCA151421R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
54 750.78 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
73 228.10 ₽
срок ≈1 мес. (38 дн.)

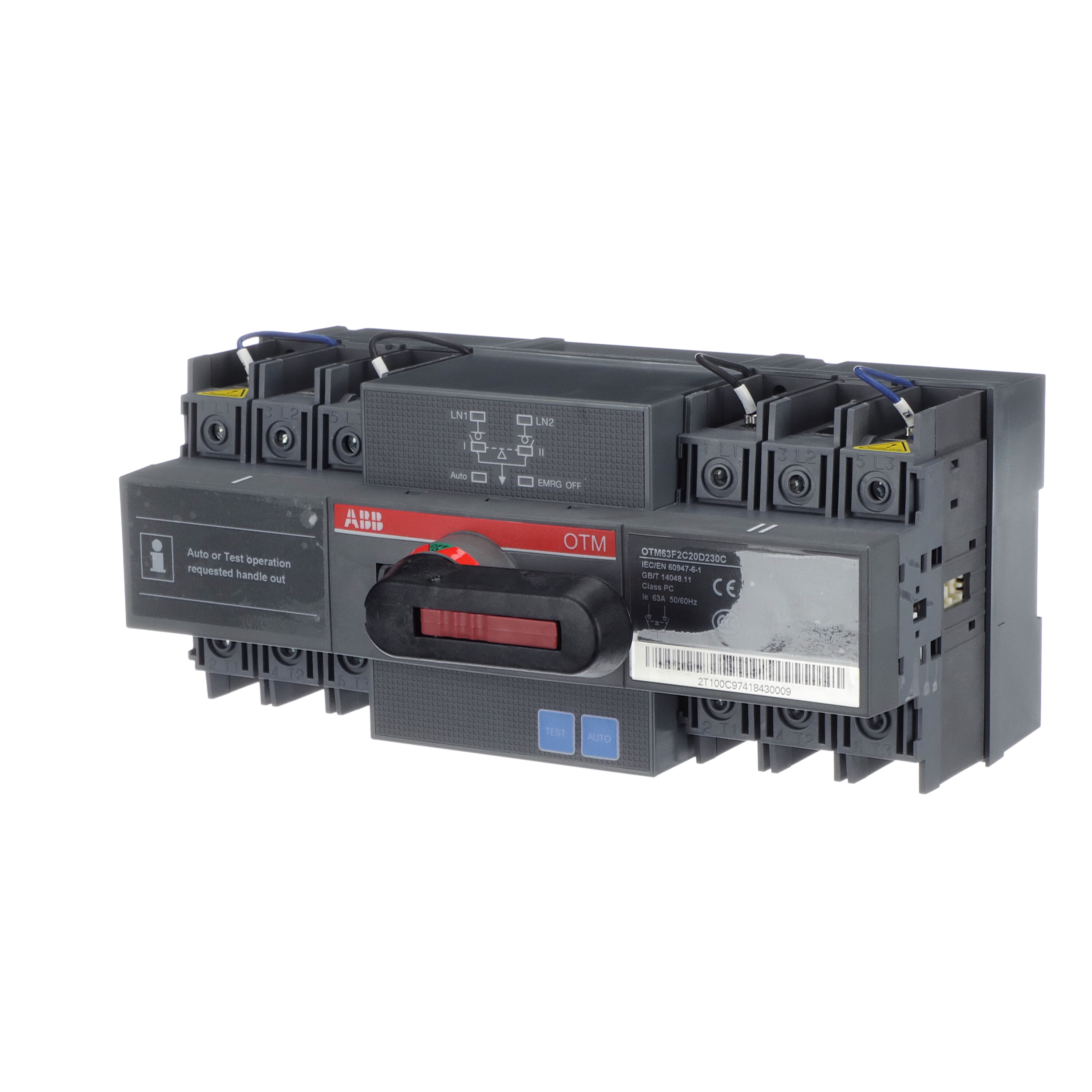

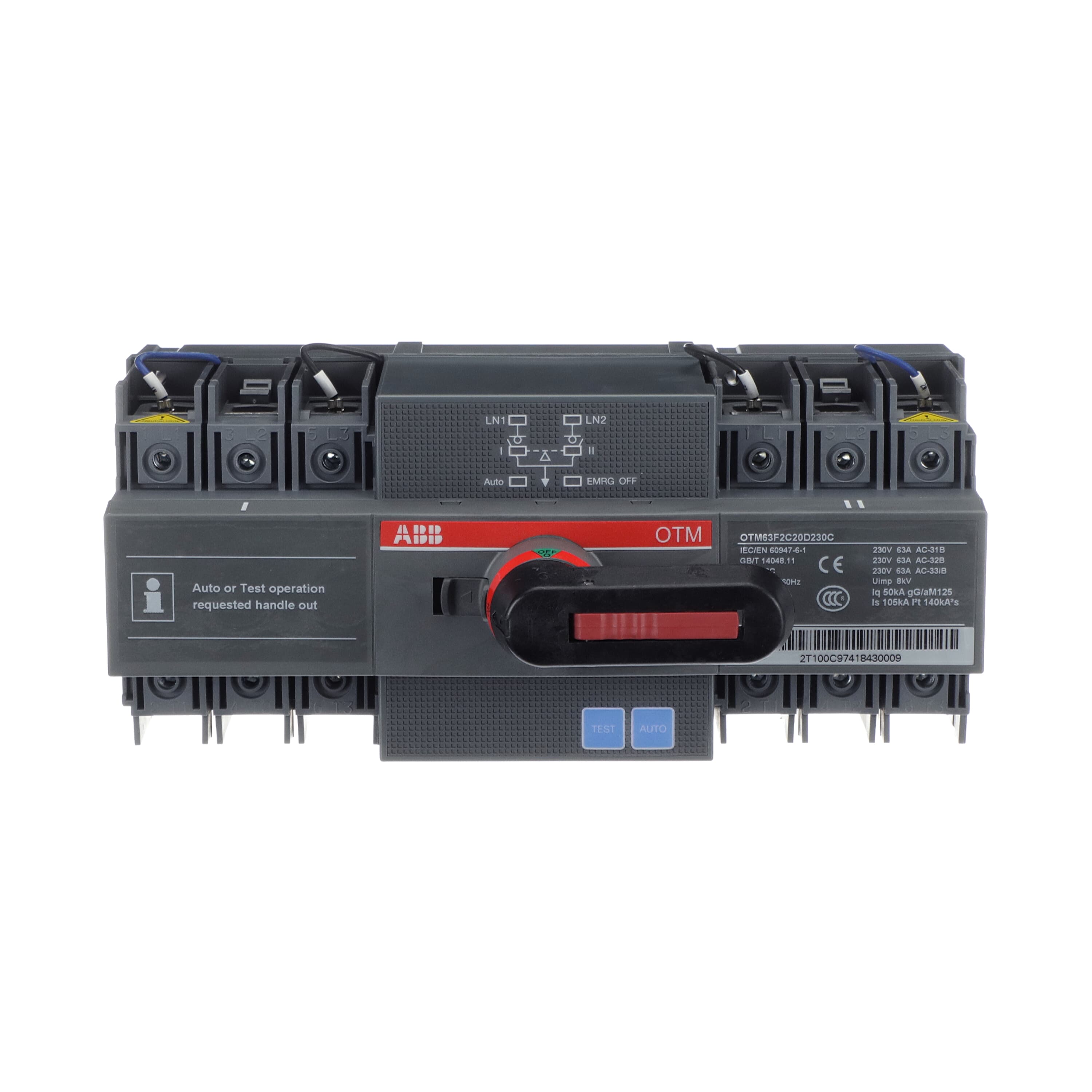

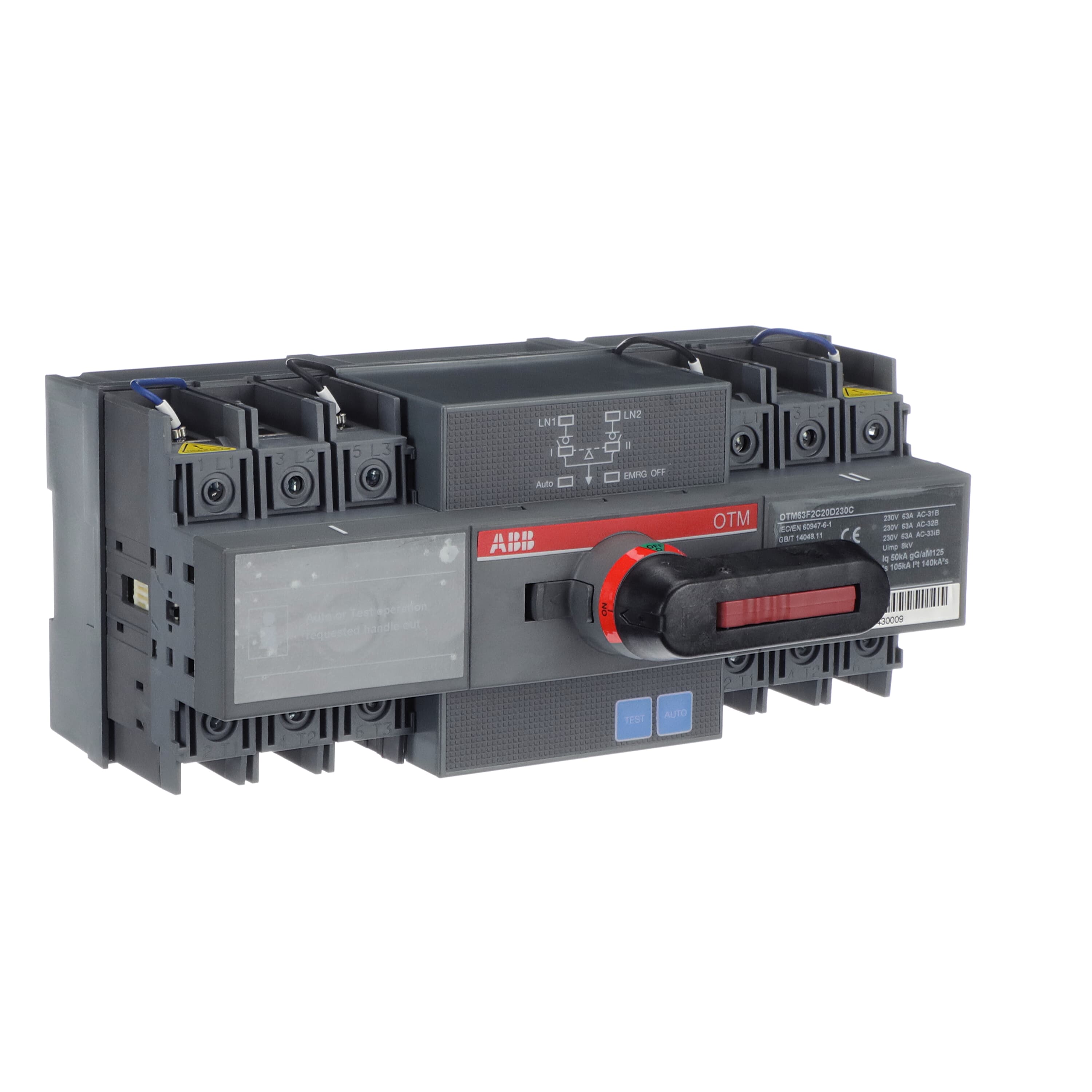

Automatic transfer switch, motor operated, open transition type 1-0-2. Self-supplied unit with fixed operating parameters.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 54 750.78 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 57 044.27 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 73 228.10 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 76 348.66 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 80 836.21 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 84 280.98 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 86 321.58 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 87 149.69 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 87 848.17 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 93 076.33 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 96 204.20 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 96 975.25 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 124 424.07 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | China |
| countryOfAssembly | China |
| countryOfLastProcessing | China |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | China |
| Product Net Width | 233 mm, 9.17 in |
| Product Net Height | 103 mm, 4.06 in |
| Product Net Depth / Length | 131 mm, 5.16 in |
| Product Net Weight | 1.75 kg, 3.86 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 275 mm |
| Package Level 1 Depth / Length | 168 mm |
| Package Level 1 Height | 140 mm |
| Package Level 1 Gross Weight | 1.95 kg |
| Controller Type | 20D |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Motor Operational Voltage | 220…240 V AC |
| Mounting Type | Base Mounting Or DIN-rail mounting |
| Number of Poles | 2P |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-32B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW |
| Rated Operational Voltage | Main Circuit 220…240 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3640444 |
| extended_product_type | OTM63F2C20D230C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Compact ATS |
