Артикул: 1SCA148617R1001
· Производитель: ABB
· EAN: 6417019781471
1SCA148617R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
71 293.63 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
64 583.64 ₽
срок ≈4 мес. (122 дн.)

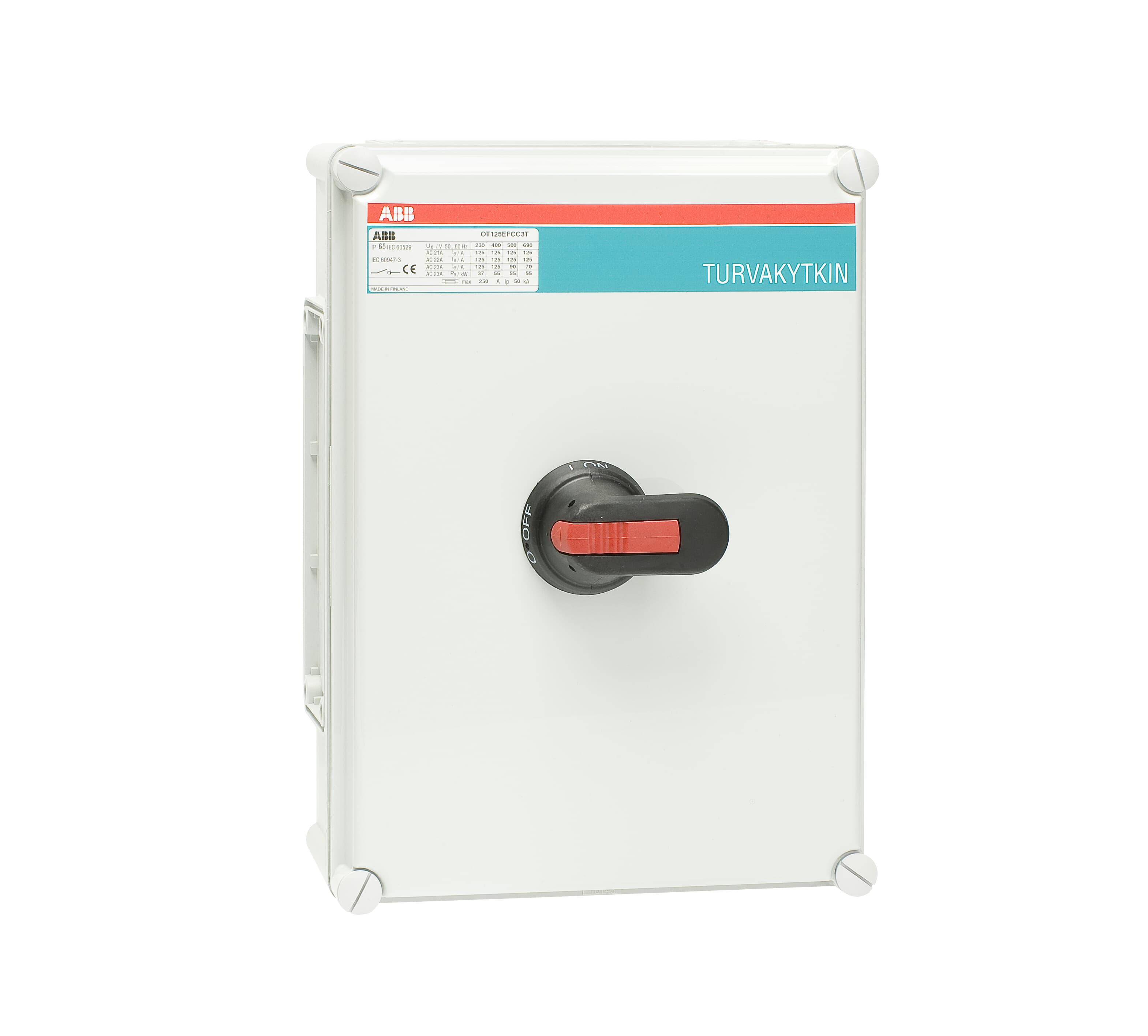

Encl. Switch Disconnector, 4-p. 415V AC23 160A, 88kW. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. N and PE terminals included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 64 583.64 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 64 607.48 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 65 175.96 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 71 293.63 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 71 319.95 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 71 947.49 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 95 730.71 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 836d01f7-a5c2-4f8c-8ca7-159a1f9350e7 Finland |
| Simplified SCIP | 6cc02ee2-7881-4901-a000-f9aa7f89e81f Germany, a6afeede-e310-4f60-9c52-8526d2a65101 Germany, 246101a1-7976-47f4-9c56-aa4f74395bbf Bulgaria, b9663c50-24ac-459f-8a3d-5a84a375c75a Portugal, 46addbc4-353c-4b11-a241-32383e6fc891 Hungary, 0b44ea46-81bb-48d4-b5c7-7bd6c4404bf5 France, 9368ad7e-f7d2-4b82-acdc-38cbcead27f4 Belgium, dc4e034c-6ce3-4a89-a0e8-2cd7cb99a1b4 Italy, bc9b7187-6644-4c4e-bd16-6f50d418a3a7 Estonia, 2969f25f-981c-4a5b-9fbf-62bac9813532 Poland, d9cbd944-b2d0-4f20-ba22-6f86f7f7d273 France, 58d88051-d5ec-41fc-8d93-5226fe3af1e0 Sweden, b12695f4-a4cc-4241-9786-5f00c009f2c4 Poland, c830b9c4-5bf3-45fd-a123-1b897d7632c7 Netherlands, 812df86a-3a1d-41a1-a132-3ad819fcfac2 Hungary, 792b8ee3-a5aa-489b-8009-084bd55bb033 Denmark, c89d26e9-fc58-4ae7-9df2-eb25c1be6554 Sweden, 5afb1ec3-c924-4a99-be83-97294c19a054 Croatia, 654e173c-c692-4c18-87e4-361455b65338 Germany, dfc1dea5-ba5a-4304-8d4a-487038986549 Germany, bc75a76a-401a-42da-99fe-1fdf68b4e8d8 Czechia, 2daa3632-287d-453e-ab8a-dd9eda0c3c03 Germany, 100a0c5e-6bf2-45bc-908f-0beef8dd8526 Norway, 8629953f-f85d-483c-aa03-87bd53362d9e Belgium, 3557517d-b4b5-4a44-be4c-bc6ca53ba1af Spain, 7f47844b-dda6-4c83-b21f-5f7c925ddb8c Poland, cdd39bc2-d169-43c2-a8f4-e2de9f81e52d Greece |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 280 mm |
| Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 4.3 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 5.4 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7032..7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 2pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Enclosure Material | Plastic |
| Enclosure Type | Fibox |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 3.2 W, Total 9.6 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW, (500 V) 112 kW, (690 V) 144 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT160EVFCC4B |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
