Артикул: 1SCA148616R1001
· Производитель: ABB
· EAN: 6417019781464
1SCA148616R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
38 650.93 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
51 692.65 ₽
срок ≈1 мес. (38 дн.)

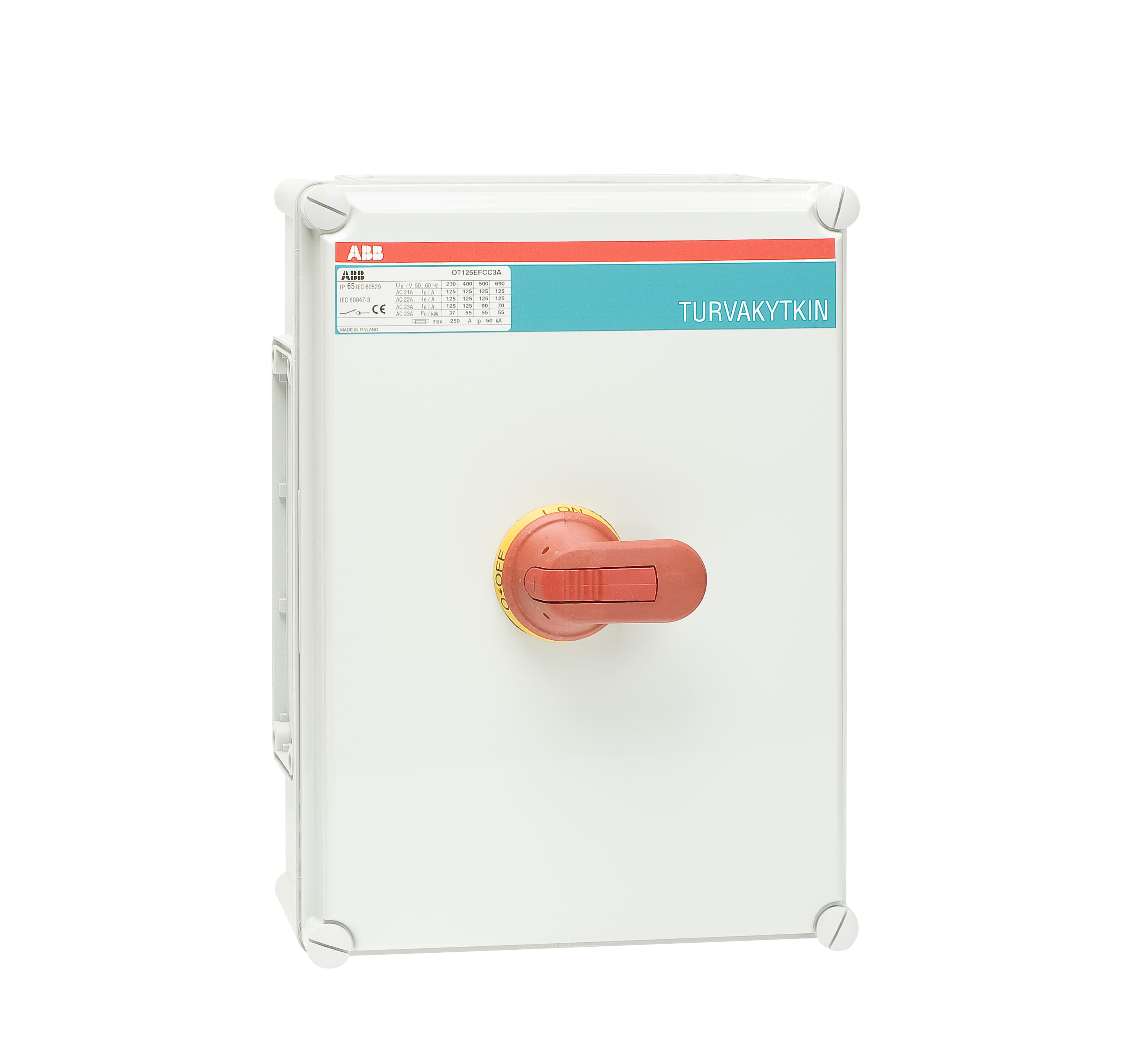

Encl. Switch Disconnector, 3-p. 415V AC23 160A, 88kW. Plastic enclosure. IP65. RedYellow Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. N and PE terminals included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 38 650.93 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 51 692.65 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 53 899.18 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 57 063.31 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 59 499.10 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 60 939.08 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 64 607.48 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 65 706.58 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 71 319.95 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 95 476.25 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5e3f4396-4401-4fe6-a2b0-aad70d57c34a Finland |
| Simplified SCIP | f4df3c2d-6f87-4512-95e1-37e3f6c31402 Germany, e6e764c0-72bb-4ca2-a209-d65ddeadf5b0 Germany, 3815073e-df91-46c5-93a0-4a1c9b0cf7e0 Bulgaria, 0651a0f2-f385-4b3b-ac17-8cfac104dbac Portugal, 3d58b7b3-97c7-468b-abc7-324d1fc99170 Hungary, 1909c201-f878-46a0-93a0-4ca3bfceba97 France, d57f8e3c-f43e-417a-bbe2-0510c4edade3 Germany, 687babbb-555d-4cc9-9ff8-d1a525dd39bd Belgium, 25040dc4-32db-45cc-9973-6a22b5503e3a Italy, 84030b86-3fee-401b-9c63-c80b624cad29 Estonia, 9d921a84-e97a-4fc6-9492-040b1d5d25fb Greece, 1ca3f963-cc3b-472d-804d-efe27b2bc45d Poland, cfef3721-4ae0-4d57-b5bd-3ab583aa6097 France, 50509a61-5580-4101-a762-119cf92d0486 Sweden, 3adfe753-ebfc-47ae-b8f7-656d1fadf1f0 Poland, bf940edf-66eb-4ab8-a28c-771fd3597e3d Netherlands, 63ebcd92-6124-44c7-b3b6-5dfacf937d85 Hungary, 36a932e0-2b04-49ea-9c9d-bc9f9a46936d Denmark, 62f9cb7d-3407-4722-88f1-4c597dac0fa5 Sweden, 225baefb-fd72-40dc-a631-b1e00561f31e Poland, 9d0607c0-22b4-4c39-bf43-b3372bd8278a Spain, 24727686-b9d8-4450-ba7c-f2d6456c228d Belgium, 46b454c9-4554-4aac-8db8-d180ec311280 Norway, 87a71766-0202-4f3b-b61a-88618bb900a1 Germany, 6313f7b7-6d15-4d53-9de5-00da95b57556 Croatia, 5ac65831-7f90-46c8-8f20-c0c1a8137372 Czechia, 837a7c7a-8c6e-44f8-8335-95ae0574aed9 Germany |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 280 mm |
| Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 4 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7032..7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 2pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Enclosure Material | Plastic |
| Enclosure Type | Fibox |
| Handle Color | Red / Yellow |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 3.2 W, Total 9.6 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW, (500 V) 112 kW, (690 V) 144 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT160EVFCC3BA |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
