Артикул: 1SCA148267R1001
· Производитель: ABB
· EAN: 6417019776842
1SCA148267R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
65 832.96 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
59 636.92 ₽
срок ≈1 мес. (38 дн.)

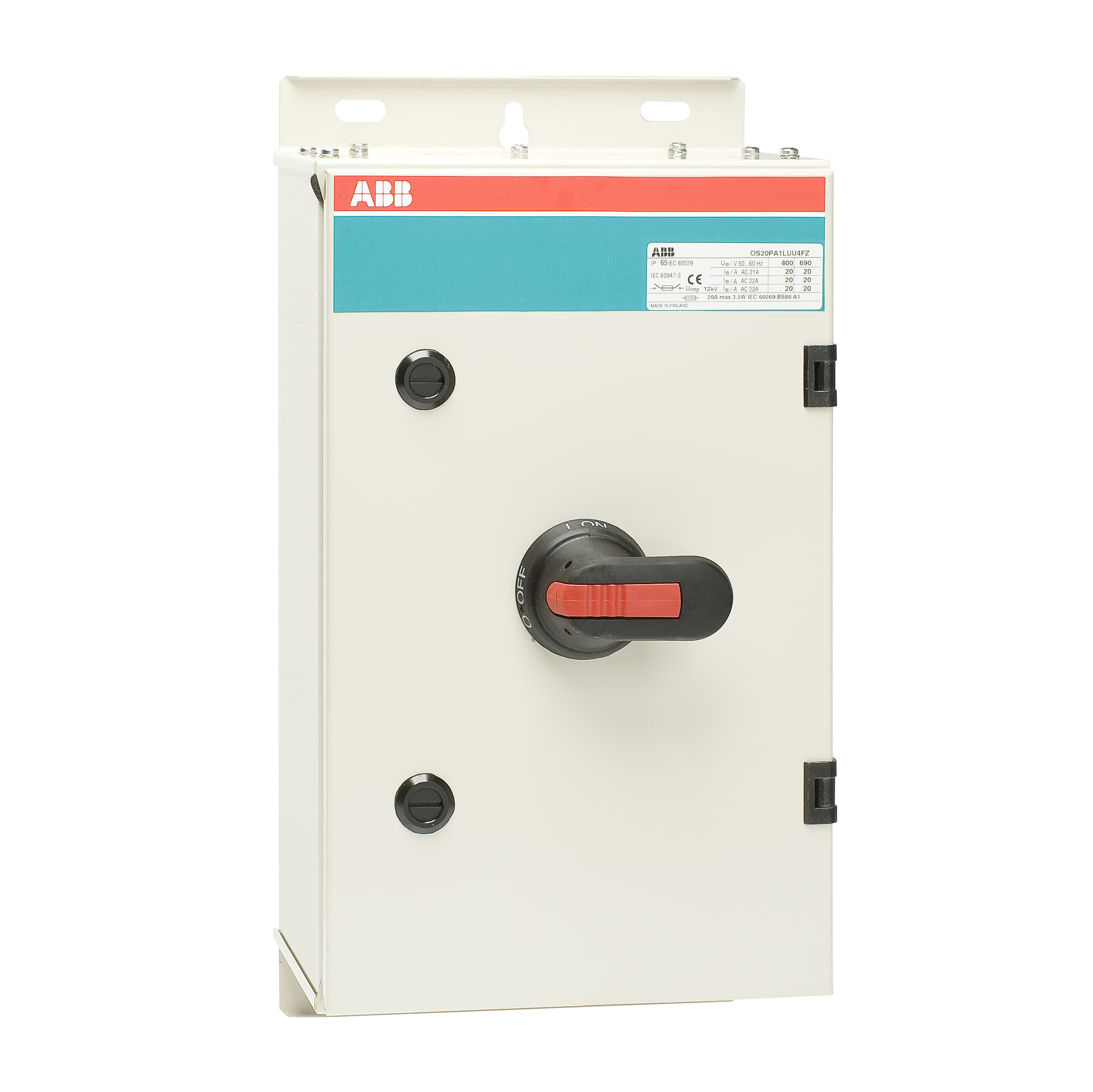

Encl. Switch Disconnector, 3-p. 415V AC23 160A, 88kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 59 636.92 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 65 832.96 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 87 810.89 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 87 844.20 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 96 934.10 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 96 970.87 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 130 103.58 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 805fe3c3-e3e7-43fd-a139-b116839a7dbf Finland |
| Simplified SCIP | b773d5e3-adf6-4b66-83c3-fe487ac8ac9b Germany, 1fb652a4-3540-4b22-9105-43d4b0a0e4b1 Germany, b762674e-263f-474a-b950-ee225a987e5d Bulgaria, 291ebbc0-0ae0-4c66-bba2-f5122d8485e7 Portugal, 888cbb2f-6220-4686-a8d7-689c09591f23 Germany, 2dbf256f-7c22-4659-acfb-7f1f36d89855 Germany, 200c76be-5b17-4f6e-828a-5d54d1031437 France, da593cd7-b0d3-4870-a799-48be0ada337d Hungary, 440af761-2a33-4cd8-8e15-58dd6a3d80b3 Estonia, 08d443da-f757-4ef8-ac70-ca0be8412ff7 Denmark, 92677f63-e710-42bb-98d0-50122b53addc France, 6a832c54-fe46-410c-9683-e81125af168d Poland, edbdd970-0c8e-4ddf-ac8f-dfda7e4d00cd Sweden, f8fa5d4d-7d80-485b-aa4f-0ce198bbd707 Sweden, 8894566e-0ddc-415f-a7d3-12b9ef0aff70 Belgium, fdfddfcf-5b88-49aa-8a02-d2a074cb1e02 Italy, 8a6ec0b0-ec10-46a5-b25c-1a892ca26a6f Hungary, 076d250e-938b-4153-8e26-cf29de94a724 Netherlands, 31b4f7a4-0873-47ab-b648-ebbf0a68bced Poland, 124590e0-f614-4e9a-9364-37fba3f04597 Belgium, c57f9772-7c22-4479-b61b-d1323bebef3f Poland, bc13a00a-32fc-405c-8871-cce4400b1e91 Spain, 71c0d492-d2c8-4432-b4b7-12d6041fda40 Norway, 6b2110c6-e249-4174-9136-531588fa8a31 Greece, 4af22b54-998a-4d2c-abf1-5d51f1375925 Germany, ca19c424-c014-42fa-a949-562449cc61cd Croatia, a81d1ec7-bd33-4920-bd78-b744be98f073 Czechia |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 250 mm |
| Product Net Height | 400 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 10.4 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 11.5 kg |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm, 40.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm, Screw Clamp / PE Terminal 4pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Enclosure Material | Steel sheet |
| Enclosure Type | MSC |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 3.2 W, Total 9.6 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW, (500 V) 112 kW, (690 V) 144 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA, for 0.2 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT160EVLUU3BZ |
| category_paths | Products > Low Voltage Products and Systems > Enclosed Switches > Enclosed Switch-Disconnectors > Enclosed Switch-Disconnectors |
