Артикул: 1SCA138208R1001
· Производитель: ABB
· EAN: 6417019666181
1SCA138208R1001
Под заказ
Наличие в РФ
14 339.03 ₽
в наличии на складе · 38 шт.
Склад в Китае
7 211.80 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
10 056.75 ₽
срок ≈4 мес. (122 дн.)

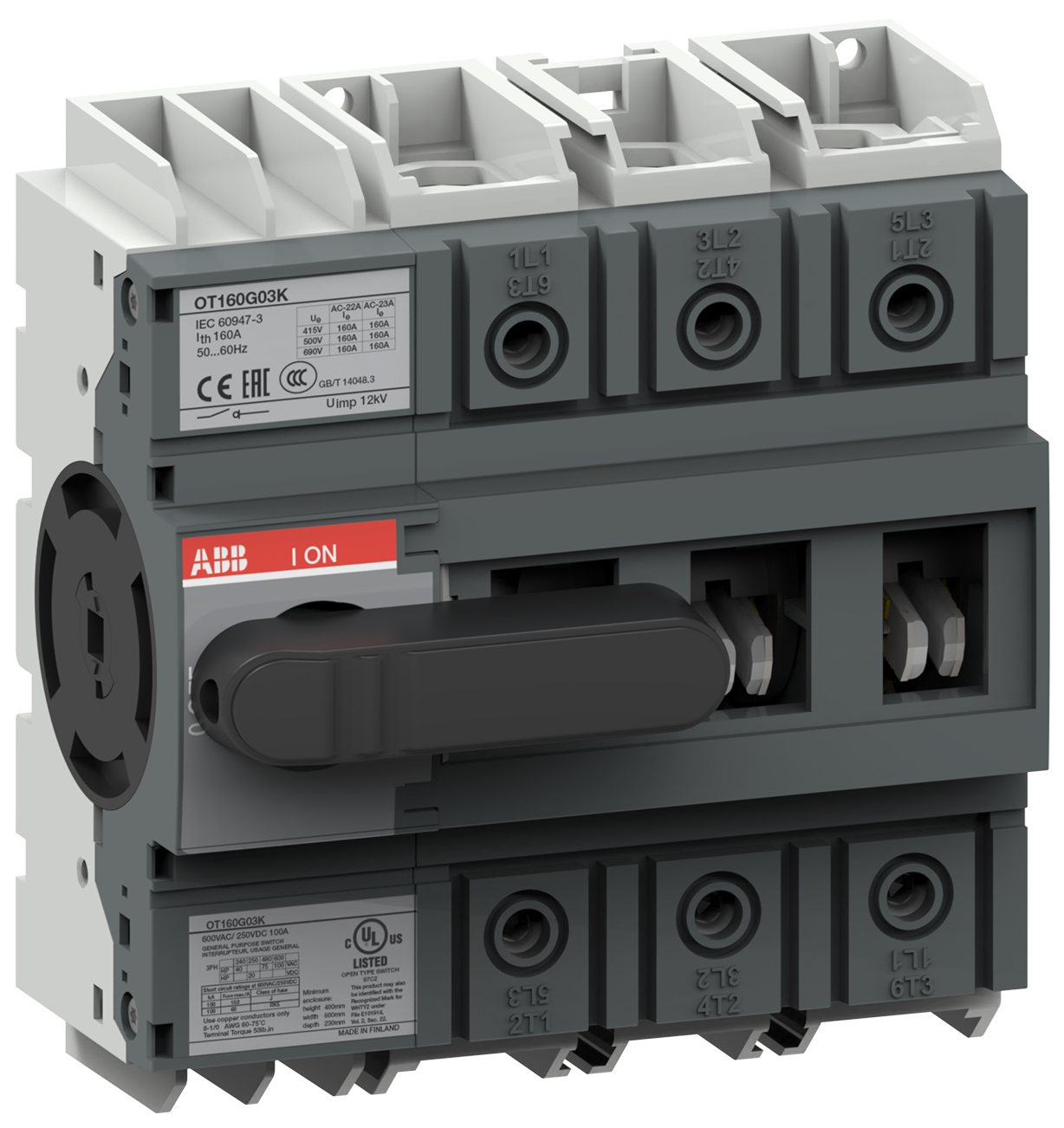

3-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black direct mount handle
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 7 211.80 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 056.75 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 933.59 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 101.61 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 517.87 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 260.07 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 420.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 714.53 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 14 194.95 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в России | 14 339.03 ₽ | 5 дн. | 38 шт. | — | Заказать |
| Склад в Китае | 15 669.75 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 755.99 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 19 126.81 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 21 114.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 123 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 0.8 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm, 6.3 in |
| Package Level 1 Depth / Length | 244 mm, 9.6 in |
| Package Level 1 Height | 96 mm, 3.8 in |
| Package Level 1 Gross Weight | 0.9 kg, 2 lb |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Direct Mount Pistol Type |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front and Side |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA, (200 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW, (400 ... 415 V) 75 kW, (500 V) 90 kW, (690 V) 132 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 125 A |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp, (440 ... 480 V AC) Single Phase 30 Hp |
| Tightening Torque UL/CSA | 53 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 4372121 |
| E-Number (Sweden) | 3171057 |
| extended_product_type | OT160G03K |
