Артикул: 1SCA135139R1001
· Производитель: ABB
· EAN: 6417019638706
1SCA135139R1001
В наличии на нашем складе
Наличие в РФ
3 004.00 ₽
в наличии на складе · 1 шт.
Склад в Китае
7 408.68 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
10 331.34 ₽
срок ≈4 мес. (122 дн.)

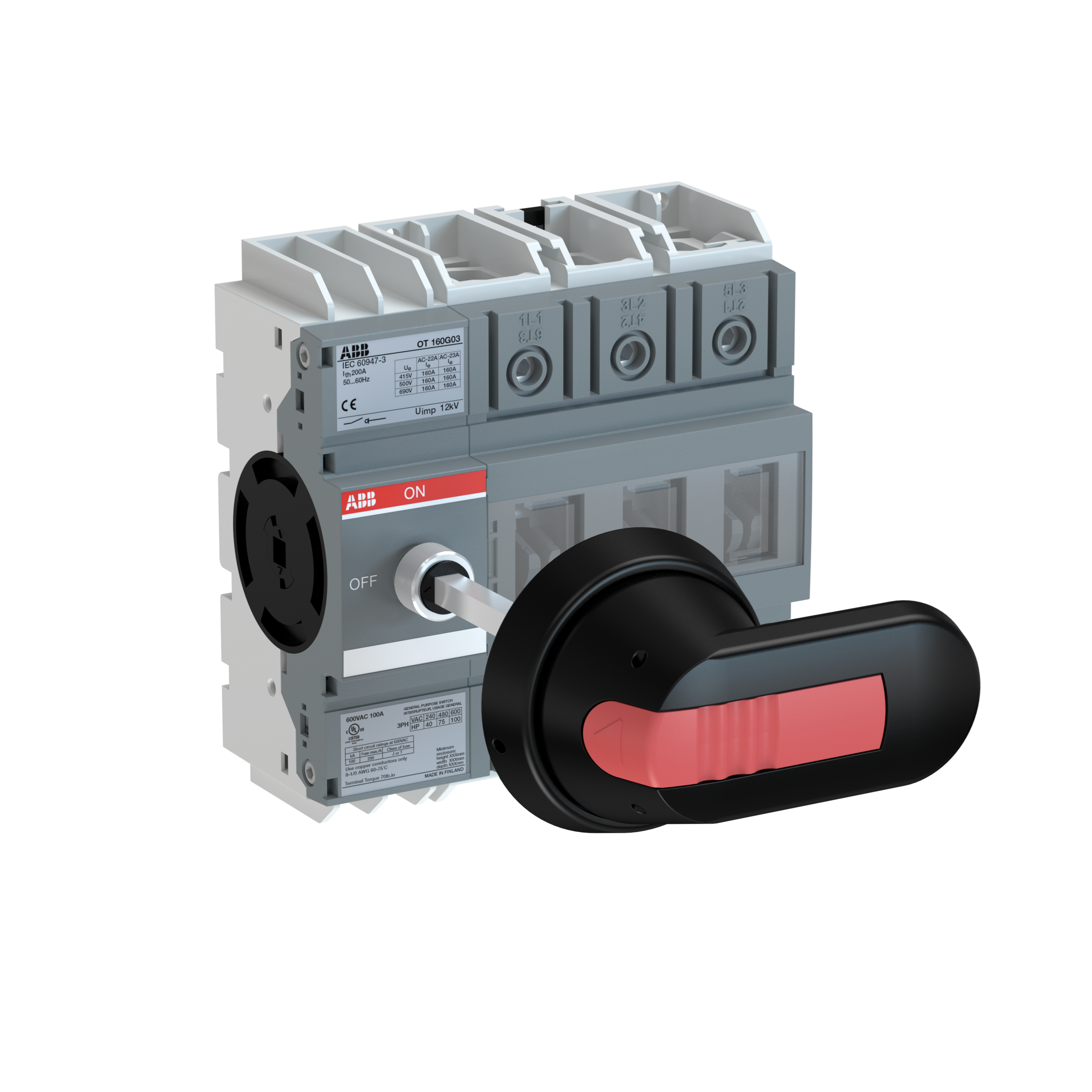

3-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Наш склад | 3 004.00 ₽ | В наличии | 1 шт. | — | Заказать |
| Склад в Китае | 7 408.68 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 331.34 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 232.04 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 404.72 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 12 085.59 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 594.75 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 758.55 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 13 341.23 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в России | 13 593.35 ₽ | 5 дн. | 55 шт. | — | Заказать |
| Склад в Европе | 14 370.37 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 15 863.40 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 217.62 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 19 648.16 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 21 689.53 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6f064110-8ade-4356-9916-63b327acc3b7 Finland |
| Simplified SCIP | 9695ceac-9a5e-47a3-9d10-913be99f61f2 Germany, 8765d64a-1254-4740-b28b-ffd01ce6515e Sweden, 3681be30-0ecc-4559-922c-3b97a79d0da4 Poland, b55c5251-02d9-435f-90e2-96ddfb56b519 Poland, 092dd1c4-c806-46a2-bd5d-4041c5776f1e France, e4ad0e9c-310a-4370-b58a-e9061e6a7bc7 Estonia, 12544bfd-5174-4e17-a112-be5ff151b3e8 Bulgaria, b2d74db4-ac58-4226-97f5-54e578e3be08 Greece, d6258643-2026-405c-a2d4-f58707d1ac46 Croatia, f6ed35dc-cfbc-4783-a265-c5cf8d8cd88b Portugal, 0d3525da-aa66-47e6-9cd9-cc463adeb861 Sweden, 32dc2de6-cd6e-400c-88f3-7907ffe5f316 Hungary, 00a80986-0c31-4117-879b-c97b5019ae7b Czechia, 5ba42181-654d-465d-ad59-eef68bc47e09 Netherlands, 1bde6823-5682-419b-a3ff-cd201dea689d Germany, 798c0614-8d5c-4122-82af-01d963ea7f64 Germany, ce70bfa1-b9e0-4ae5-9535-37b4eaf61b49 Belgium, 825bde5b-85ec-4c5d-8cf5-5abe0b98f0fa Norway, 7d786ffd-c696-4ea2-9940-de8c6b33c784 Germany, df72ae17-3e35-4c10-8169-240c0fae359d Poland, e6f961a8-7c4e-4a38-91d9-7da31e97aeab Denmark, 17fa4b90-0c59-4330-8af1-2fecb845eab4 Germany, ad47b5c2-dead-418f-97d2-d1004114861f Italy, 7a3eb990-9440-4f07-a1ff-711db106a55c Spain, b8605eb2-93cc-4a46-8a90-f39401d925eb Belgium, 6be34c1d-5dd5-49ea-8e37-e833145c84af France, e328478e-18e3-4cda-b415-18eaef621254 Hungary |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 123 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 0.9 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm, 6.3 in |
| Package Level 1 Depth / Length | 244 mm, 9.6 in |
| Package Level 1 Height | 96 mm, 3.8 in |
| Package Level 1 Gross Weight | 1 kg, 2.3 lb |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front and Side |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA, (200 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW, (400 ... 415 V) 75 kW, (500 V) 90 kW, (690 V) 132 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 125 A |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp, (440 ... 480 V AC) Single Phase 30 Hp |
| Tightening Torque UL/CSA | 53 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3638769 |
| E-Number (Norway) | 4372122 |
