Артикул: 1SCA129242R1001
· Производитель: ABB
· EAN: 6417019589398
1SCA129242R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
882 568.56 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
1 266 874.86 ₽
срок ≈1 мес. (38 дн.)

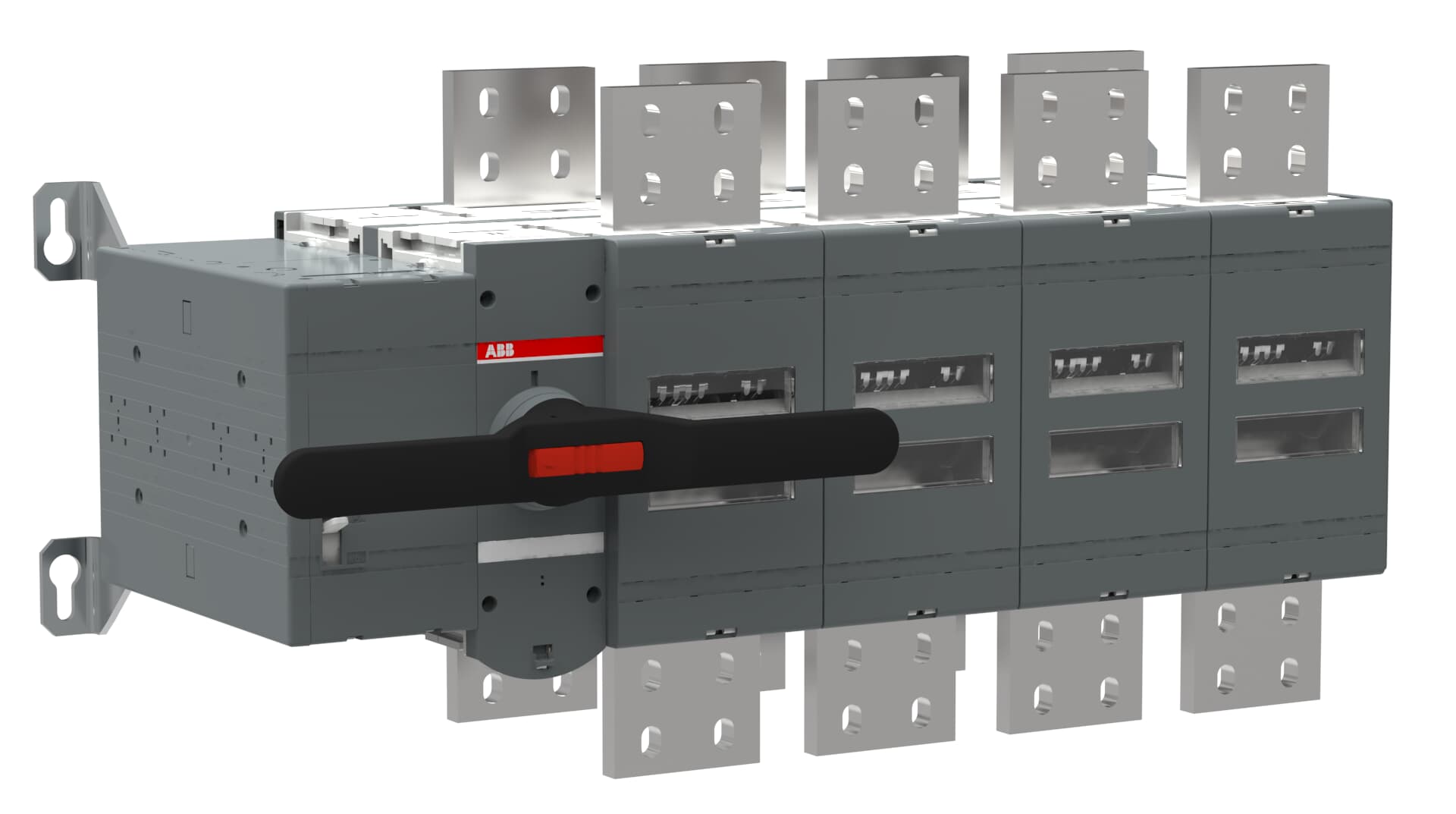

OTM3200E4CM230C MOTORIZED C/O SWITCH, Direct mounted handle, Open transition
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 882 568.56 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 266 874.86 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 359 155.58 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 398 498.22 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 442 210.88 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 500 366.55 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 592 050.97 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 029 159.31 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 831.5 mm, 32.74 in |
| Product Net Height | 410 mm, 16.14 in |
| Product Net Depth / Length | 429 mm, 16.89 in |
| Product Net Weight | 76 kg, 167.55 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 590 mm, 23.2 in |
| Package Level 1 Depth / Length | 790 mm, 31.1 in |
| Package Level 1 Height | 510 mm, 20.1 in |
| Package Level 1 Gross Weight | 94.5 kg, 208.3 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3200 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A, (500 V) 3200 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OTM3200E4CM230C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Motorized Change-over Switches |
