Артикул: 1SCA129240R1001
· Производитель: ABB
· EAN: 6417019589374
1SCA129240R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
804 749.36 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
996 799.88 ₽
срок ≈1 мес. (38 дн.)

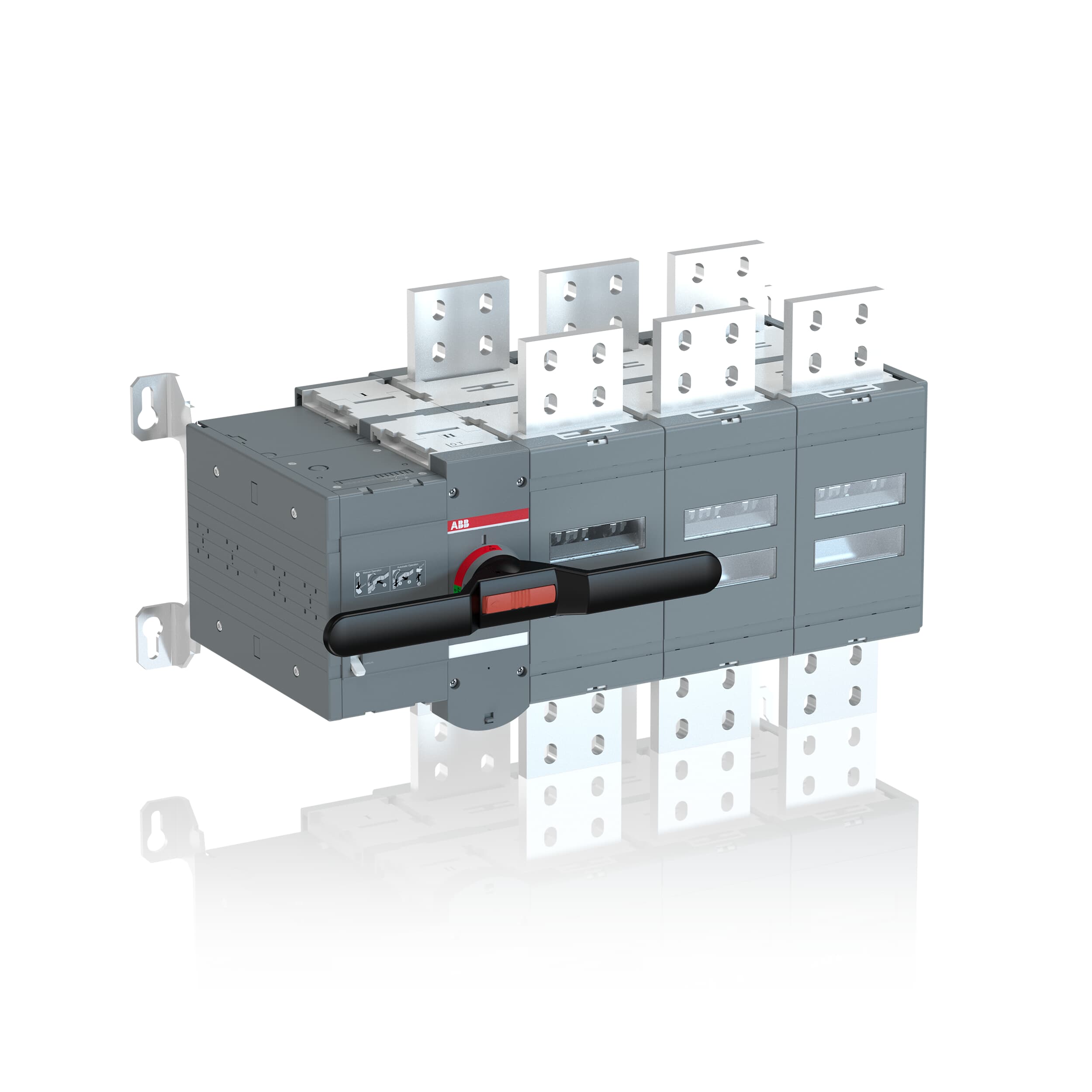

OTM3200E3CM230C MOTORIZED C/O SWITCH, Direct mounted handle, Open transition
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 804 749.36 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 996 799.88 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 100 363.51 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 169 912.35 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 239 317.81 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 291 461.68 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 347 214.57 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 368 073.92 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 483 692.10 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 781 904.87 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 691.5 mm, 27.22 in |
| Product Net Height | 410 mm, 16.14 in |
| Product Net Depth / Length | 429 mm, 16.89 in |
| Product Net Weight | 61 kg, 134.48 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 780 mm, 30.7 in |
| Package Level 1 Depth / Length | 580 mm, 22.8 in |
| Package Level 1 Height | 500 mm, 19.7 in |
| Package Level 1 Gross Weight | 81 kg, 178.5 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3200 A |
| Distance Between Phases | Standard |
| Handle Type | Direct Mount |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A, (500 V) 3200 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OTM3200E3CM230C |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Motorized Change-over Switches |
