Артикул: 1SCA128596R1001
· Производитель: ABB
· EAN: 6417019583846
1SCA128596R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
364 485.75 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
330 181.21 ₽
срок ≈4 мес. (122 дн.)

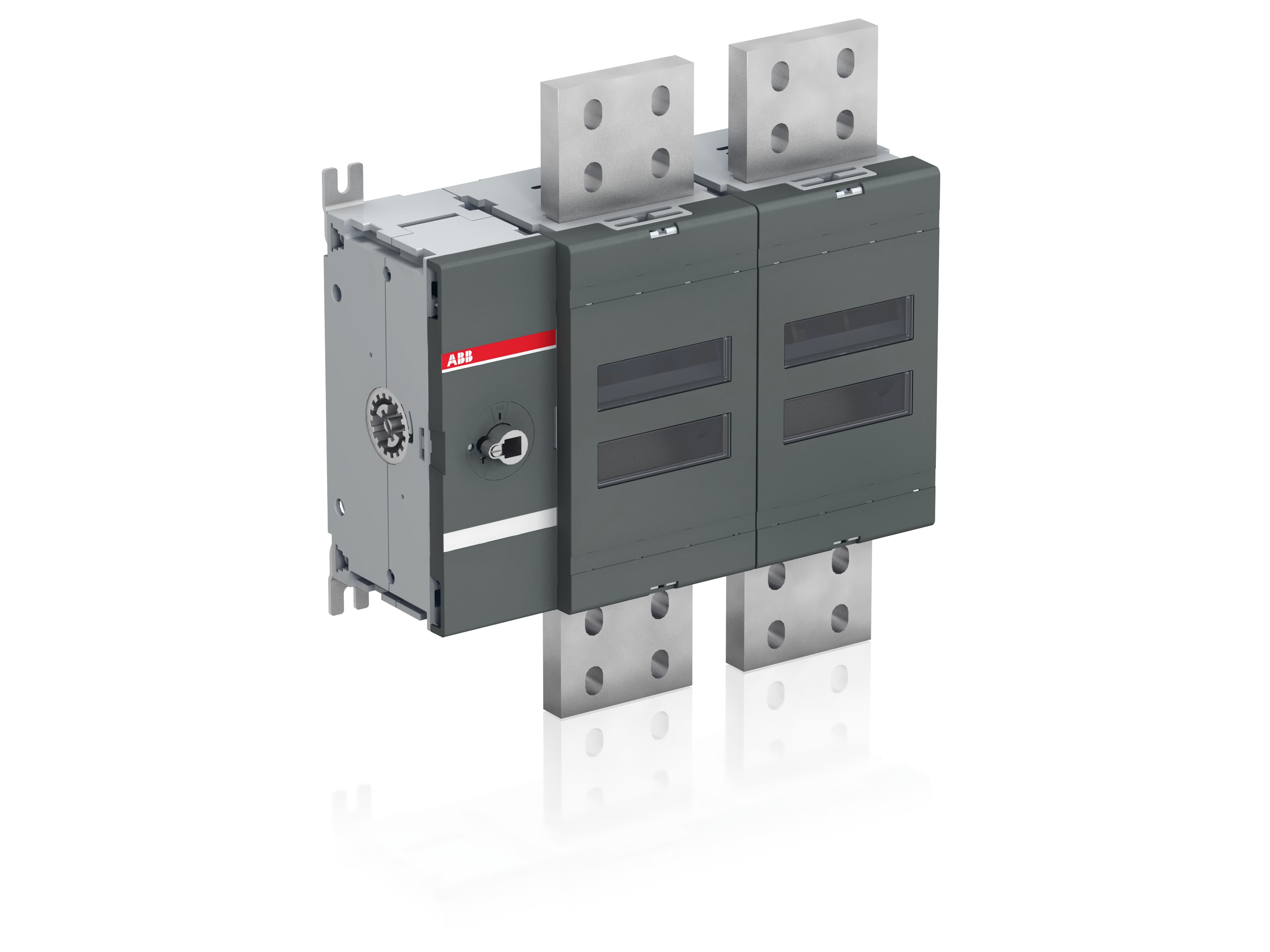

2-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 330 181.21 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 347 682.07 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 364 485.75 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 370 882.29 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 378 299.12 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 383 804.89 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 417 602.93 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 535 428.28 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 571 158.72 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 630 499.89 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 374 mm |
| Product Net Height | 410 mm |
| Product Net Depth / Length | 146 mm |
| Product Net Weight | 24.8 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 400 mm |
| Package Level 1 Depth / Length | 435 mm |
| Package Level 1 Height | 170 mm |
| Package Level 1 Gross Weight | 25.7 kg |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3800 A |
| Distance Between Phases | Standard |
| Mechanical Durability | 5000 |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 130 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3800 A |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 3800 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 80 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 02 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT4000E02 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
