Артикул: 1SCA128479R1001
· Производитель: ABB
· EAN: 6417019582658
1SCA128479R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
438 777.10 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
397 480.43 ₽
срок ≈1 мес. (38 дн.)

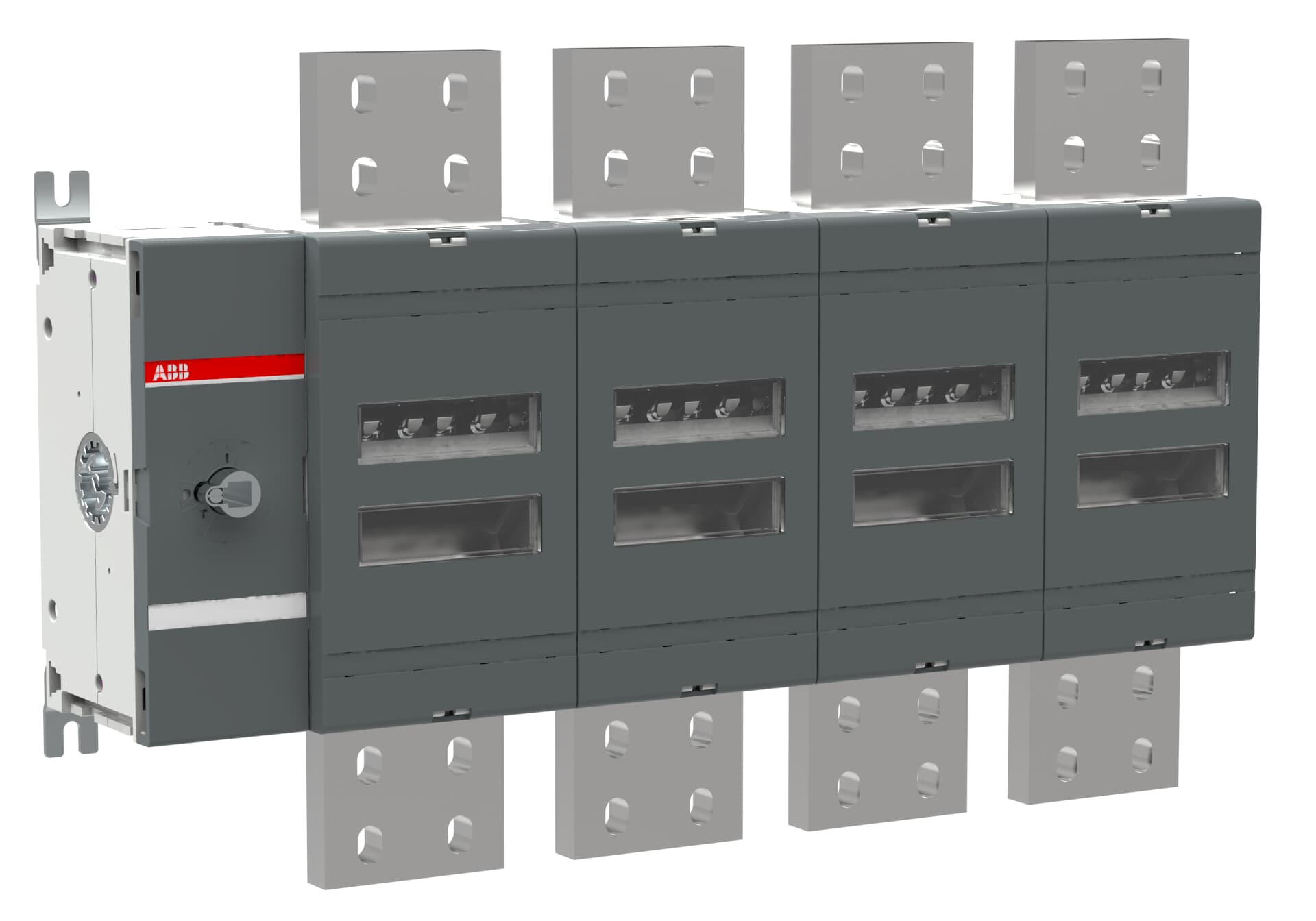

4-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 397 480.43 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 432 484.06 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 438 777.10 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 447 608.07 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 462 965.71 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 477 417.46 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 494 112.81 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 612 113.93 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 712 967.20 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 787 041.71 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 654 mm |
| Product Net Height | 410 mm |
| Product Net Depth / Length | 146 mm |
| Product Net Weight | 41.5 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 435 mm |
| Package Level 1 Depth / Length | 673 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Gross Weight | 43.9 kg |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3200 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Mechanical Durability | 5000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 3200 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT3200E04 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
