Артикул: 1SCA126054R1001
· Производитель: ABB
· EAN: 6417019560458
1SCA126054R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
19 506.94 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
17 670.99 ₽
срок ≈4 мес. (122 дн.)

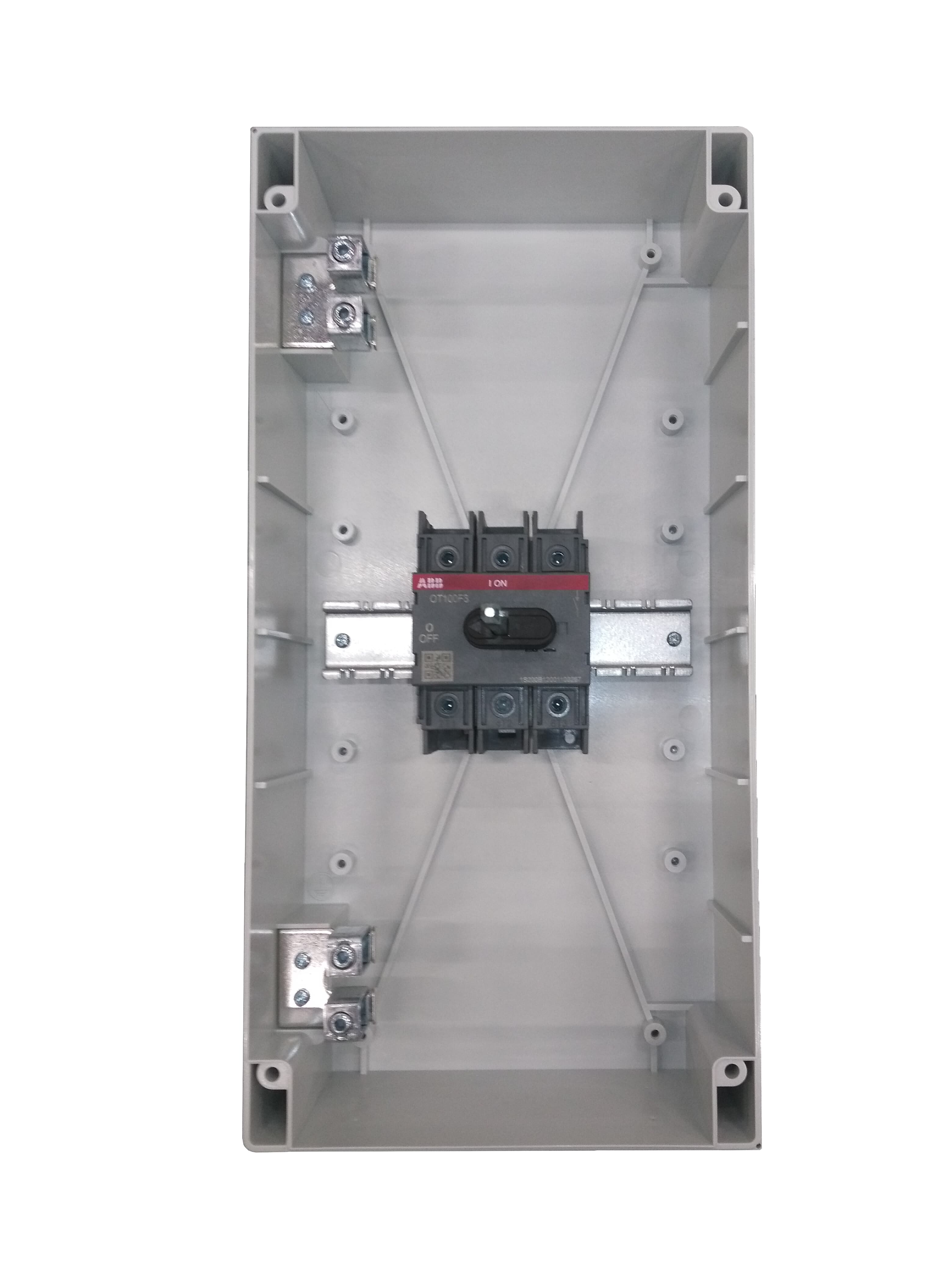

Encl. Switch Disconnector, 3-p. 415V AC23 80A, 37kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 17 670.99 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 677.58 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 832.22 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 506.94 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 514.21 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 684.92 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 366.53 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 26 183.35 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 35 984.45 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 39 723.09 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 22abbd76-b443-4c63-9057-8e17c97a0a01 Finland |
| Simplified SCIP | c8b7b191-7175-432e-9e61-9c6f7d4af486 Germany, 2939b1f7-54cf-40c7-b0dc-43764b537f0a Belgium, b7ca1483-e30e-4d88-9dc3-d87681b1939c Spain, 45934472-c244-4523-bf3b-6c35559a309c Hungary, bddaf367-8592-4bef-9425-4a816dfec6b6 Romania, e327453c-1a6b-4e8a-9d80-911540aa020f Germany, 7fb8213e-1216-4211-8d35-22cf1a7f7b0d Croatia, 8c75258b-0487-435b-a225-1cab9c68c5c7 Czechia, b97a6209-6a6d-4b64-a1ad-7530d410e3fb Estonia, 0b19ce7f-95ef-4a33-b42d-93f6f1f1a426 Hungary, ea21d8c8-8410-4432-b6b0-1953387a82e1 Netherlands, ae896702-481b-42ca-ae8b-dd3fd67a3ed1 Poland, ce77f2ae-de95-4b8b-8380-e1b84371a8d8 Poland, 60b4936b-c6bc-444d-93a1-c38fb93b8e22 Poland, 7205488b-d5dd-4ab8-afa5-47e300539e79 Sweden, a0d75d8a-7503-440d-9a0e-7efdac2d0555 Bulgaria, 75dc8619-f273-4340-8dea-3ead53fa63c8 Portugal, 24a2f369-44d5-4bde-a271-7bad0e0e520e Greece, 8ec28f2b-238a-40ca-8fc8-eb9704507add France, 5a499320-98ff-435b-bf12-62340bcfb57f France, cc5f2693-c29d-45c1-8c30-4aec34ece178 Germany, bbec9ce3-116a-4400-8b06-04e4648364c0 Germany, d2a39f29-7e09-41e9-8311-54a5615a26ef Sweden, efc7ba7e-0e91-43ad-958f-27e3e056d2c2 Denmark, 0c775ddf-aae1-40b2-80a6-d8d8d59d8c3d Italy, 0f87e99d-051e-42e4-b5ba-64b8e997a507 Germany, c9392be1-33bd-4fd9-a115-9827818dbbc1 Norway, 73a04428-ef06-4cb6-bc0c-8dabcfd868d7 Belgium |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Replacement Product ID (NEW) | OTP80GB3M |
| Country of Origin | Finland |
| Product Net Width | 200 mm |
| Product Net Height | 400 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Weight | 2.2 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 213 mm |
| Package Level 1 Depth / Length | 417 mm |
| Package Level 1 Height | 197 mm |
| Package Level 1 Gross Weight | 2.4 kg |
| Cable Cross-Section | 10 ... 70 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM50+M16 / 2xM50+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm², Screw Clamp / PE Terminal 4pc 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Selector |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 4 W, Total 12 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (400 V) 100 A, (500 V) 100 A, (690 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A, (690 V) 100 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A, (500 V) 60 A, (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW, (500 V) 37 kW, (690 V) 37 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA, for 0.2 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OTP100B3M |
