Артикул: 1SCA124847R1001
· Производитель: ABB
· EAN: 6417019551869
1SCA124847R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
428 843.87 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
388 482.10 ₽
срок ≈4 мес. (122 дн.)

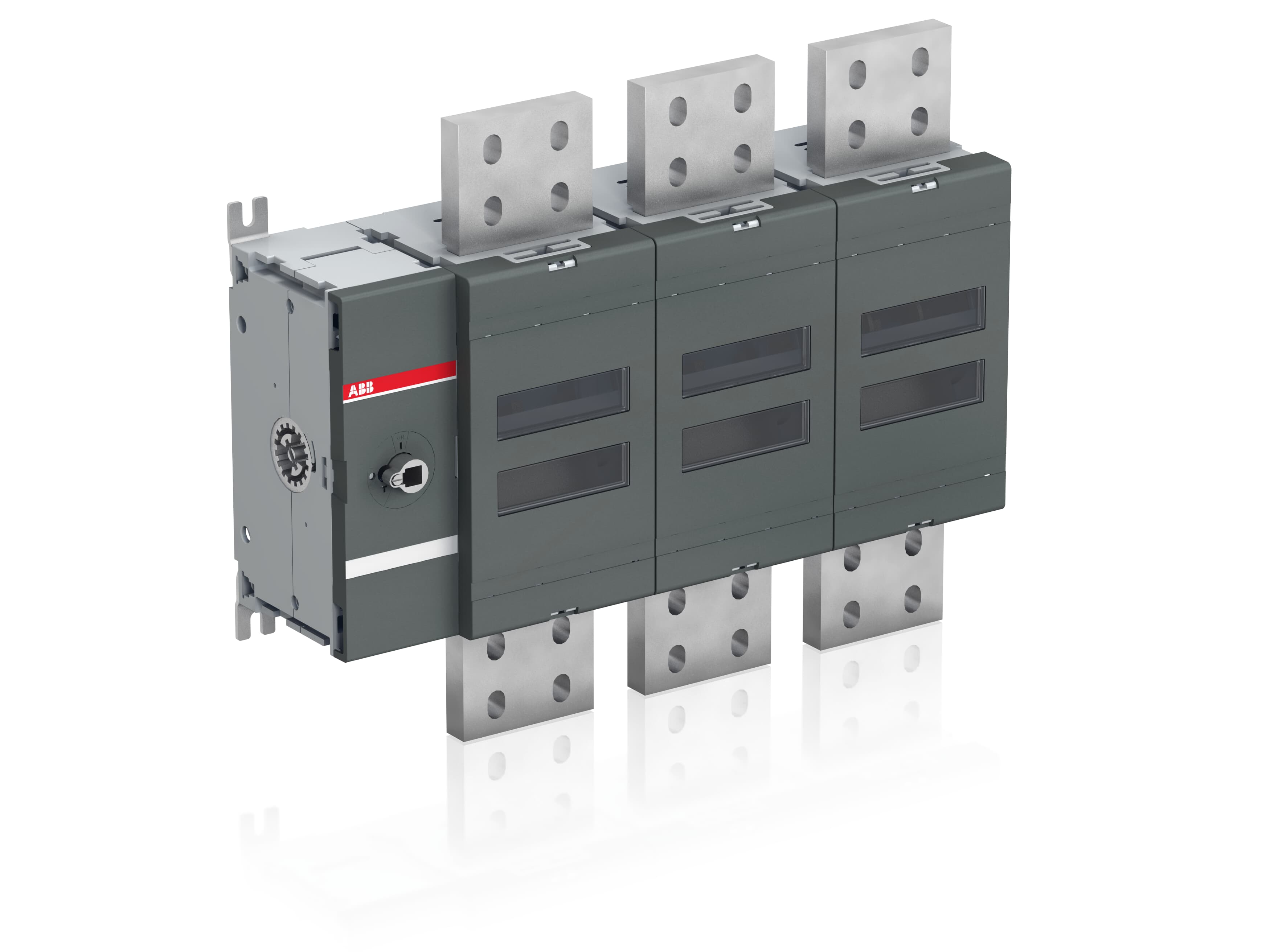

3-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 388 482.10 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 409 035.39 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 428 843.87 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 437 870.60 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 445 055.23 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 451 532.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 491 294.74 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 629 908.26 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 674 320.72 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 744 380.01 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 514 mm |
| Product Net Height | 410 mm |
| Product Net Depth / Length | 146 mm |
| Product Net Weight | 36.2 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 435 mm |
| Package Level 1 Depth / Length | 673 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Gross Weight | 38.6 kg |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3800 A |
| Distance Between Phases | Standard |
| Mechanical Durability | 5000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 130 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3800 A |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 3800 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 80 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| extended_product_type | OT4000E03 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
