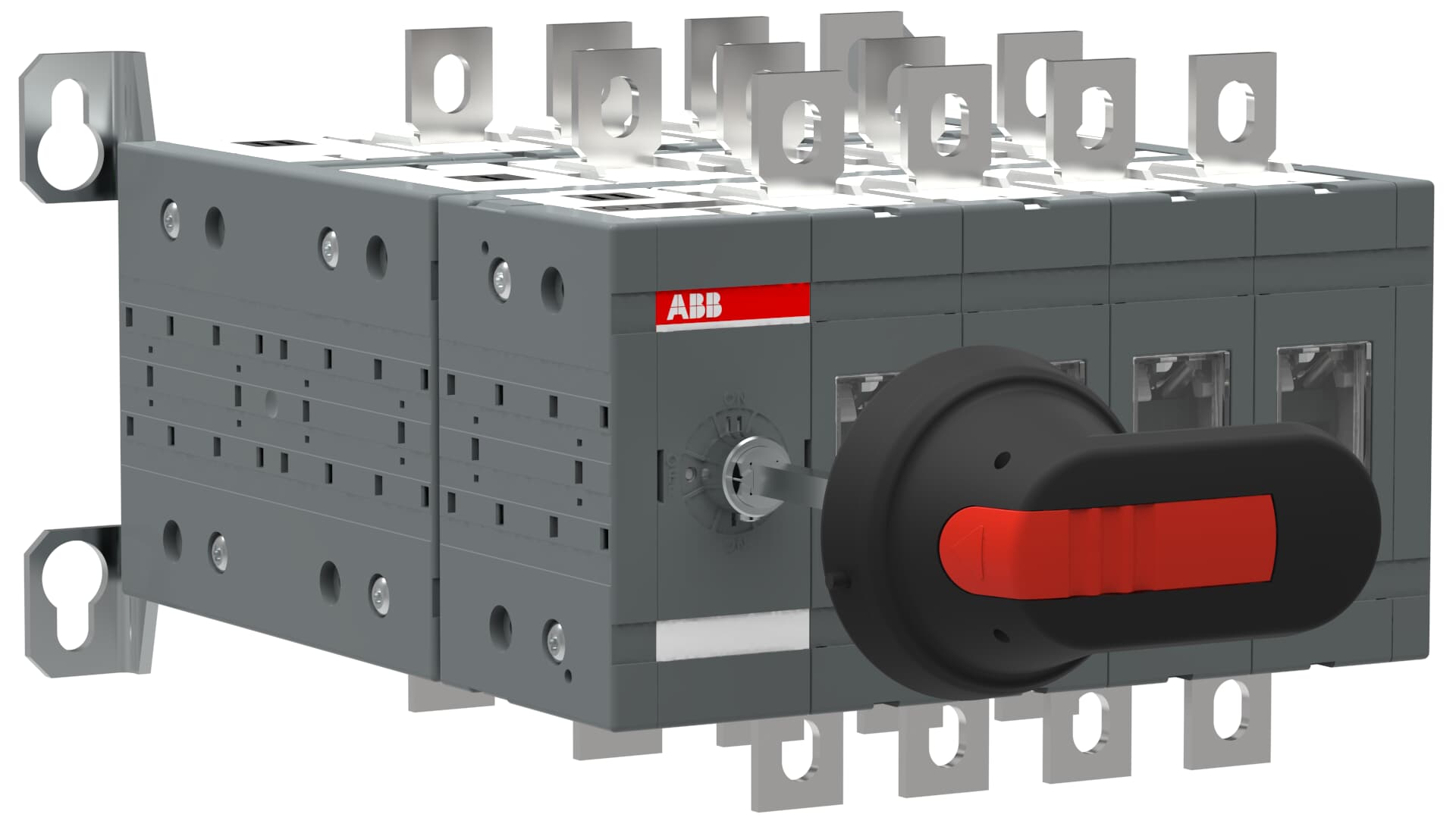

Артикул: 1SCA123556R1001
· Производитель: ABB
· EAN: 6417019543406
1SCA123556R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
87 155.46 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
78 952.59 ₽
срок ≈4 мес. (122 дн.)
Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 78 952.59 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 79 384.06 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 84 531.94 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 87 155.46 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 87 631.75 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 89 434.81 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 93 314.48 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 120 727.49 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 137 729.61 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 152 039.18 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | efbd5d02-9ce9-4695-81f1-690aebaafb5e Finland |
| Simplified SCIP | dcf8b099-817e-41ed-b65f-23af3c340568 Germany, ee5083b5-f798-4529-90ca-6349d4e455cb Poland, 4a9fdfa2-6e72-4d1d-8872-642b9eb58141 Germany, b6501160-b9f9-4c0d-b8b2-ac6a22275656 Netherlands, b1213cd0-b3e8-4a15-a891-9d8786dd5676 Poland, ef69a21c-2e8c-4428-b895-a76dc03ebca9 Croatia, 8e3afa09-9404-4062-8e4f-70b02719c0b9 Sweden, 10cf9238-6fe3-4185-8961-d7591298ece6 Poland, 7b607408-8832-456f-92cb-0c4714fd9aa2 Bulgaria, 6103da58-d18e-48e9-9968-6cf258a5d5be Estonia, 8cba6d92-f9ba-4e33-be7a-c35a0d8c40eb Greece, 18510c03-f333-480c-a42a-2bd40f41b43b Portugal, 449a31ca-4b3f-4327-9b32-565ec2c0d7b5 Germany, 6760192d-7794-4ee3-8908-f98fcd090974 Hungary, 49a7a438-73af-4945-9fa2-0f2c5465fe32 Germany, 68ea4145-61ff-4d26-9370-76252e491c03 France, 5e3a5bab-a000-4cbf-accf-8a1fd3e52ae7 Sweden, 9b37e402-b032-46f2-8046-af627acb96d9 Germany, 9a1e2eed-1549-4fbb-882e-6904b7ed03d5 Belgium, d539c936-c8c8-46da-99cf-070dca26c076 Italy, d417506b-2ad3-4921-ab8a-4d8bd238f188 Spain, c670251e-689d-41e0-90ca-e8df415a2d48 Belgium, 29824f1d-5ff4-4d2c-9a63-510d60f42d33 Romania, fb3c9653-0125-4955-a44d-acb6efd9d02c France, 1d57843c-d561-47c3-812b-847616b93ec9 Hungary, c016c008-9304-4bc9-b3a4-af2add5e01c2 Norway, bc7477e8-1b06-46f2-af0e-e0c76f750ceb Denmark, b7a45a02-876d-431b-bd6c-a8d560c2b4f9 Czechia |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 229 mm, 9.02 in |
| Product Net Height | 150 mm, 5.91 in |
| Product Net Depth / Length | 236 mm, 9.29 in |
| Product Net Weight | 7.5 kg, 16.53 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 175 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Gross Weight | 7.5 kg |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 90 kW, (500 V) 110 kW, (690 V) 160 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT160E04YP |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Manual Bypass Switches |
