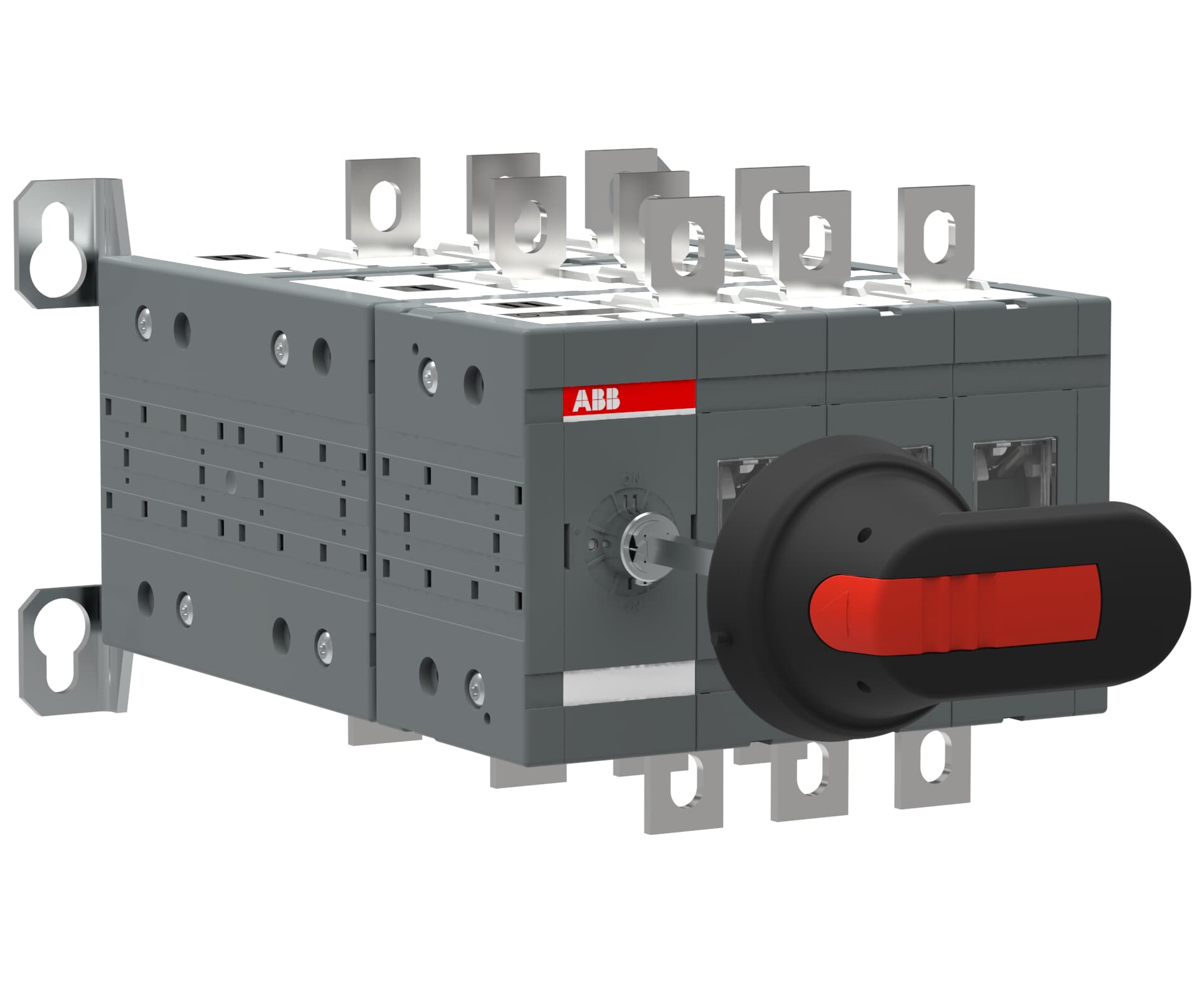

Артикул: 1SCA123552R1001
· Производитель: ABB
· EAN: 6417019543369
1SCA123552R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
72 797.71 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
65 946.16 ₽
срок ≈4 мес. (122 дн.)
Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 65 946.16 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 66 307.61 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 70 605.81 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 72 797.71 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 73 196.71 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 77 941.47 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 95 833.19 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 100 850.94 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 147 583.12 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 162 916.43 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | fcc50921-86a7-4be9-b52e-97f54883750d Finland |
| Simplified SCIP | 828943c9-8a93-45ff-8560-4e81698e7e01 Sweden, d312b87a-940e-4a7a-8731-085d9aeda086 Poland, f9ca03dc-fd90-4f0d-92fd-cb830f0359ac Norway, af342e9f-b2e4-4b2e-8bdc-821628bcea8d Belgium, 67ef8171-0a29-4333-b529-a4e7138361ce Germany, a4843e41-5daf-4f2a-9c59-3f9a16bcc764 Germany, 4459632c-f6dd-49a3-a63c-6fb6e31e4400 Sweden, df597068-100b-4526-8b03-e16375ee760f Poland, 551bebdf-894e-4222-bbb1-ce9eea60ab3c Germany, 55f76ca1-9238-47e5-80fb-276793d8c61b Bulgaria, 24948bfc-0145-44ca-a0f4-35db728613a0 Netherlands, fd7d9e06-1c49-4603-ab74-1060ceffb9b2 Poland, e6102a4d-a31c-4f22-93ee-eabcbf44d3ee Hungary, 7a516e66-37f9-4c87-a590-7f96bc647b30 Estonia, dc31a1fe-5bb1-4b8d-9b41-e7cec68880ac Portugal, 77b2afa3-4d66-456e-829d-016e684b0756 Greece, ef7ce198-98c6-4040-ae97-9c0575d1ab91 Denmark, c4f8edc4-e598-4981-af36-c9e968f3d023 Germany, b07e53e7-640f-4386-9ec3-949d43d579f0 Croatia, 92bdebf4-a497-4d33-9999-f9f47332ea33 Belgium, 3e448abc-fcd8-421b-949a-2319b4c822aa Romania, ade3ef66-3e20-40d0-ba76-891bada16abc Czechia, 90742d2a-3cf9-47f3-80d7-cbabadd4ef88 France, 747c0c8e-fbd8-4ffd-a1b2-36c0abcdb65f Italy, 4538996e-41be-4807-bd51-edaca705a3fe Hungary, c283df05-a379-4852-a7a9-345f2406b936 Spain, dfa84f7e-d4d9-46b2-b3b3-ca59bbc8b929 France, 53b9e7b3-6535-42a5-9610-7db1d5a055b5 Germany |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 194 mm, 7.64 in |
| Product Net Height | 150 mm, 5.91 in |
| Product Net Depth / Length | 236 mm, 9.29 in |
| Product Net Weight | 5.6 kg, 12.35 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 175 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Gross Weight | 5.6 kg |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW, (500 V) 132 kW, (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT200E03YP |
| category_paths | Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Manual Bypass Switches |
