Артикул: 1SCA121462R1001
· Производитель: ABB
· EAN: 6417019526171
1SCA121462R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
7 287.67 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
10 256.59 ₽
срок ≈1 мес. (38 дн.)

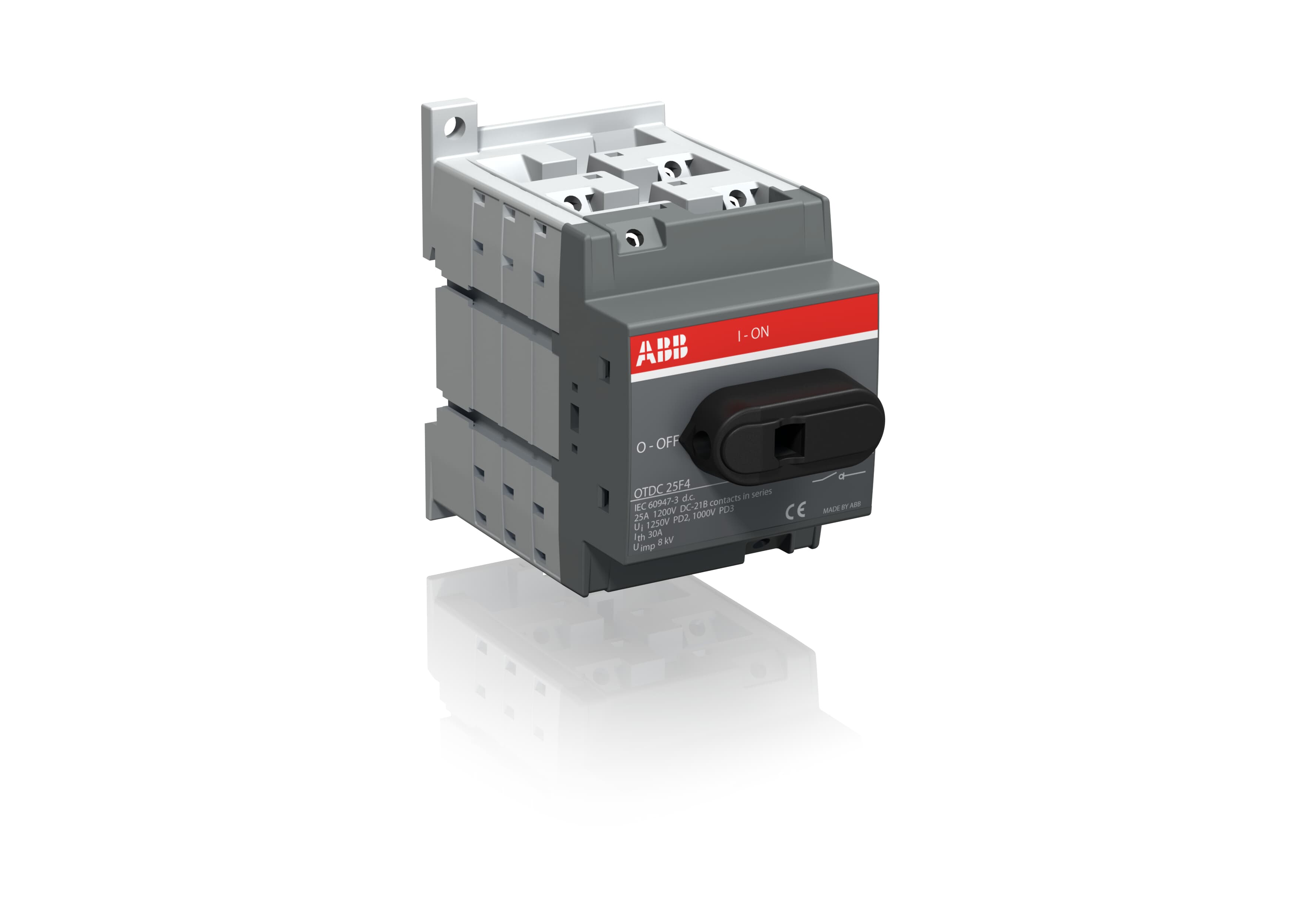

OTDC25F4 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 660 VDC 25 A double circuit, IEC 1000 VDC 16 A double circuit
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 7 287.67 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 857.33 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 256.59 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 442.61 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 074.10 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 322.21 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 527.56 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 389.04 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 524.64 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 12 750.01 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 13 640.28 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 15 057.46 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 15 987.39 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Estonia |
| countryOfAssembly | Estonia |
| countryOfLastProcessing | Estonia |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country of Origin | Estonia |
| Product Frame Size | XS |
| Product Net Width | 52.5 mm, 2.1 in |
| Product Net Height | 89 mm, 3.5 in |
| Product Net Depth / Length | 89 mm, 3.5 in |
| Product Net Weight | 0.22 kg, 0.49 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 100 mm, 3.9 in |
| Package Level 1 Depth / Length | 64 mm, 2.5 in |
| Package Level 1 Height | 100 mm, 3.9 in |
| Package Level 1 Gross Weight | 0.25 kg, 0.55 lb |
| Cable Cross-Section | 2.5 ... 16 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Handle Color | Black |
| Handle Type | Knob |
| Mounting Type | Base mounting, DIN-rail mounting |
| Number of Circuits | 2 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Positive Opening Operation Torque (Direct Opening Action) | 0.4 … 0.8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 0.3 W, Total 1.2 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current DC-21B (Ie) | (660 V) 25 A, (1000 V) 16 A |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 0.8 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 0.8 kA, for 1 s 0.8 kA |
| Recommended Screw Driver | Main Circuit Torx |
| Shaft Diameter | 6 mm, 0.24 in |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Wire Stripping Length | Main Circuit 56 … 11 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601356 |
| E-Number (Norway) | 4363637 |
| E-Number (Sweden) | 3134021 |
| extended_product_type | OTDC25F4 |
| category_paths | Products > Low Voltage Products and Systems > Switches > DC Switch-Disconnectors |
