Артикул: 1SCA121456R1001
· Производитель: ABB
· EAN: 6417019526119
1SCA121456R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
4 687.83 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
6 446.82 ₽
срок ≈1 мес. (38 дн.)

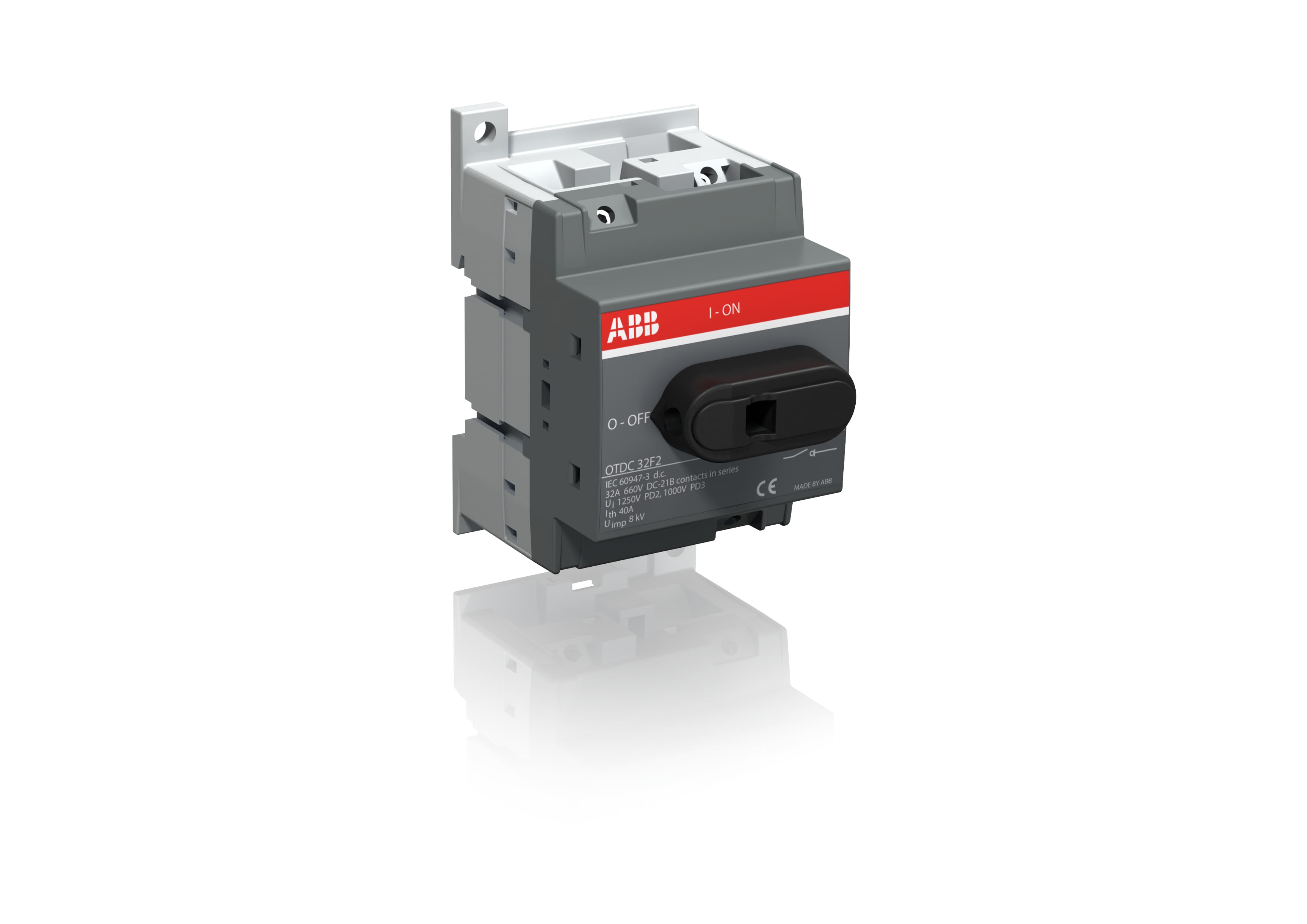

OTDC32F2 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 660 VDC 32 A single circuit, IEC 1000 VDC 20 A single circuit
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 4 687.83 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 5 158.31 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 446.82 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 537.09 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 116.62 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 216.27 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 333.03 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 389.48 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 943.80 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 969.31 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 769.13 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 281.58 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Estonia |
| countryOfAssembly | Estonia |
| countryOfLastProcessing | Estonia |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country of Origin | Estonia |
| Product Frame Size | XS |
| Product Net Width | 52.5 mm, 2.1 in |
| Product Net Height | 89 mm, 3.5 in |
| Product Net Depth / Length | 66.2 mm, 2.6 in |
| Product Net Weight | 0.14 kg, 0.31 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 100 mm, 3.9 in |
| Package Level 1 Depth / Length | 64 mm, 2.5 in |
| Package Level 1 Height | 100 mm, 3.9 in |
| Package Level 1 Gross Weight | 0.15 kg, 0.33 lb |
| Cable Cross-Section | 2.5 ... 16 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 45 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 45 A |
| Handle Color | Black |
| Handle Type | Knob |
| Mounting Type | Base mounting, DIN-rail mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Positive Opening Operation Torque (Direct Opening Action) | 0.4 … 0.8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 0.5 W, Total 1 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current DC-21B (Ie) | (660 V) 32 A, (1000 V) 20 A |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 0.8 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 0.8 kA, for 1 s 0.8 kA |
| Recommended Screw Driver | Main Circuit Torx |
| Shaft Diameter | 6 mm, 0.24 in |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Wire Stripping Length | Main Circuit 69 … 11 mm |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601357 |
| E-Number (Norway) | 4363632 |
| E-Number (Sweden) | 3134022 |
| extended_product_type | OTDC32F2 |
| category_paths | Products > Low Voltage Products and Systems > Switches > DC Switch-Disconnectors |
