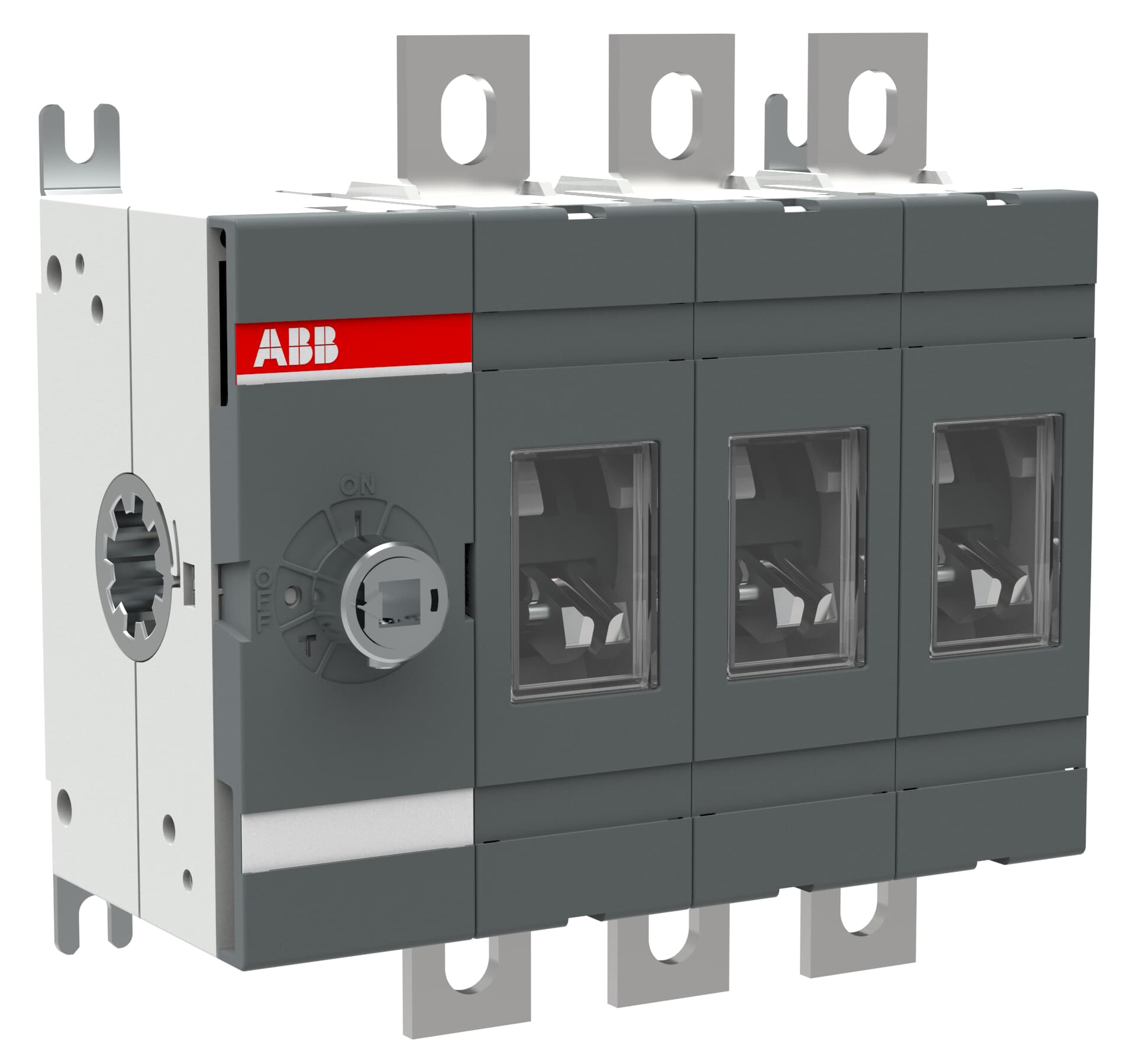

Артикул: 1SCA120509R1001
· Производитель: ABB
· EAN: 6417019518497
1SCA120509R1001
В наличии на нашем складе
Наличие в РФ
7 639.00 ₽
в наличии на складе · 1 шт.
Склад в Китае
10 661.46 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
9 658.02 ₽
срок ≈1 мес. (38 дн.)
OT switch-disconnectors are suitable for a wide range of demanding applications such as machinery, power distribution, switchboards and motor control center installations. These devices are globaly available and comply with all relevant standards. The complete OT range is available from 16A to 4000A for IEC and 16A to 2000A for UL market. Thanks to their modular structure from 160A and upward, they also help to create purpose-built solutions with the right pole configuration and can be equipped with direct mount handles or side-operated. The smart design eliminates also the need of major customization for busbar connections which saves costs. The switches can be found in both manual and motorized applications. The complete range also include a comprehensive range of inbuilt safety features and offers snap-on accessories that saves installation time and costs.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Наш склад | 7 639.00 ₽ | В наличии | 1 шт. | — | Заказать |
| Склад в Европе | 9 658.02 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 507.52 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 10 661.46 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 054.61 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 237.81 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 599.21 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 203.14 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 14 873.49 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 17 306.23 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 104.28 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 150 mm |
| Product Net Height | 145.5 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.3 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm, 6.7 in |
| Package Level 1 Depth / Length | 190 mm, 7.5 in |
| Package Level 1 Height | 145 mm, 5.7 in |
| Package Level 1 Gross Weight | 1.4 kg, 3.2 lb |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Distance Between Phases | Standard |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 3.2 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 200 A, (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 48 kW, (400 ... 415 V) 88 kW, (500 V) 112 kW, (690 V) 144 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642521 |
| extended_product_type | OT160EV03 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
