Артикул: 1SCA120100R1001 · Производитель: ABB · EAN: 6417019516882

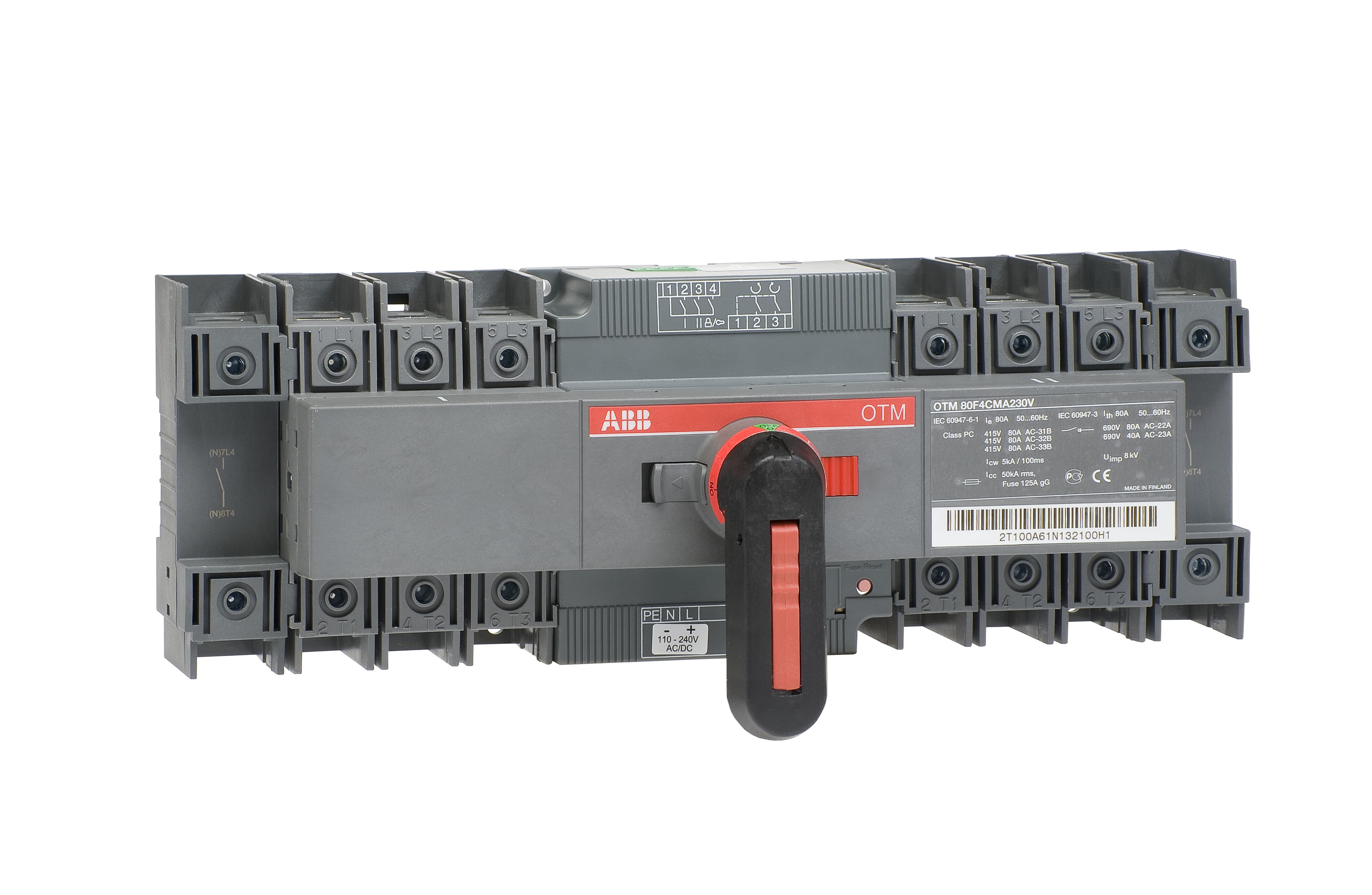

1SCA120100R1001

Name: OTM80F4CMA230V
Brand: ABB
SKU: 1SCA120100R1001
Availability: PreOrder

Под заказ

Наличие в РФ

нет в наличии

Склад в Китае

60 032.41 ₽

срок ≈1 мес. (45 дн.)

Склад в Европе

61 321.15 ₽

срок ≈1 мес. (38 дн.)

Запросить цену / заказать

Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits. Types OTM630...2500E_ include a storage clip for the handle and spare fuses.

Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Склад в Китае	60 032.41 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать
Склад в Европе	61 321.15 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Европе	66 845.05 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Китае	67 692.18 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Европе	68 071.70 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Китае	73 789.99 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Китае	75 144.09 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Европе	92 449.91 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать
Склад в Европе	96 344.72 ₽	уточняется	под заказ	—	Заказать
Склад в Китае	102 055.09 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать

Характеристики

countryOfOrigin	Finland
countryOfAssembly	Finland
countryOfLastProcessing	Finland
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Degree of Protection	Front IP20
Pollution Degree	3
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country of Origin	Finland
Product Net Width	283 mm, 11.14 in
Product Net Height	100 mm, 3.94 in
Product Net Depth / Length	116 mm, 4.57 in
Product Net Weight	1.86 kg, 4.1 lb
Package Level 1 Units	box 1 box
Package Level 1 Width	115 mm
Package Level 1 Depth / Length	315 mm
Package Level 1 Height	115 mm
Package Level 1 Gross Weight	1.86 kg
Cable Cross-Section	10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)	Θ = 40 °C 80 A
Conventional Thermal Current (Ithe)	Fully Enclosed 80 A
Distance Between Phases	Standard
Fourth Pole Position	Right Side
Fourth Pole Type	Switched - Simultaneous Function
Handle Color	Black
Handle Type	Direct Mount
Motor Operational Voltage	110 ... 240 V AC/DC
Mounting Type	Base mounting
Number of Poles	4P
Operating Mode	Front
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 3.5 W
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	800 V
Rated Operational Current AC-21A (Ie)	(380 ... 415 V) 80 A, (500 V) 80 A, (690 V) 80 A
Rated Operational Current AC-22A (Ie)	(380 ... 415 V) 80 A, (500 V) 80 A, (690 V) 80 A
Rated Operational Current AC-23A (Ie)	(380 ... 415 V) 80 A, (500 V) 60 A, (690 V) 40 A
Rated Operational Current AC-31B (Ie)	(380 ... 415 V) 80 A
Rated Operational Current AC-33B (Ie)	(380 ... 415 V) 80 A
Rated Operational Power AC-23A (Pe)	(380 ... 415 V) 37 kW, (500 V) 37 kW, (690 V) 37 kW
Rated Operational Voltage	Main Circuit 800 V
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 2.5 kiloampere rms
Switches Operating Mechanism	Mechanism at the End of the Switch
Terminal Type	Screw Terminals
Tightening Torque	acc. IEC 60947-1 6 N·m
Transition Type	Open
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122233
IDEA Granular Category Code (IGCC)	5208 >> Controller switch
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3601235
extended_product_type	OTM80F4CMA230V
category_paths	Products > Low Voltage Products and Systems > Switches > Change-over and Transfer Switches > Motorized Change-over Switches
