Артикул: 1SCA116799R1001
· Производитель: ABB
· EAN: 6417019488776
1SCA116799R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
27 251.10 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
24 686.29 ₽
срок ≈1 мес. (38 дн.)

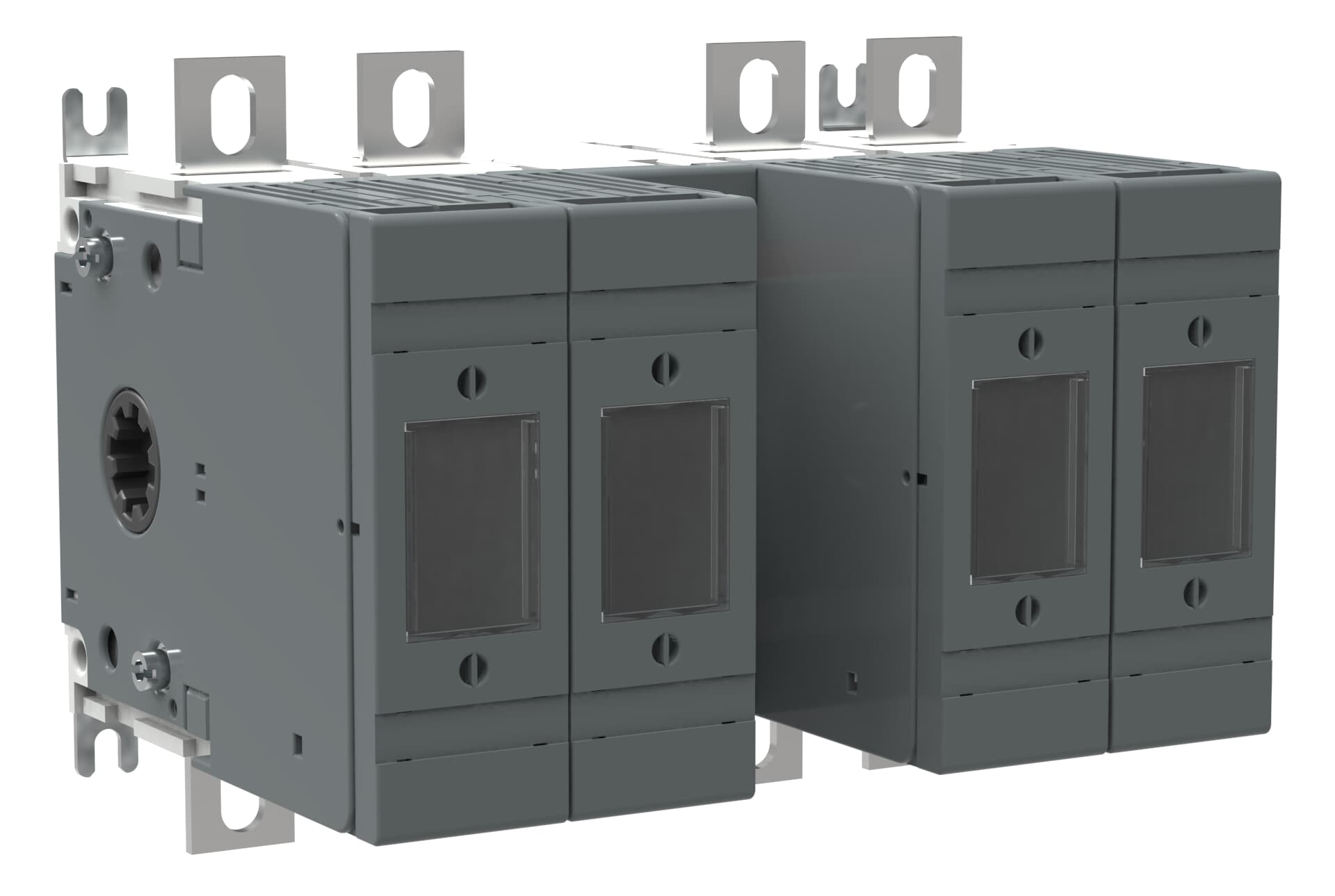

Switch-disconnector fuse, 125A, 4-pole, DIN,000/00, front operated, switched fusible fourth pole.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 24 686.29 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 24 691.96 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 24 700.67 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 27 251.10 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 27 257.36 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 27 266.97 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 591.63 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | cdfe0374-f5d3-41a3-a1e7-09aa3e1248f3 Finland |
| Simplified SCIP | 2aaa5e58-1ec1-4ccd-9664-48434d45440c Belgium, 876947f8-47cc-4bc8-a75e-344333b346bd Romania, 99192b10-ae0b-4567-90f8-9b6c479dcfe7 Spain, dfcf7523-4440-44a7-9dc4-cb03f1d927b0 France, 81220f0f-efa9-4456-853b-a92418e4bf91 Poland, 23f7a474-3b4e-46e6-8b9e-1bc866b55397 Poland, 64111433-0a58-42a0-b6d5-82ac72ff141e Sweden, 4eaefa45-41ff-42a3-8e7d-331724082446 Hungary, 30a5d5ea-c978-4d82-93df-18c469207609 France, d8de0a83-3275-4779-b00c-26dc58c6b9df Germany, 49fbf9a8-e651-4540-9aa0-104967af5899 Netherlands, 1c6a9ff2-3501-4c3b-8a96-502bc9706256 Poland, f95cf40b-05dd-4d47-949e-722d4ee369af Belgium, 8558643b-7e3d-4b0c-814c-3f50973cfaaa Croatia, 892c356e-77f9-4abe-9e50-b7c0b8096db9 Czechia, 560931e1-2676-4651-99d7-375400d4969d Estonia, ff1b021f-c633-4900-85c5-81ba5d594de4 Greece, f6f41f4d-51a6-4dba-86c6-2b039e27a45e Hungary, 90b81ba7-1be6-4cae-87c3-574434d2b3f3 Germany, 76c2156a-10a4-4243-9d99-200c29663cb2 Sweden, 50c16297-1fc6-4705-be2a-f9fb2f88d15e Portugal, 039b8e06-9745-422f-9a0c-d4a5e2edc291 Bulgaria, 2041f648-0993-4660-ac55-e5426b5b6d75 Norway, 63cc666a-713d-4ead-b4d5-9e6618efd1db Germany, 874dc084-b5d4-4aa6-a2f6-889321defa0e Denmark, ce4b5008-b38d-43fd-98fc-a6089bd9fff3 Germany, 51c9f1ff-f8df-4025-bcce-5acc4c73656b Italy, b4d802bf-bbdc-4fdd-a98c-4f98640c05da Germany |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 183 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.4 kg, 5.29 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm, 6.7 in |
| Package Level 1 Depth / Length | 220 mm, 8.7 in |
| Package Level 1 Height | 150 mm, 5.9 in |
| Package Level 1 Gross Weight | 2.6 kg, 5.6 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | NH000, NH00 |
| Fuse System | DIN |
| Handle Type | Handle Not Included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W, Total 12 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA, (690 V) 80 kA |
| Rated Current (In) | Main Circuit 125 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 125 A, (690 V) 125 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 125 A, (690 V) 125 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 125 A, (690 V) 125 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 37 kW, (400 V) 55 kW, (415 V) 55 kW, (500 V) 75 kW, (690 V) 110 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OS125GD22F |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
