Артикул: 1SCA115449R1001
· Производитель: ABB
· EAN: 6417019478074
1SCA115449R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
23 798.58 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
27 545.69 ₽
срок ≈1 мес. (38 дн.)

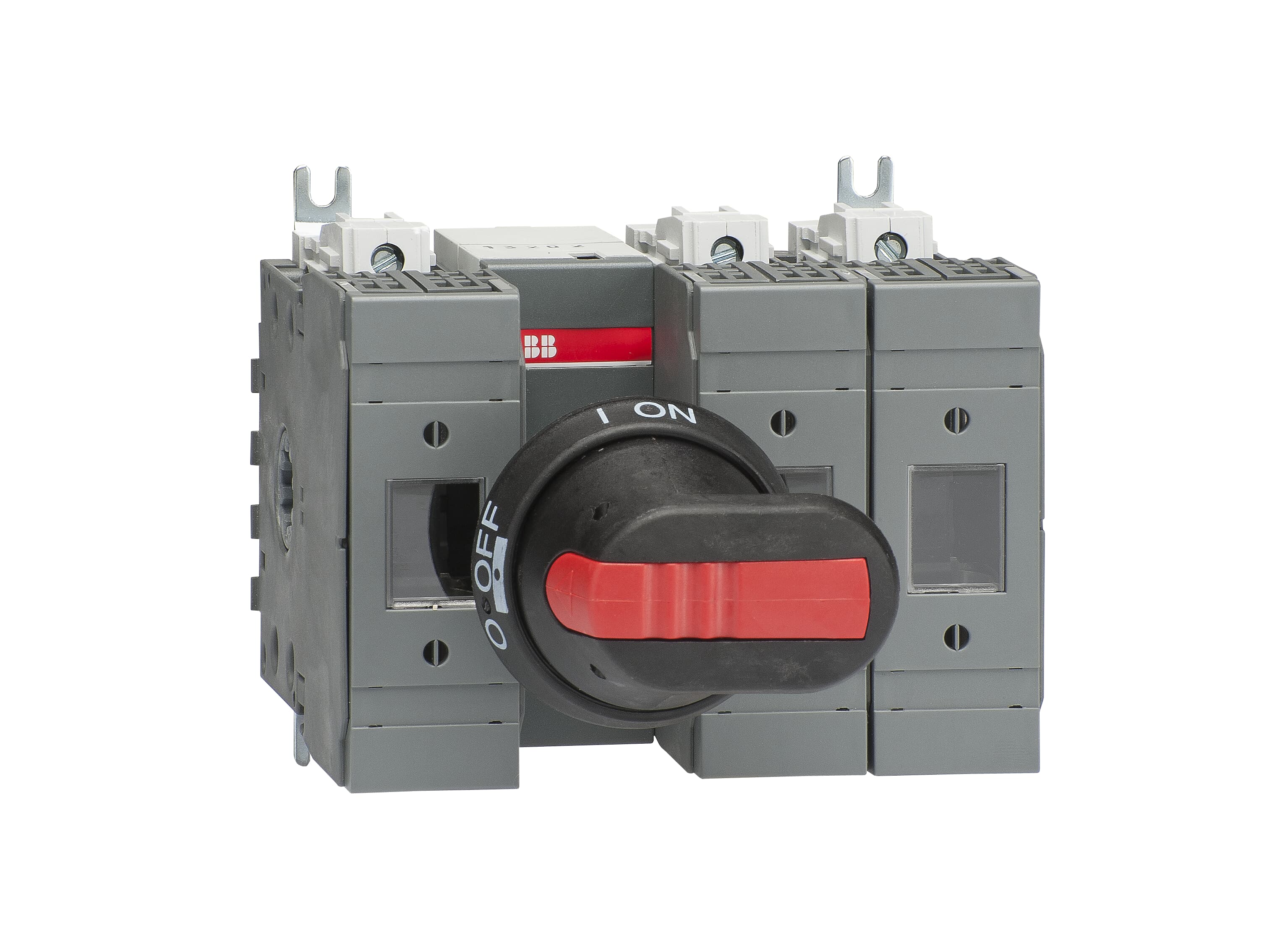

Fusible disconnect switch, 60A, 3-pole, Class J, front operated, handle and shaft included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 23 798.58 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 27 545.69 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 27 572.19 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 29 239.77 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 30 407.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 30 436.83 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 33 637.19 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 470.23 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 649.82 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 40 457.59 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 42 226.31 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0cbee854-ca99-48f3-b24d-c01c47fe8f68 Finland |
| Simplified SCIP | a81da884-4da0-4f0c-a8a9-d22aa8fa77e9 Germany, 2024e516-c852-48fe-8ec6-57d256c62b24 Greece, 010061d3-a98a-4879-a291-30256a905859 Bulgaria, e2b1aa6b-ea4e-408b-b443-d6408d4ef11b Norway, 778b13f7-20e5-44ee-8a35-283f64dfa248 Belgium, 4fdb41d8-8806-41af-9993-a4814f0cad25 Poland, dc35cc78-f5ab-453b-b706-ebca289cdf40 Sweden, eb01543c-7170-4169-9768-d5e745295a0b Poland, 5f220204-b33d-4a45-a896-a853aacccc5c Spain, f190fef8-2332-4e61-8648-ed32c6c9df28 Belgium, 9412812c-56ab-4173-a98b-c6b5adf783f1 Portugal, 93c5760e-63d8-4a23-b1ec-a4c357aa1fc5 Germany, 21509c6f-50d7-4985-ac8f-905af10afc8d Estonia, 82671fb5-1393-4af1-ac0f-3b0f69ab6436 Germany, 5a08171e-3be9-4fb2-a55f-865e7fe33fca Sweden, d1415918-fcc8-49c1-891c-ced11f2706c9 France, 4016c4d8-5304-4fea-b6b8-2cdbabc39d44 Czechia, 049b21a1-a5c6-45e0-9f53-784de08308d0 Hungary, ff1ac8d3-31ce-4320-9ea6-a94170516b27 Denmark, 13d37914-a414-4b0b-9b1a-f48400b4b9e3 Croatia, 50d61ddc-919e-4859-aca1-e3f77f8dcb2d Germany, 3b2ce002-ee9d-4d12-9bb2-14f05b41453f Germany, c10b1492-84d2-4d1f-98ec-cf61397eb6f4 Poland, 0a512428-2f75-44cd-98c0-b2fbcc2097c2 Italy, 7f42dde2-7b68-432f-a167-42c82814547b Netherlands, 8d9be28a-fd35-4535-99d2-a3cf576e4de9 Hungary, 73fe878e-a4dd-44f6-80c2-28c1803c0d3d France |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 145 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 118 mm |
| Product Net Weight | 1.3 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm, 6.7 in |
| Package Level 1 Depth / Length | 220 mm, 8.7 in |
| Package Level 1 Height | 150 mm, 5.9 in |
| Package Level 1 Gross Weight | 1.45 kg, 3.2 lb |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm², Flexible 2.5 … 25 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Fuse Size | 60 A |
| Fuse System | Class J |
| Handle Type | Pistol |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2 W, Total 6 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 60 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 60 A, (690 V) 60 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 60 A, (690 V) 60 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 60 A, (690 V) 60 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW, (400 V) 30 kW, (415 V) 30 kW, (500 V) 37 kW, (690 V) 55 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | UL98, IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m, 4 N·m |
| Wire Stripping Length | Main Circuit 12 mm, Main Circuit 0.47 in |
| Ampere Rating | 60 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 15 Hp, (acc. to UL 480 V) 30 Hp, (acc. to UL 600 V) 50 Hp |
| Tightening Torque UL/CSA | Wire-Clamp 30 in·lb, Wire-Clamp 35 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601579 |
