Артикул: 1SCA115204R1001
· Производитель: ABB
· EAN: 6417019476445
1SCA115204R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
16 687.82 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
15 117.20 ₽
срок ≈1 мес. (38 дн.)

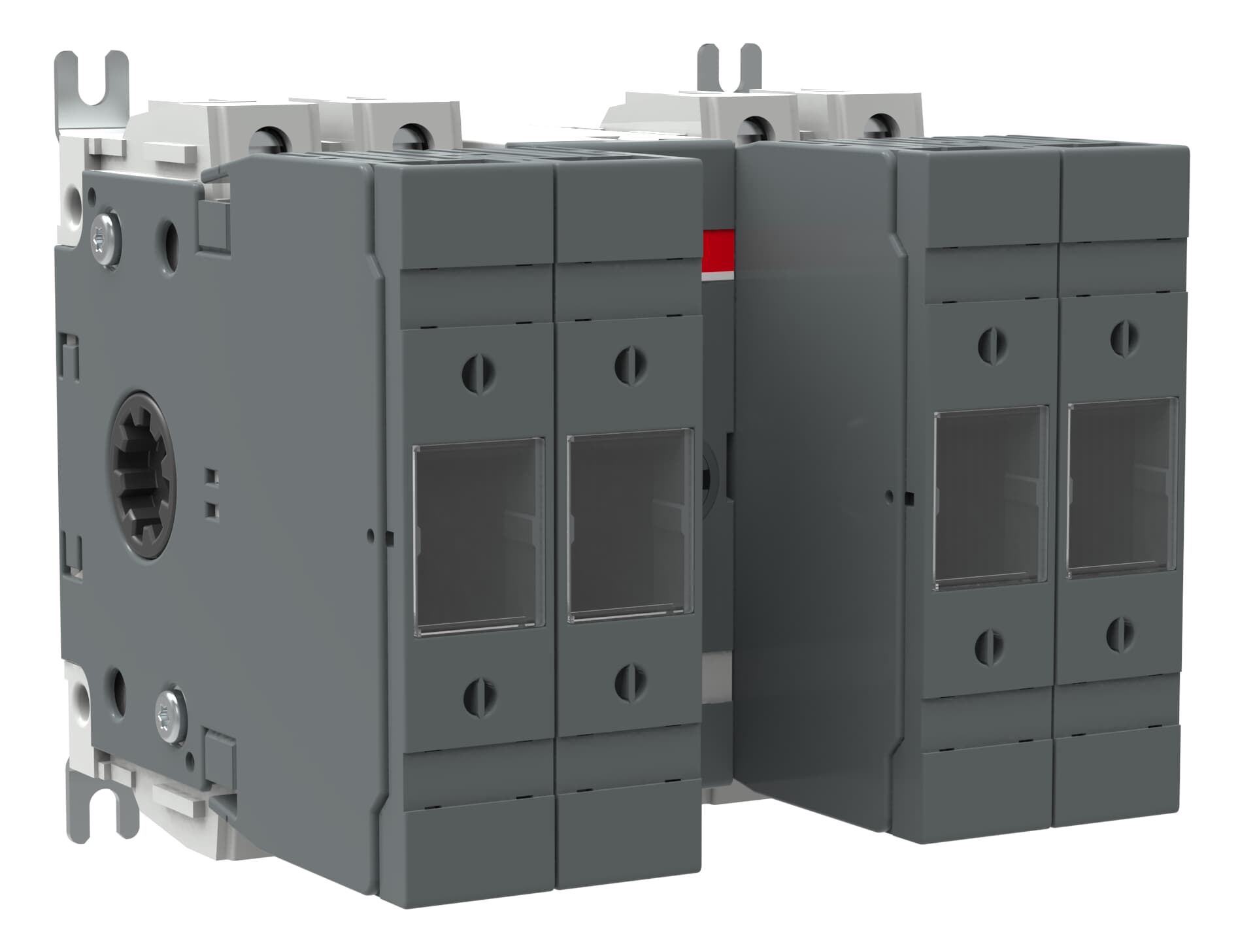

Switch-disconnector fuse, 32A, 4-pole, DIN 000, front operated, switched fusible fourth pole.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 15 117.20 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 642.10 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 648.36 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 16 687.82 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 371.14 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 378.06 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 24 661.60 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 61a116a0-a447-4386-bf9e-3c38b9075119 Finland |
| Simplified SCIP | 035d41cd-62a2-4256-9e2c-1b200a952fab Italy, 0afbed50-a75a-494d-90ec-7d2f2435e9ad Spain, f72b43df-5259-4aa2-8631-0d8e47c0e454 Germany, df977495-3a59-4822-b551-0b111cfb8346 Belgium, 99d1676b-a9d1-4987-b6e5-c68b2de26c38 Germany, 265e2327-1d44-43f8-9b31-4defa41a5e24 Norway, 055e5be4-de80-43ff-98d8-82cf1017af0f Portugal, 3279a0d2-e33a-4142-b3fb-0537650a2c93 Sweden, dee7fdf3-fb44-4093-93ca-97a8499b72b7 Hungary, 8b1efe35-faba-45bb-aed3-970acfe6688c Greece, 6a0742d1-73d7-49e1-a999-ca5e79f0a7c3 Estonia, 6663fd8d-26d5-4af1-b3eb-b49407d6a251 Netherlands, 1827e637-4f86-4edf-b52f-8da11f3e9b3b Poland, d4d36b17-792c-4371-9b76-0d17174f1a2b Czechia, f8305a5f-8ab7-4d98-baa9-f36465889fec Croatia, 7edf1d53-719b-4622-841f-b94fbb9a69a9 Germany, bb90d773-1489-4460-ae8e-73755404cc4e Denmark, d6066fa2-550e-4fd4-aad8-510a2262a11a Bulgaria, 8a109096-1760-4b6f-a0aa-28093201033a Poland, c1911a15-d1fa-41c1-9041-8bf8e085cf65 Poland, b7ad2a74-88c6-46b6-8f07-87eb15d3ae34 Germany, 9df05566-8f49-4cc0-b7eb-70f507506c61 France, 6fc5cf70-70db-4ebf-91b5-ea6533ad4ccc Hungary, bfd96c01-9997-4ecc-939f-c4d28aff96ce Germany, 72240831-d5ef-4575-90ee-cf45b7d4301d Sweden, b40871ee-7162-4808-adfd-8c765e127611 France, 750ce460-def1-424c-991c-aee417b76b08 Belgium, 474835be-50e4-47a0-9a3a-7f5409df2b39 Romania |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 138 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 1.2 kg, 2.65 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm, 6.7 in |
| Package Level 1 Depth / Length | 190 mm, 7.5 in |
| Package Level 1 Height | 145 mm, 5.7 in |
| Package Level 1 Gross Weight | 1.3 kg, 2.9 lb |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm², Flexible 2.5 … 25 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Handle Not Included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1 W, Total 3 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA, (690 V) 80 kA |
| Rated Current (In) | Main Circuit 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A, (690 V) 32 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A, (690 V) 32 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A, (690 V) 32 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW, (400 V) 15 kW, (415 V) 15 kW, (500 V) 18.5 kW, (690 V) 22 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m, 4 N·m |
| Wire Stripping Length | Main Circuit 12 mm, Main Circuit 0.47 in |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660324 |
| extended_product_type | OS32GD22F |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
