Артикул: 1SCA108817R1001
· Производитель: ABB
· EAN: 6417019420790
1SCA108817R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
13 705.61 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
15 203.88 ₽
срок ≈1 мес. (38 дн.)

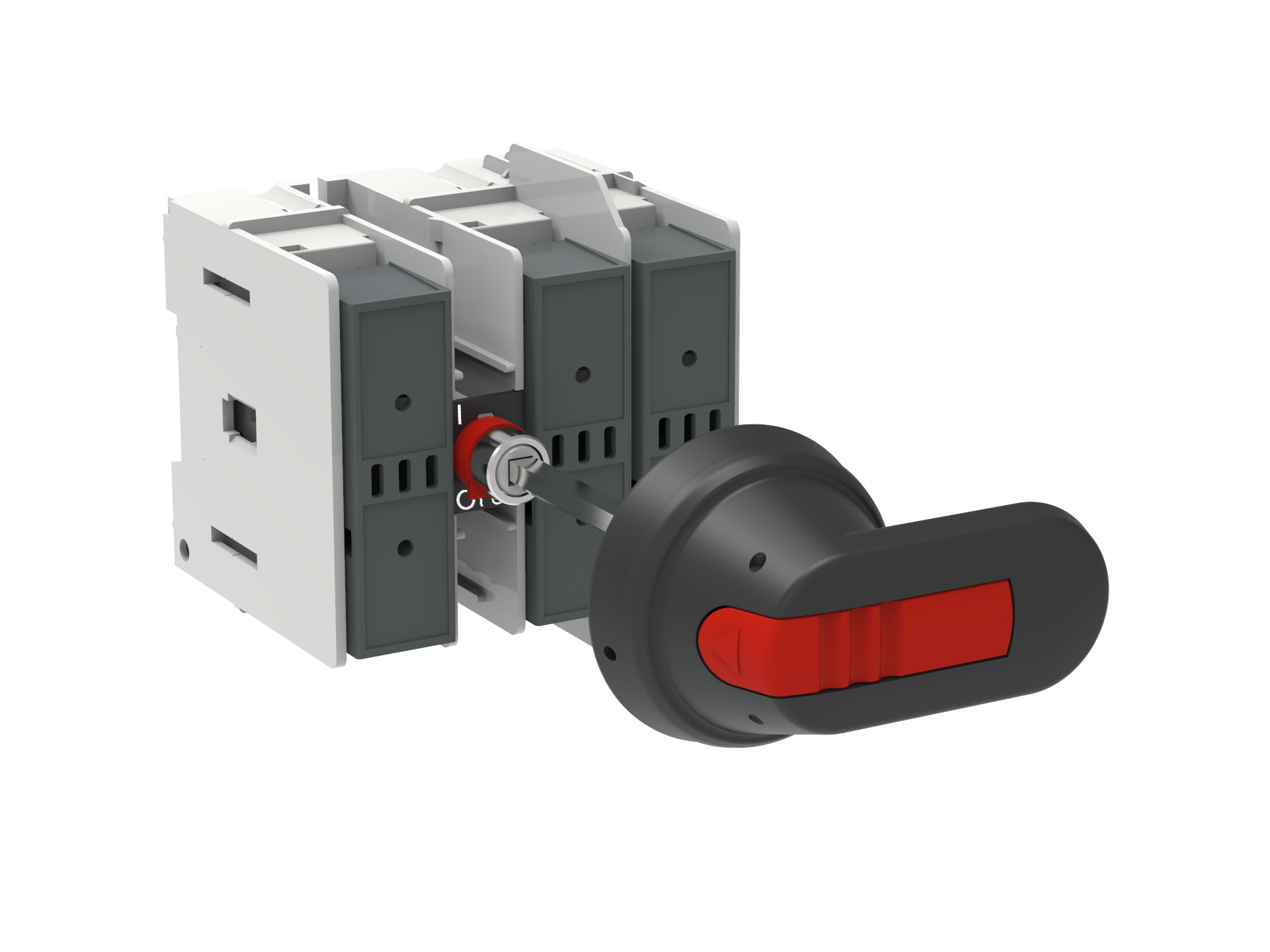

Fusible disconnect switch, 30A, 3-pole, Class CC, front operated, handle and shaft included.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 13 705.61 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 15 203.88 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16 383.50 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 16 783.50 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17 484.40 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18 085.68 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19 300.96 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 21 106.63 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 23 299.53 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 26 849.32 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Lithuania |
| countryOfAssembly | Lithuania |
| countryOfLastProcessing | Lithuania |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5f84fa03-3aef-4b57-b0d3-9f1ea897508e Finland |
| Simplified SCIP | b3b1bf83-824b-4519-963a-306a1977f158 Hungary, d4b992f5-5dea-4433-9de5-893878f72f41 Romania, ceece1a1-7b5f-40c5-ab81-16ae8cc0866f Belgium, db91bbd5-00a4-473a-b96b-84528b69fd29 Spain, bc21de2c-1b3d-4c32-b3d8-a3d2dbdc2198 France, 20648b02-80ce-4e7b-8840-3cc78546d338 Germany, 1418fc8a-8637-4750-ba98-46d07d66e308 Sweden, 793dc5de-f435-41c2-b959-6e88cc073b44 Poland, 1efb7bc1-aa0c-40c6-ac4d-ad30dd7c6dc9 Poland, 4f94a88d-a61b-445a-893b-5276c38cbcda France, 442cb02d-a1fd-42d7-8e74-746e196b4c63 Sweden, 33b22669-13b6-4d1e-a111-a04f0b2637ee Bulgaria, 65965807-ce03-46f2-9fa2-7f200501d3a9 Portugal, f21ceb5c-2680-4dd5-849d-774d12a90691 Estonia, 06b4dd76-2272-4346-a860-c50a127c3aac Germany, 54f544ef-8c7e-4e4a-99c6-3dfe0d75dd9a Greece, 21bfbbb2-7155-4ed0-b86b-b9d642d988b8 Hungary, 5921d468-55b7-4e3c-9d48-ad8a077a7092 Poland, 14f8b4f3-ced0-4073-b298-0d2567b3ca35 Netherlands, 38051cc1-346f-48a2-a416-5ccdf5f0f95f Germany, a3f098c0-2964-4e78-a9cf-d6c73a14f818 Croatia, f09be6fe-f7e3-4fa9-a293-11974731418d Czechia, 7600018c-63fb-45d3-ab7c-b2845be5819d Norway, 1d9ad9ed-861b-4ed7-b01c-add55036b9db Denmark, 8ad49bfb-955b-4f5e-8f88-db08bb781e4a Belgium, 733461d2-2473-4ddc-84a0-9984544b70d2 Germany, b53e595f-384e-4cb9-9808-b59d037b4cb3 Italy, 43672ced-ebd1-4cf2-9f41-1210149e0a82 Germany |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Lithuania |
| Product Net Width | 106 mm |
| Product Net Height | 97 mm |
| Product Net Depth / Length | 105 mm |
| Product Net Weight | 0.63 kg, 1.39 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm, 5.12 in |
| Package Level 1 Depth / Length | 234 mm, 9.21 in |
| Package Level 1 Height | 130 mm, 5.12 in |
| Package Level 1 Gross Weight | 0.74 kg, 1.63 lb |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 0.75 … 10 mm², Flexible 0.75 … 10 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Fuse Size | 30 A |
| Fuse System | Class CC |
| Handle Type | Pistol |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2 W, Total 6 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 30 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 30 A, (690 V) 30 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 30 A, (690 V) 30 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 30 A, (690 V) 30 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW, (400 V) 15 kW, (415 V) 15 kW, (500 V) 18.5 kW, (690 V) 22 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
| Recommended Screw Driver | Main Circuit Slot |
| Standards | UL98, IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 1.5 … 2 N·m |
| Wire Stripping Length | Main Circuit 12...14 mm, Main Circuit 0.47…0.55 in |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC, Main Circuit 250 V DC |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 7.5 Hp, (acc. to UL 480 V) 15 Hp, (acc. to UL 600 V) 20 Hp |
| Tightening Torque UL/CSA | Wire-Clamp 17 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661962 |
