Артикул: 1SCA108347R1001
· Производитель: ABB
· EAN: 6417019416472
1SCA108347R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
8 627.48 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
9 536.72 ₽
срок ≈1 мес. (38 дн.)

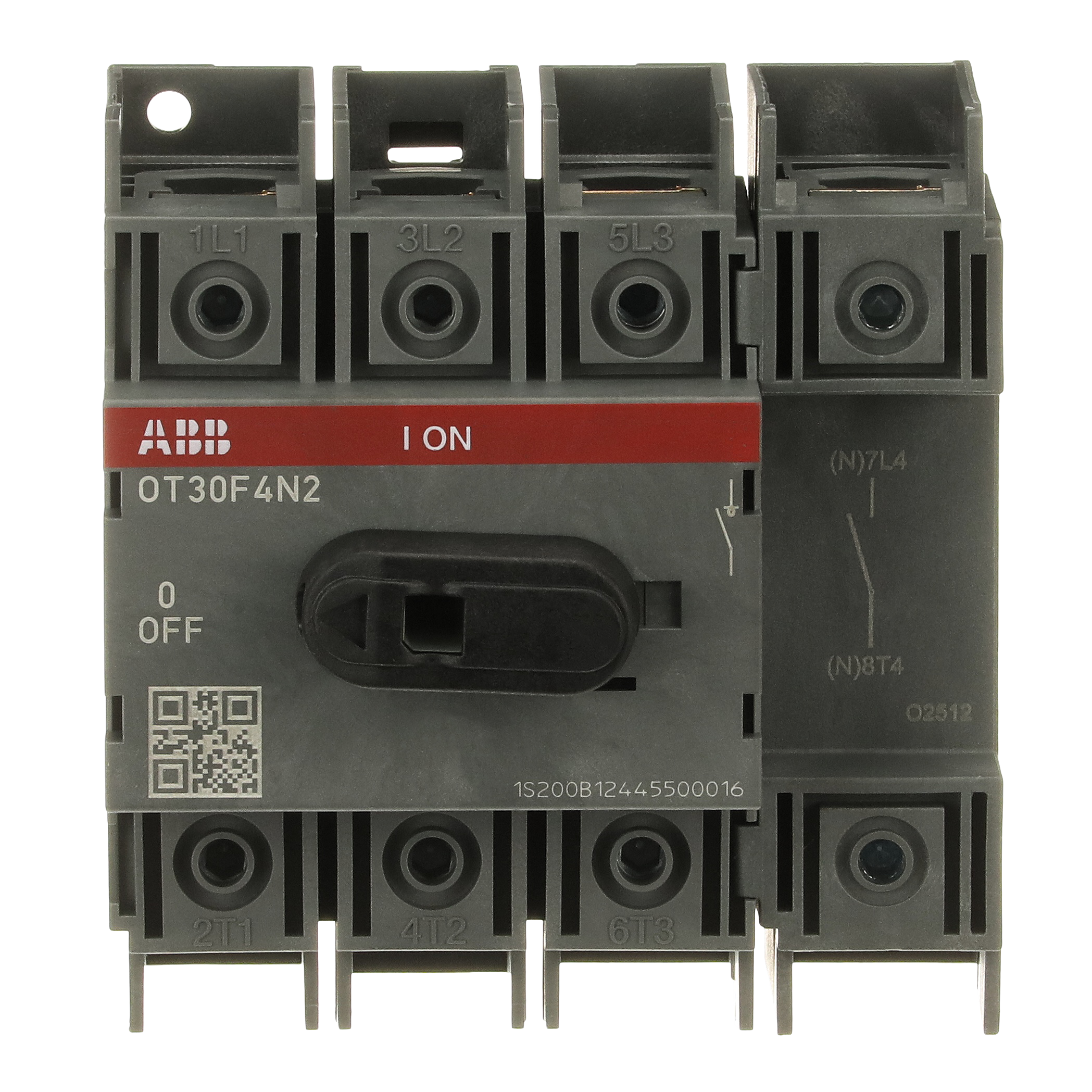

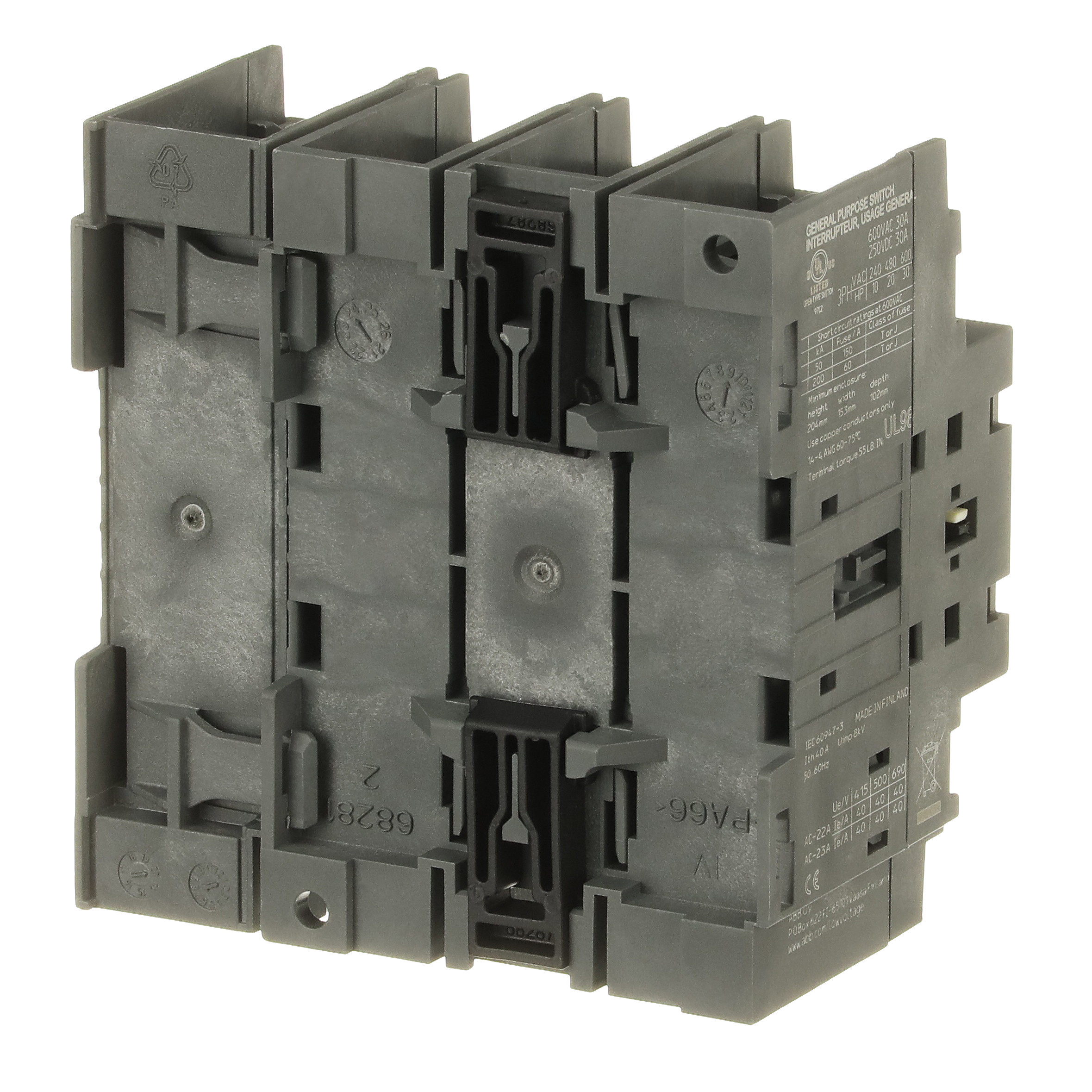

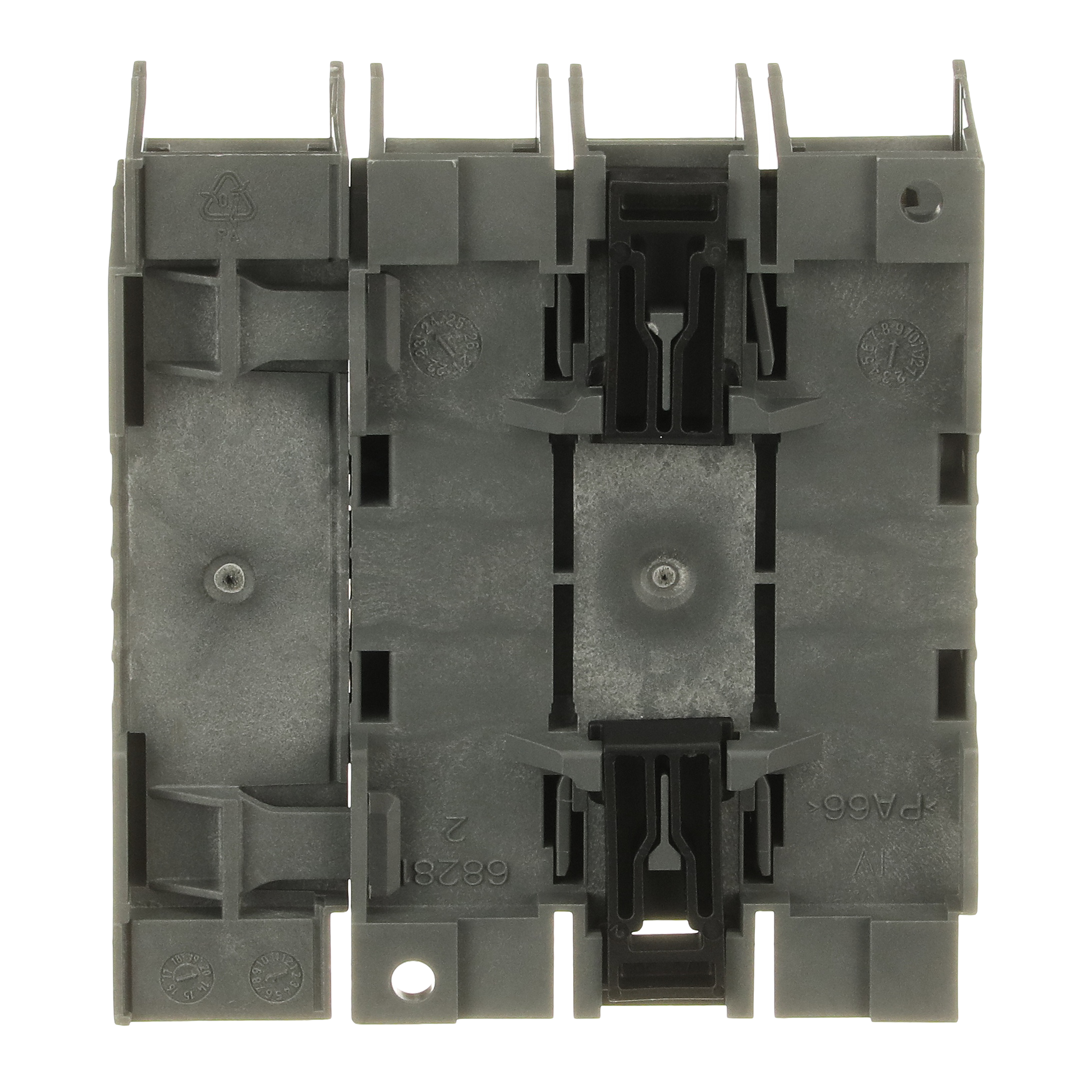

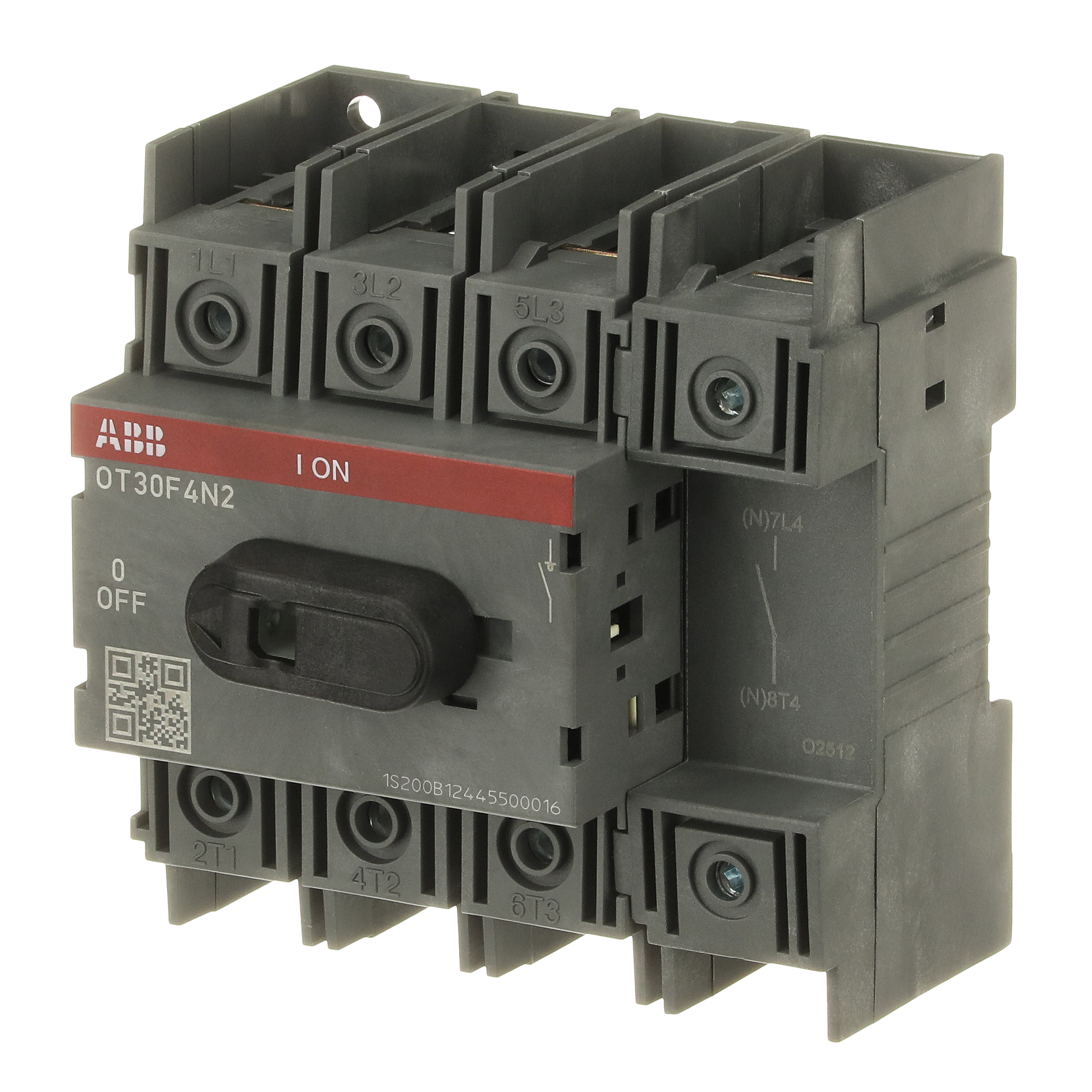

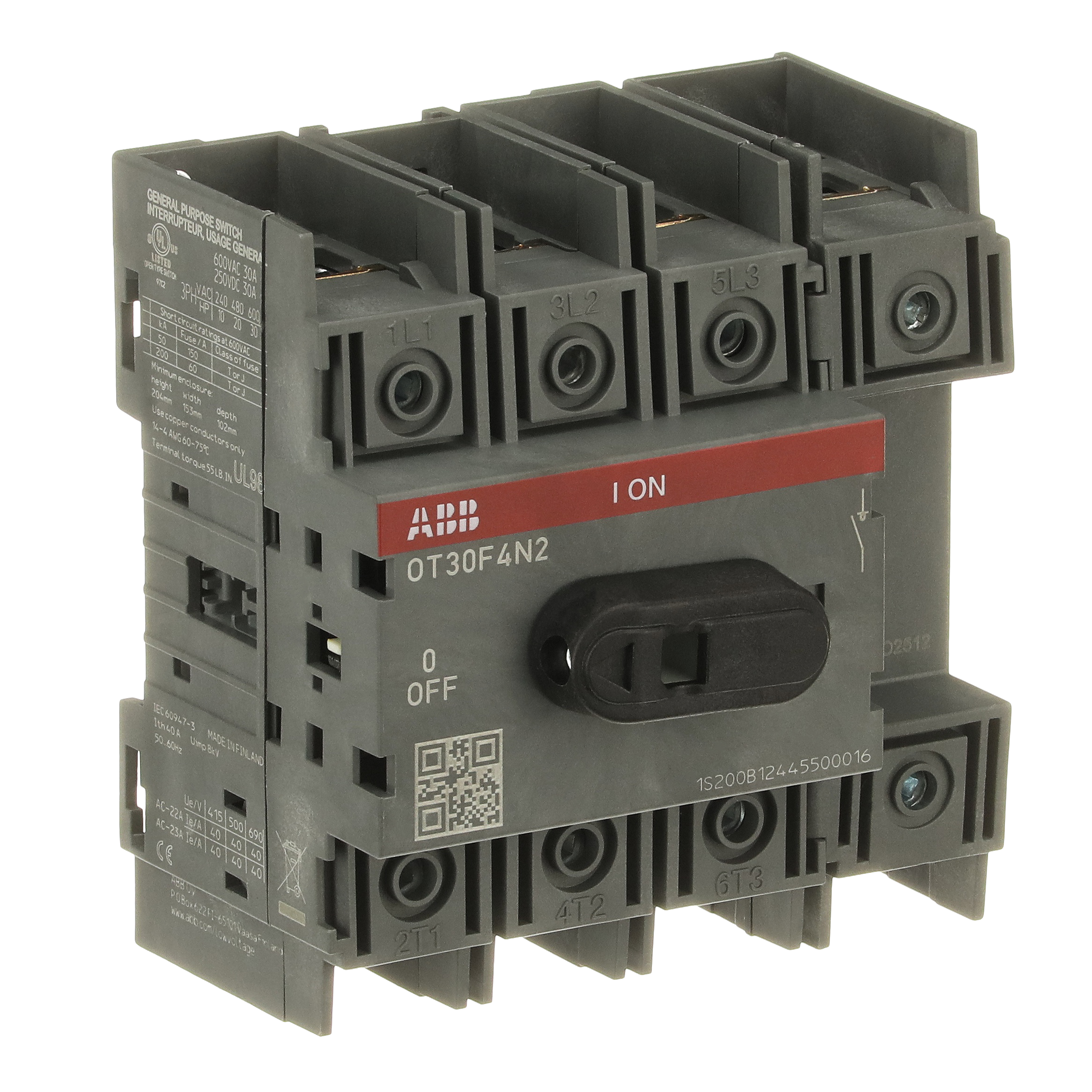

4-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 8 627.48 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 9 536.72 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 377.42 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 10 527.55 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 11 074.86 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 455.59 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 12 225.50 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 13 286.31 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 14 666.71 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 14 691.53 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 96.5 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 86 mm |
| Product Net Weight | 0.43 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 109 mm |
| Package Level 1 Depth / Length | 112 mm |
| Package Level 1 Height | 86 mm |
| Package Level 1 Gross Weight | 0.46 kg |
| Cable Cross-Section | Cu 2.5 ... 25 mm² |
| Color | Grey |
| Connecting Capacity Main Circuit | Flexible 1x Cu 2.5…25 mm², Stranded 1x Cu 2.5…25 mm² |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Knob |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 0.7 W |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA, (125 A fuse, 690 V) 10 kA, (63 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 18.5 kW, (500 V) 22 kW, (690 V) 37 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6.2 N·m |
| Wire Stripping Length | Main Circuit 17-18 mm |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp, (240 V AC) Single Phase 5 Hp, (220 ... 240 V AC) Three Phase 10 Hp, (440 ... 480 V AC) Three Phase 20 Hp, (550 ... 600 V AC) Three Phase 30 Hp |
| Wire Size | 1x 12-2/0 AWG, 2x 12-4 AWG |
| Tightening Torque UL/CSA | 55 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
