Артикул: 1SCA107327R1001
· Производитель: ABB
· EAN: 6417019408187
1SCA107327R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
84 379.17 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
76 437.60 ₽
срок ≈1 мес. (38 дн.)

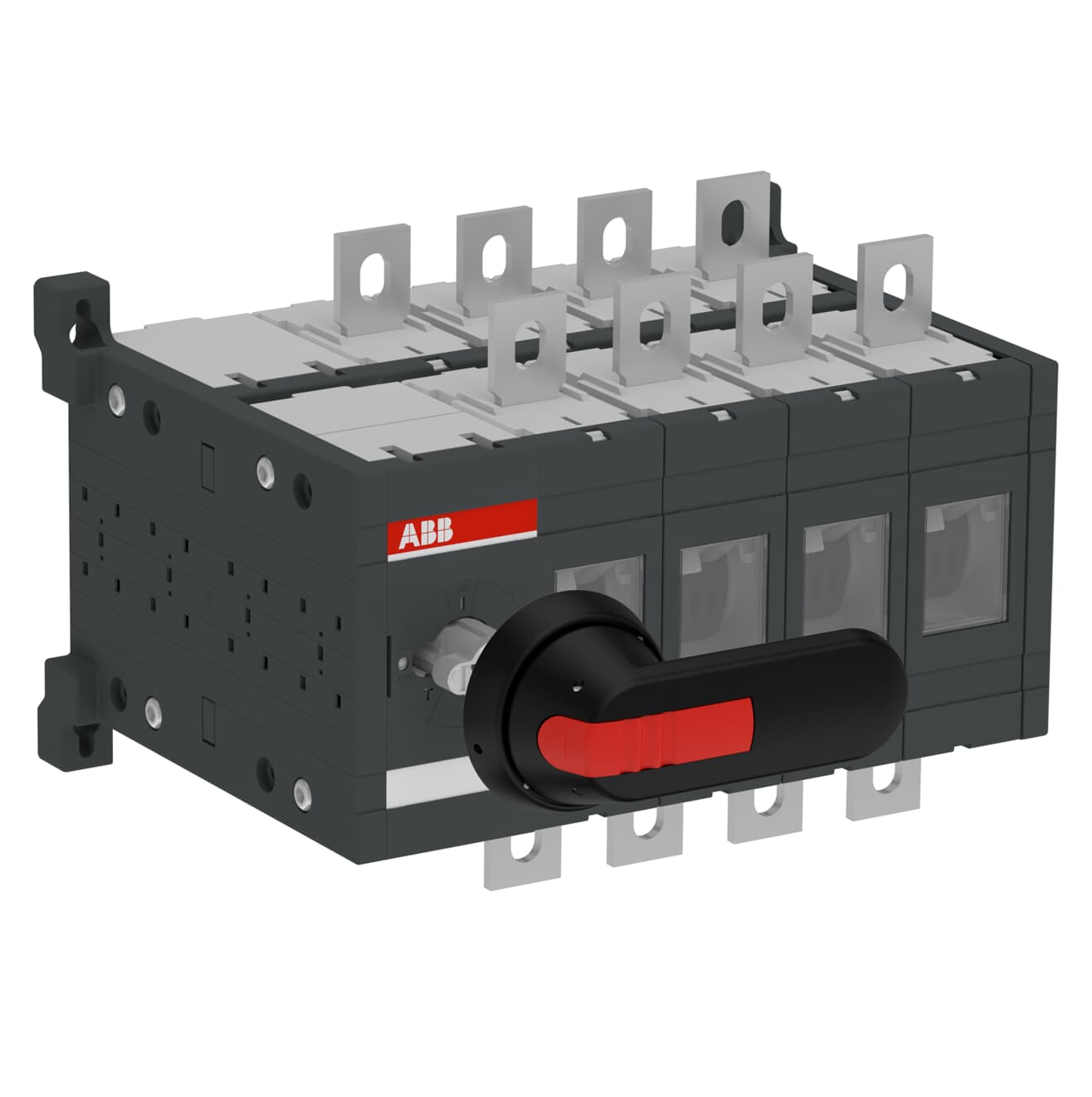

OT400E04DP SWITCH-DISCONNECTOR
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 76 437.60 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 84 379.17 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 89 712.75 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 92 627.79 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 99 033.55 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 102 251.46 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 136 642.24 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 265 mm |
| Product Net Height | 185 mm |
| Product Net Depth / Length | 202.5 mm |
| Product Net Weight | 7.6 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 240 mm |
| Package Level 1 Depth / Length | 325 mm |
| Package Level 1 Height | 218 mm |
| Package Level 1 Gross Weight | 8 kg |
| Color | Grey |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Handle Color | Black |
| Mechanical Durability | 16000 |
| Number of Poles | 8P |
| Operating Mode | Front |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 A fuse, 500 V) 100 kA, (500 A fuse, 690 V) 80 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW, (400 ... 415 V) 230 kW, (500 V) 280 kW, (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Standards | IEC 60947-3 |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT400E04DP |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
