Артикул: 1SCA107220R1001
· Производитель: ABB
· EAN: 6417019407104
1SCA107220R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
25 170.94 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
31 177.20 ₽
срок ≈1 мес. (38 дн.)

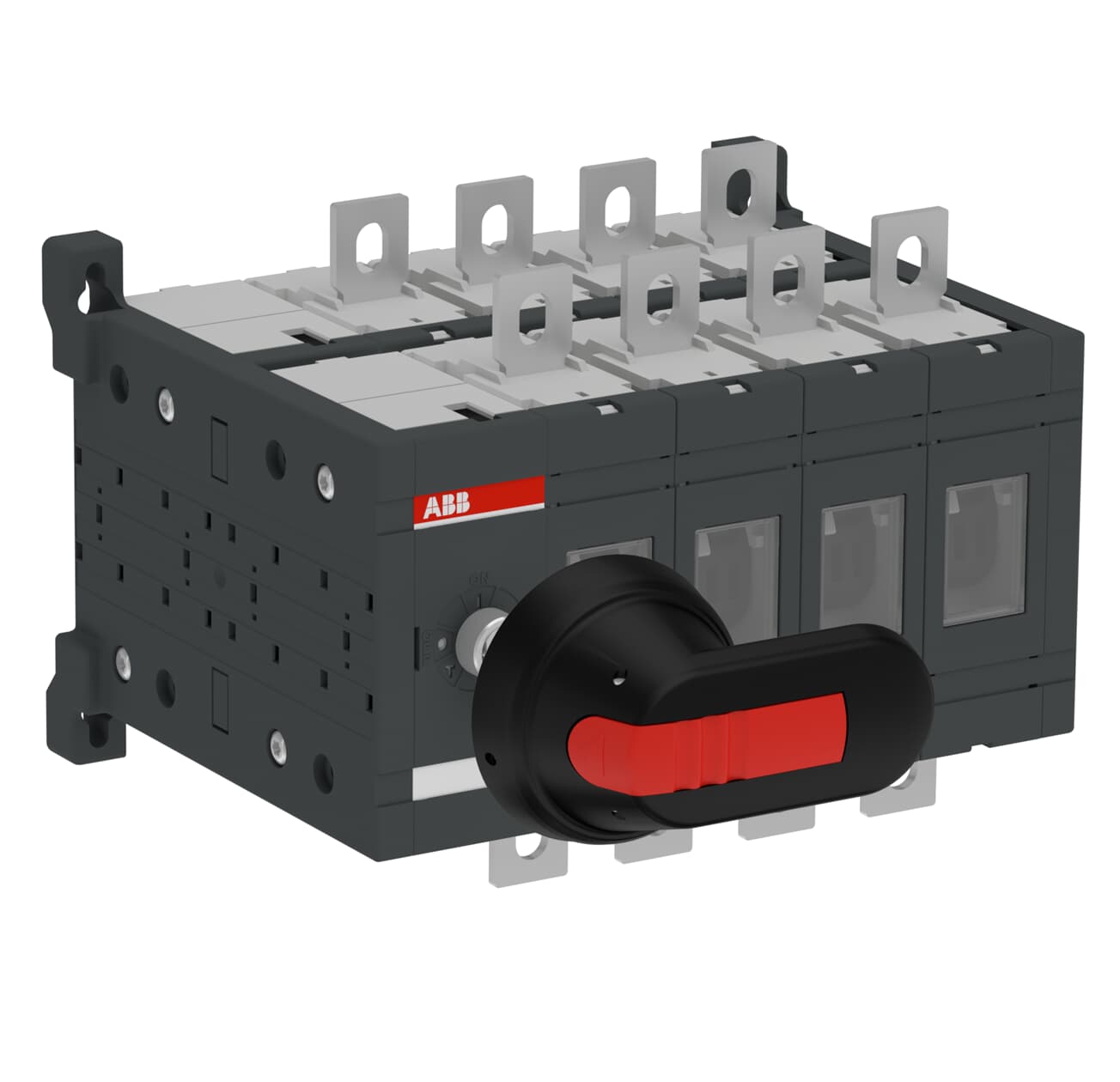

OT160E04DP SWITCH-DISCONNECTOR
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 25 170.94 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 31 177.20 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 34 416.39 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 36 593.23 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 40 395.13 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 42 790.59 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 43 028.51 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 46 400.95 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 51 221.82 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 55 733.93 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | be35b7f0-ec49-4821-9ef1-a2fcd55d45d2 Finland |
| Simplified SCIP | b4844590-23ad-44dd-b556-05bca89004ea Portugal, a6af5609-9542-4cae-affe-a53fd945e9b8 Germany, 4a7518f7-73cc-4f91-a660-a75daabce8ac Croatia, 0662e0d1-9fb3-4443-8ac7-04e59733ee0b France, 8d69fde5-ca31-4169-ab4a-921f2e12d535 Poland, 6ce46dc9-1ce6-42f2-a1a5-b4af7d8fed59 Italy, 2a4f6add-13ef-47dc-9acf-5a60ca51513b Germany, 707d7046-7c6e-4505-864c-1738d425d1b6 Spain, f1446ca3-af76-4f34-bd23-2e6d4d410f6e Norway, 03066935-75f9-473a-ab74-c9536ce42b58 Germany, d0e31c27-3c51-4ae2-bd81-f30a6ea6f58e Czechia, 6e173b52-5077-4882-bdc4-698df868f0ee Belgium, 83684679-7ca6-4beb-b813-f22c6fe236ec Romania, 8b6b5642-9979-4d73-aeec-fdb17ae4222e Germany, ae2287eb-2086-44a4-a9c3-9e73fd399565 Poland, 6692e97b-4d15-4ae7-a5c2-7d61d23891c6 Bulgaria, 1518e1be-4975-4f2e-befb-dc2b472c798d Germany, 06cee498-7971-4144-b3f9-2490794cbde9 Denmark, 9d8510bb-2aa9-43bf-9755-89bd888a1018 Sweden, c6254609-1fa4-42da-96f3-9d329575de2d Hungary, 4e37fb0a-d833-47cb-a684-10d5a563155c Estonia, 9a2c10dc-e8bb-40fd-a0b3-324d831273f3 Greece, 616f3781-0b8a-4280-b411-1d6c4c353273 Poland, d0cb8c49-d8ea-4d6f-bfd7-199986cf9416 Netherlands, c958ce5f-9041-4660-abbe-cde4f89a94af Belgium, 477a4566-9982-4e9e-bfe1-4d6f750f8ede Sweden, 32ebdca4-0b7e-4033-b6df-54fcfce75e8b France, dc1d506f-7183-4fe0-83b5-8f0cce78674d Hungary |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 205 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 159.5 mm |
| Product Net Weight | 3.8 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| Package Level 1 Depth / Length | 270 mm |
| Package Level 1 Height | 185 mm |
| Package Level 1 Gross Weight | 4.2 kg |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Color | Grey |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Handle Color | Black |
| Mechanical Durability | 20000 |
| Number of Poles | 8P |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA, (355 A fuse, 690 V) 80 kA, (250 A fuse, 690 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (690 V) 160 A, (690 V) 380415V;160 A, (690 V) 500V;160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A, (500 V) 160 A, (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 135 A, (500 V) 125 A, (690 V) 80 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW, (400 ... 415 V) 75 kW, (500 V) 75 kW, (690 V) 75 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Standards | IEC 60947-3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OT160E04DP |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Disconnectors |
