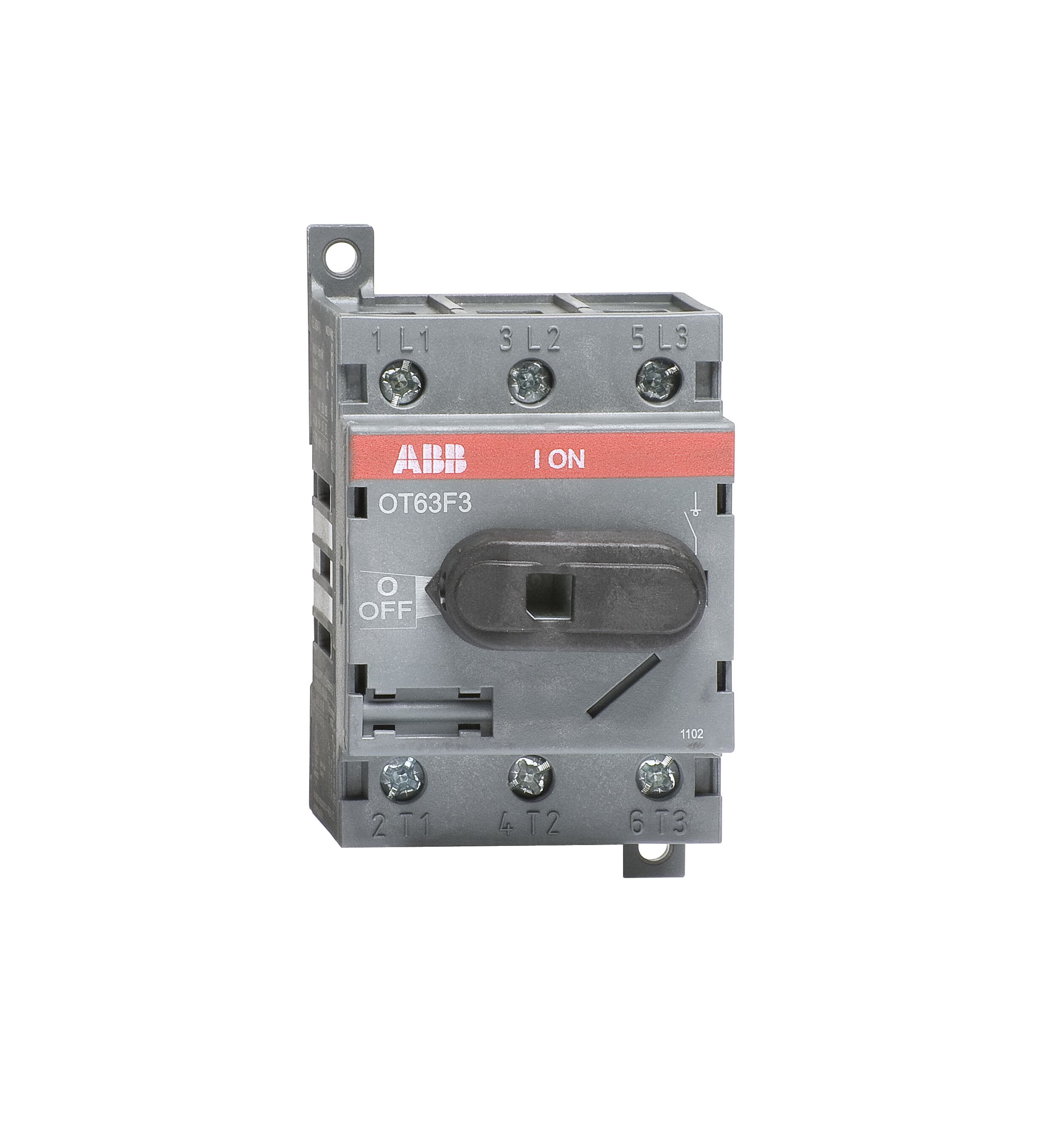

Артикул: 1SCA105332R1001
· Производитель: ABB
· EAN: 6417019392912
1SCA105332R1001
В наличии на нашем складе
Наличие в РФ
2 049.00 ₽
в наличии на складе · 32 шт.
Склад в Китае
2 107.94 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
2 893.47 ₽
срок ≈1 мес. (38 дн.)
3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Наш склад | 2 049.00 ₽ | В наличии | 32 шт. | — | Заказать |
| Склад в Китае | 2 107.94 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 721.71 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 893.47 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 912.40 ₽ | ≈2 нед. (17 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 939.46 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 194.09 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 244.85 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 322.33 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в России | 3 437.64 ₽ | 5 дн. | 215 шт. | — | Заказать |
| Склад в Европе | 3 454.00 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 583.50 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 3 812.86 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 3 816.96 ₽ | ≈2 нед. (17 дн.) | под заказ | — | Заказать |
| Склад в Европе | 4 191.43 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 4 626.90 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 4 955.57 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 52.5 mm |
| Product Net Height | 91.5 mm |
| Product Net Depth / Length | 72.5 mm |
| Product Net Weight | 0.25 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 63 mm |
| Package Level 1 Depth / Length | 103 mm |
| Package Level 1 Height | 85 mm |
| Package Level 1 Gross Weight | 0.27 kg |
| Cable Cross-Section | Cu 1.5 ... 35 mm² |
| Color | Grey |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x Cu 1.5…4 mm², Solid 1x Cu 1.5…6 mm², Flexible 1x Cu 1.5…35 mm², Stranded 1x Cu 1.5…35 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Distance Between Phases | Standard |
| Handle Type | Knob |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Conditional Short-Circuit Current (Inc) | (100 A fuse, ≤415 V) 50 kA, (100 A fuse, 500 V) 100 kA, (80 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A, (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A, (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A, (500 V) 45 A, (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 11 kW, (400 ... 415 V) 22 kW, (500 V) 22 kW, (690 V) 15 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 2 N·m |
| Wire Stripping Length | Main Circuit 10-12 mm |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 60 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp, (240 V AC) Single Phase 7.5 Hp, (440 ... 480 V AC) Single Phase 15 Hp, (550 ... 600 V AC) Single Phase 15 Hp, (220 ... 240 V AC) Three Phase 15 Hp, (440 ... 480 V AC) Three Phase 30 Hp, (550 ... 600 V AC) Three Phase 30 Hp |
| Tightening Torque UL/CSA | 18 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601448 |
